Isuzu Truck
>>
2006
>>
NPR L4-5.2L DSL Turbo (4HK1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
>>

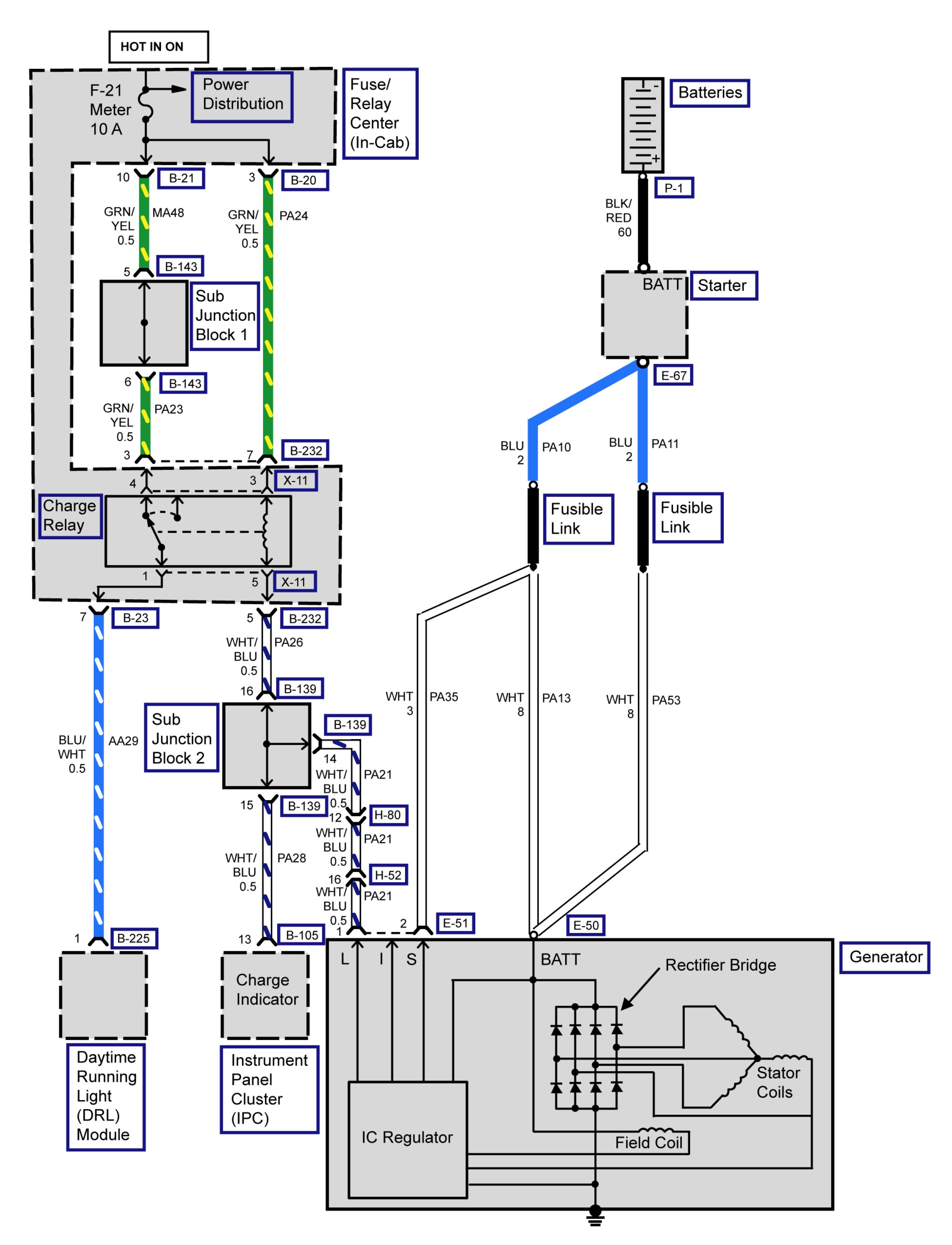

Generator [M/T]
Generator [M/T]
Generator (5.2L) [M/T]
