Home >> Isuzu Truck >> 2006 >> Ascender 4WD V8-5.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Refrigerant Pressure Sensor / Switch >> Locations

Refrigerant Pressure Sensor / Switch: Locations

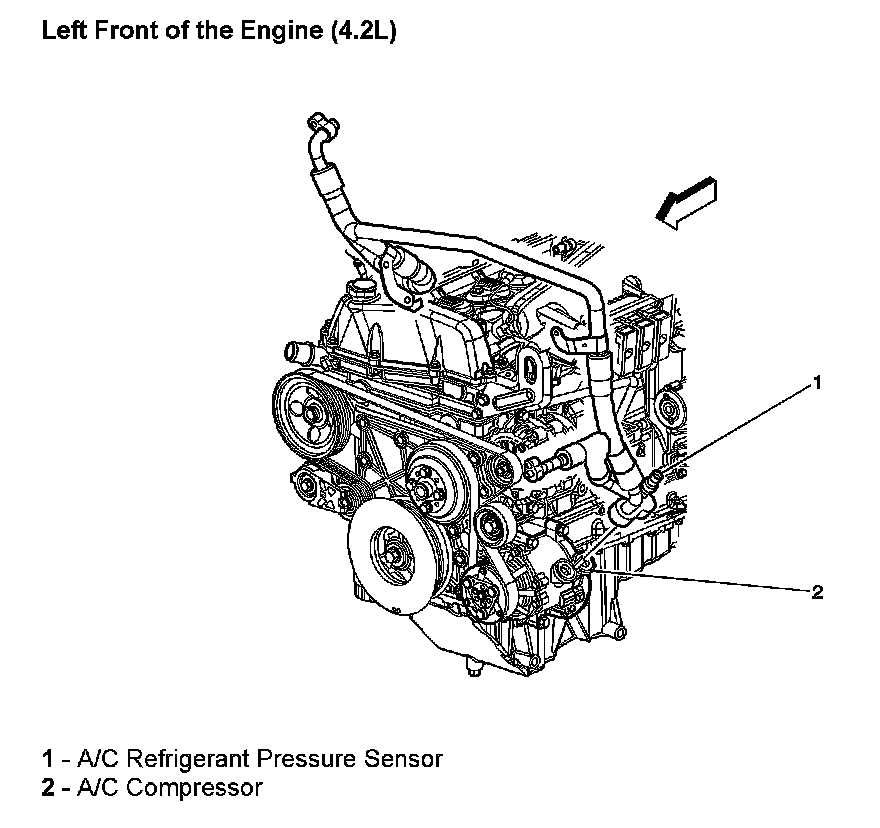

Left Front Of The Engine:

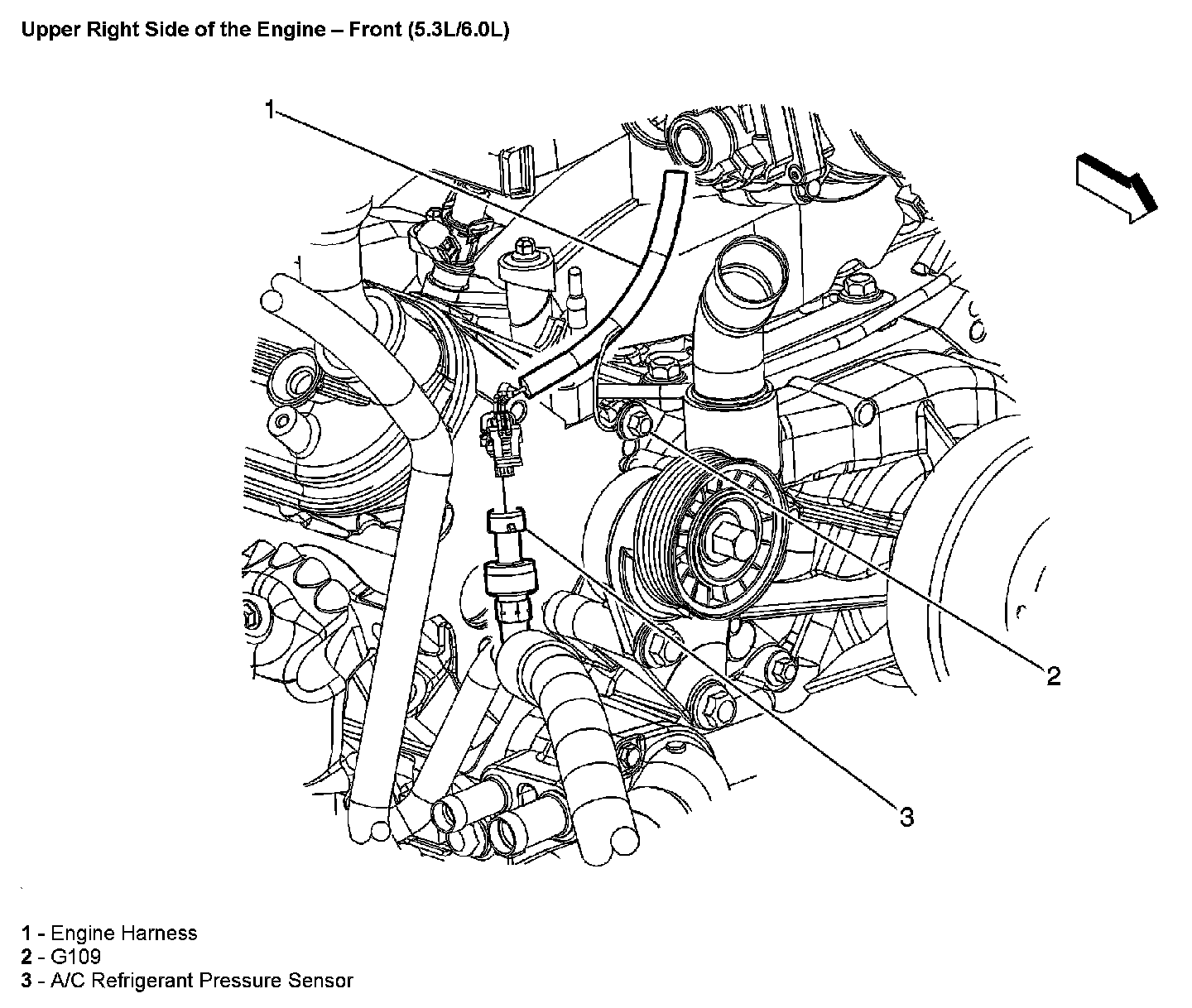

Upper Right Side Of The Engine - Front:
