Home
>>
Isuzu Truck
>>
2006
>>
Ascender 4WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Variable Valve Timing Solenoid
Variable Valve Timing Solenoid

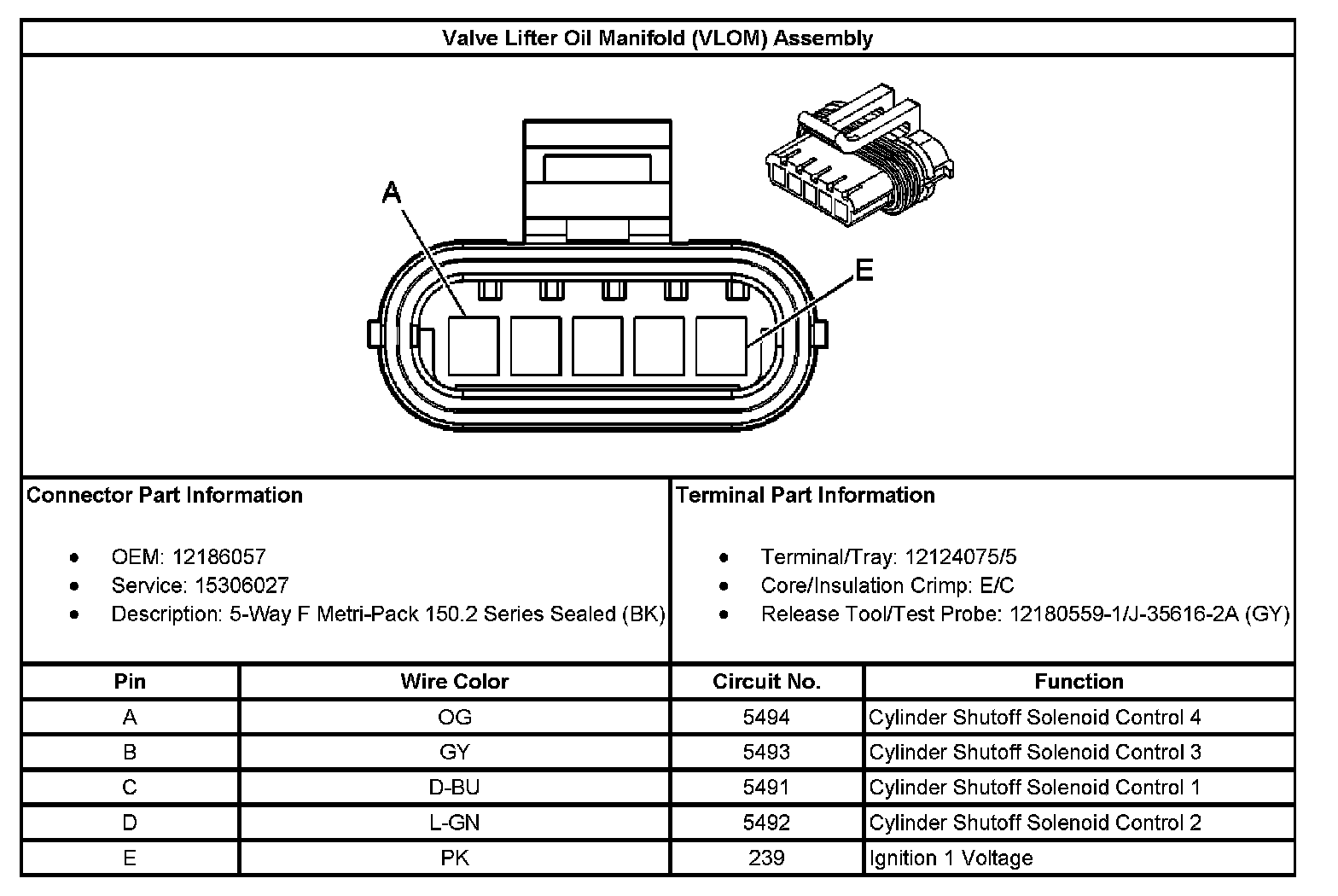

Valve Lifter Oil Manifold (VLOM) Assembly:
