Propshaft Speed Sensor - Front

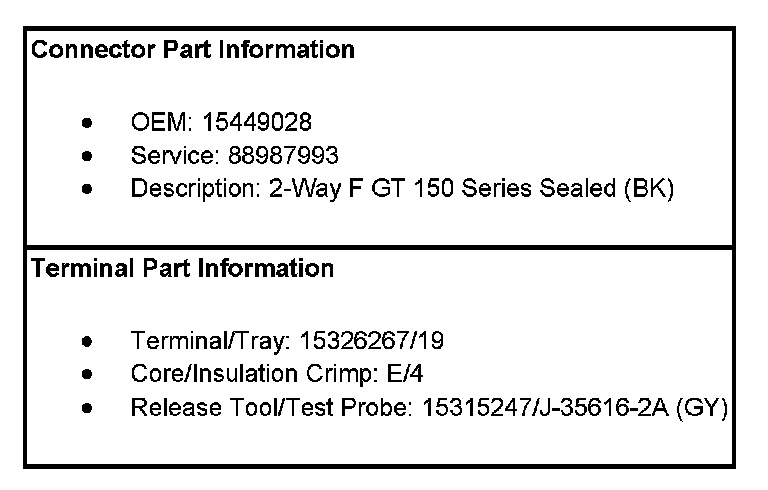

Transfer Case Control Connector End Views

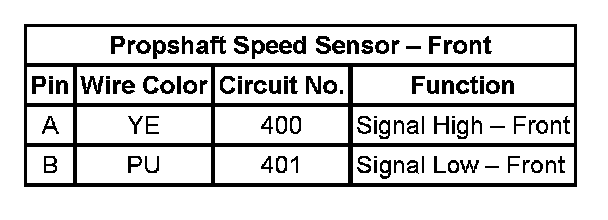

Propshaft Speed Sensor - Front:
