Isuzu Truck
>>
2006
>>
Ascender 4WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Knock Sensor
Knock Sensor
Knock Sensor (KS) 1 - Left:

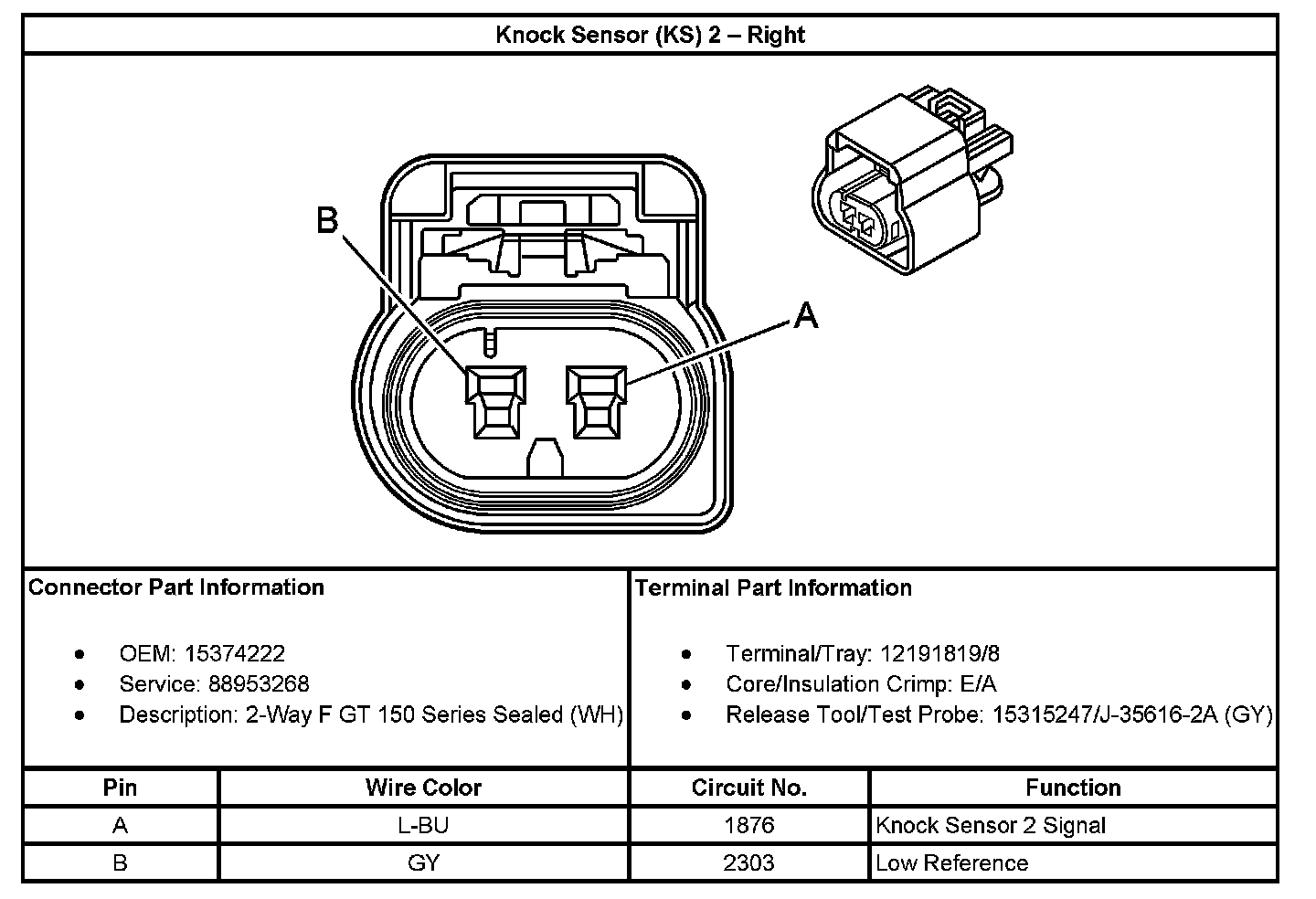

Knock Sensor (KS) 2 - Right:

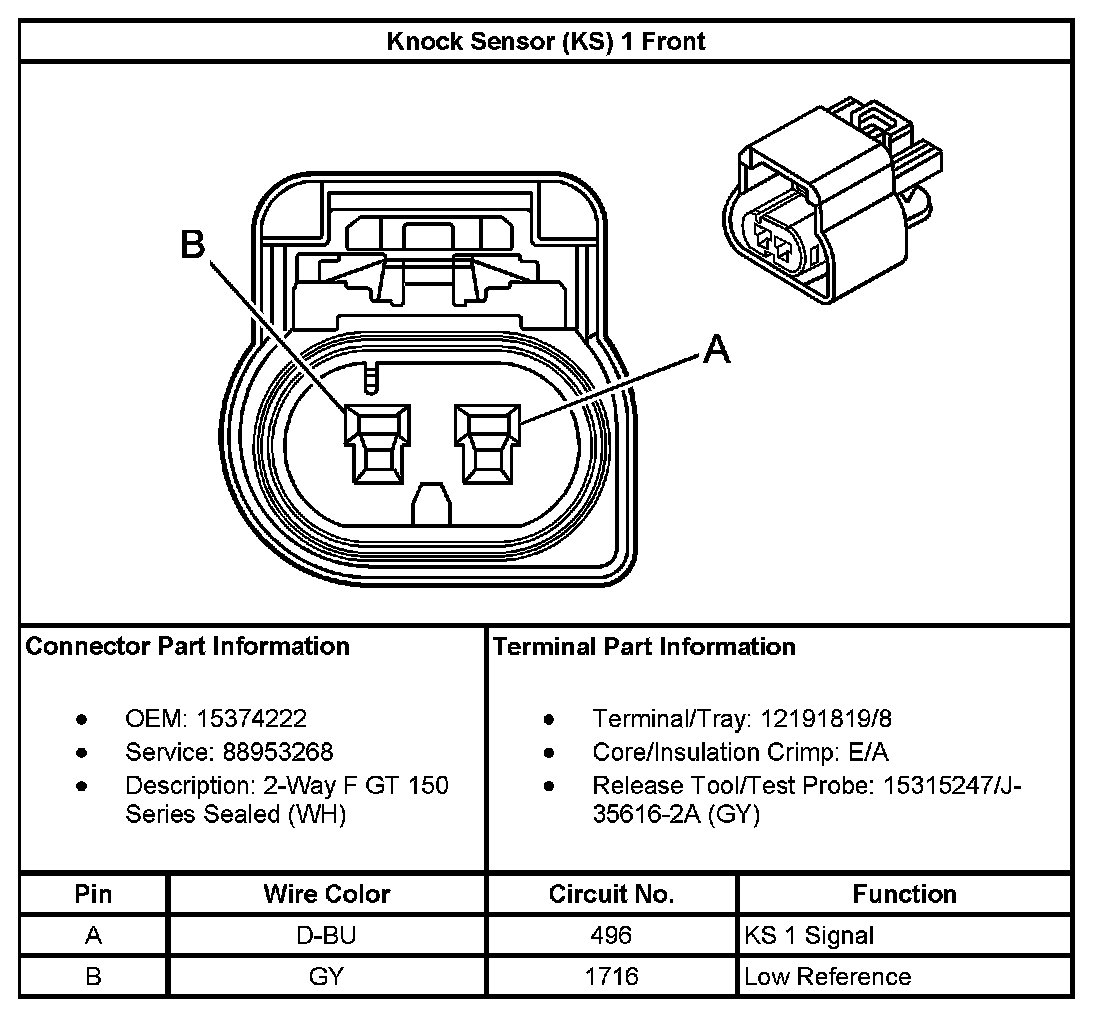

Knock Sensor (KS) 1 Front:

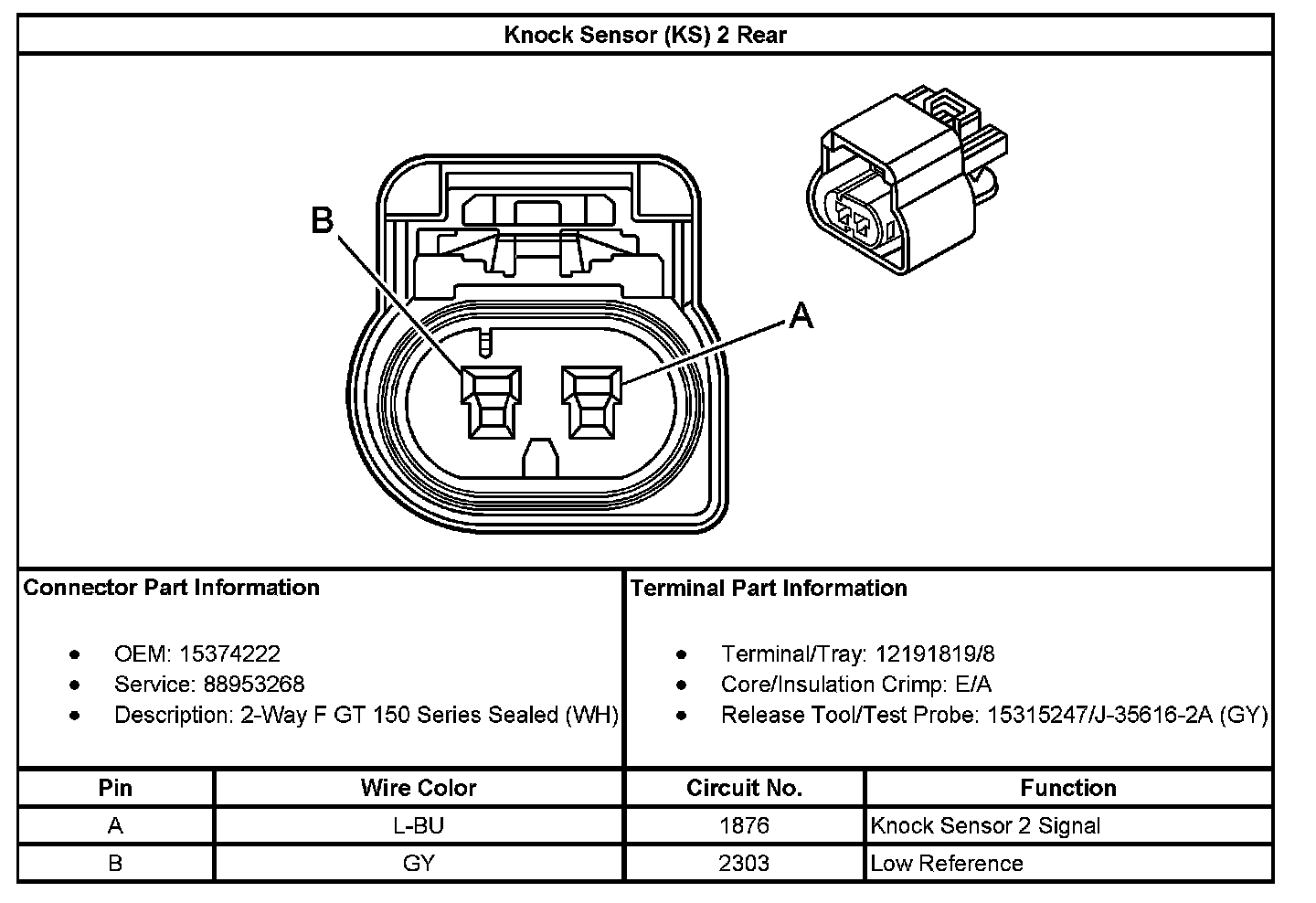

Knock Sensor (KS) 2 Rear:
