Isuzu Truck
>>
2006
>>
Ascender 4WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
Control Module HVAC
Blower Motor Control Module:

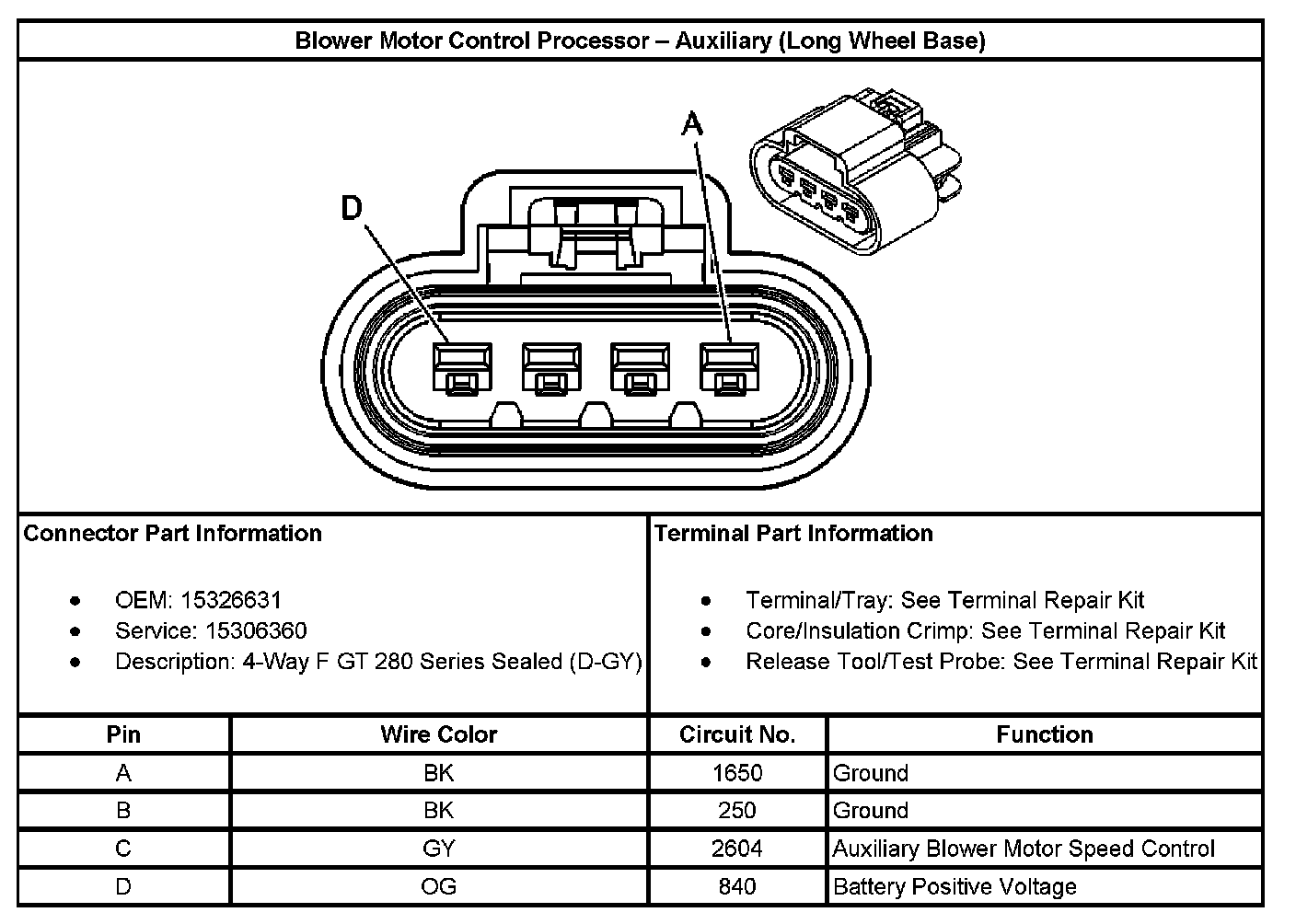

Blower Motor Control Processor - Auxiliary (Long Wheel Base):
