Isuzu Truck
>>
2006
>>
Ascender 4WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Speed Sensor, A/T
Transmission Speed Sensor, A/T

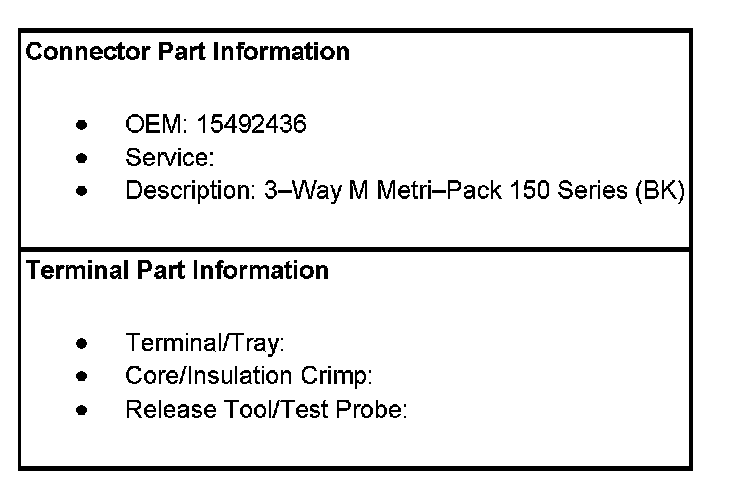

Automatic Transmission Inline 20-Way Connector End View

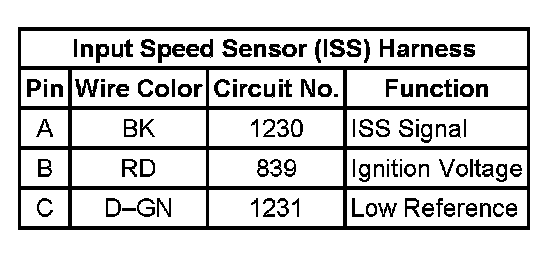

Input Speed Sensor (ISS) Harness:
