Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

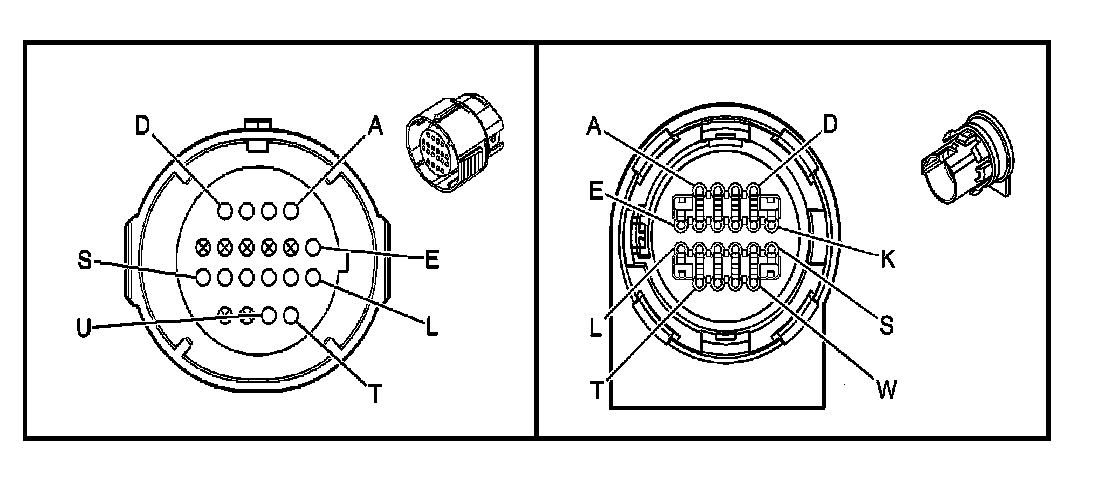

Automatic Transmission Inline 20-Way Connector End View

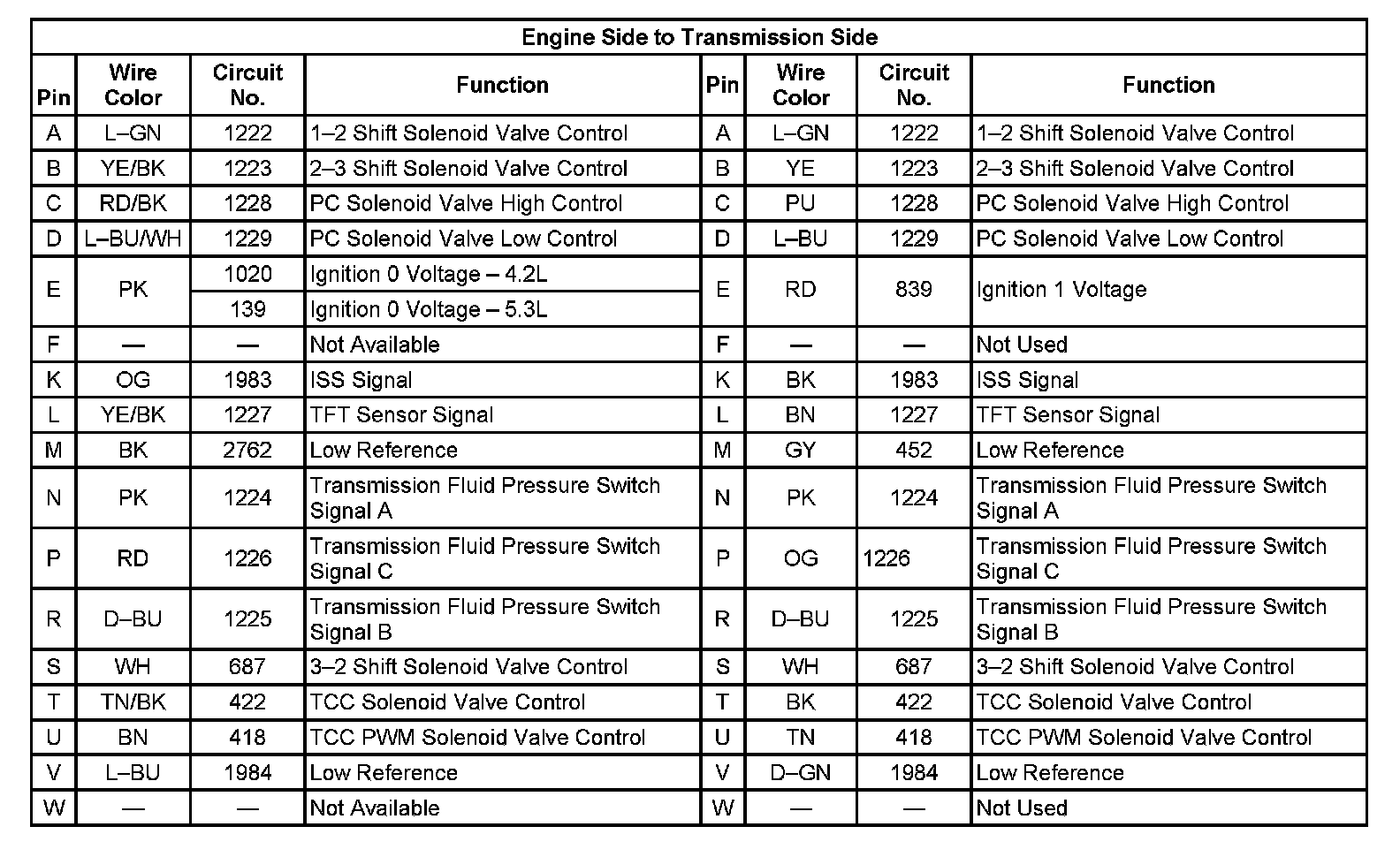

Engine Side to Transmission Side:
