Home
>>
Isuzu Truck
>>
2006
>>
Ascender 4WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Shift Interlock Solenoid
Shift Interlock Solenoid

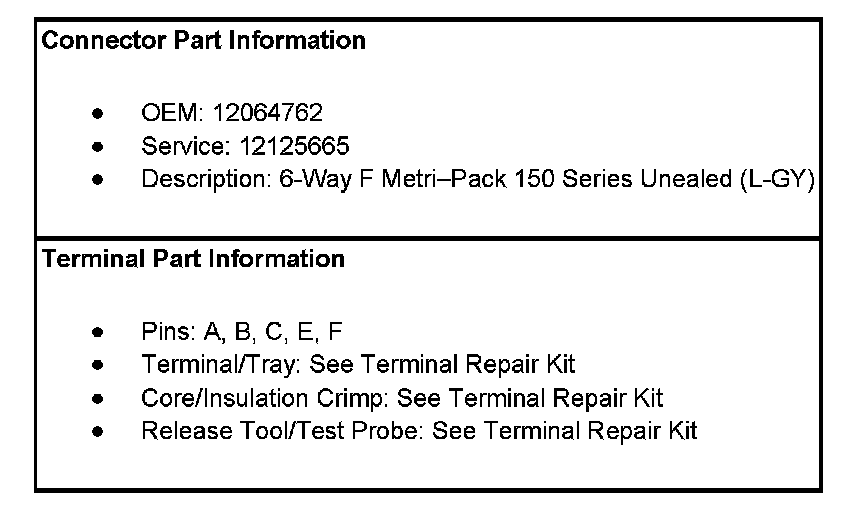

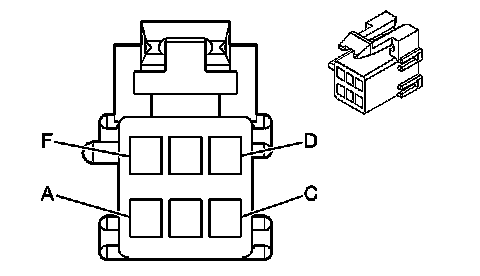

Shift Lock Control Connector End Views
Automatic Transmission Shift Lock Actuator:
