Four Wheel Drive Selector Switch: Diagrams

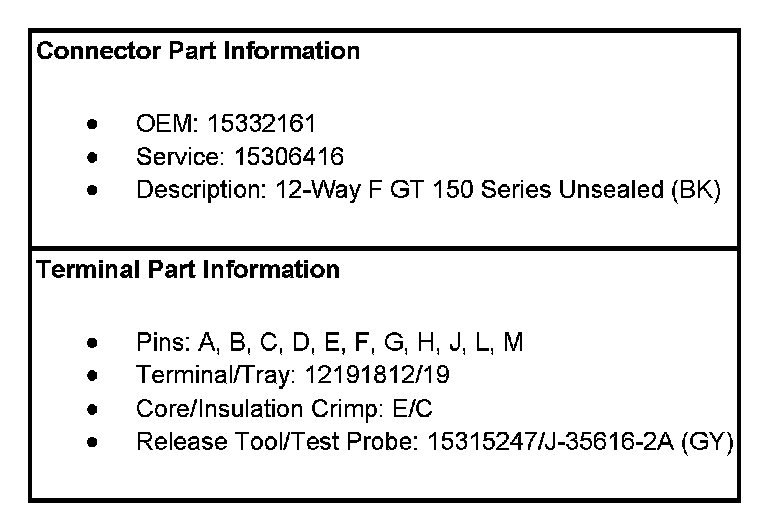

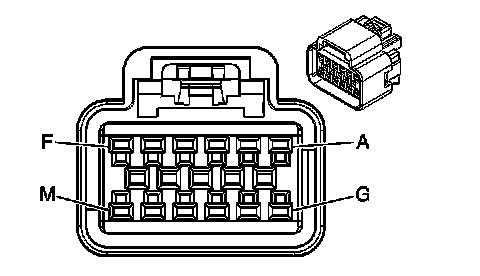

Transfer Case Control Connector End Views

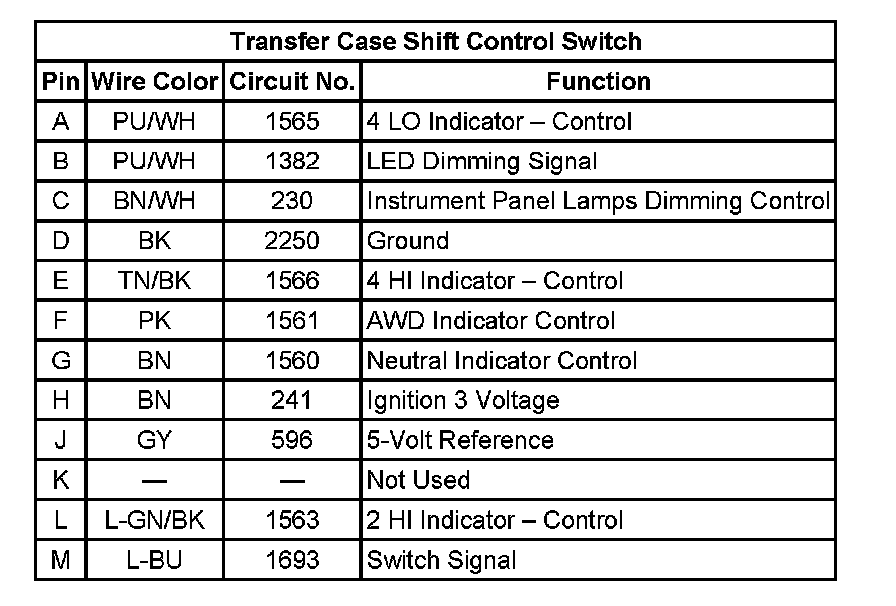

Transfer Case Shift Control Switch:
