Shift Interlock: Locations

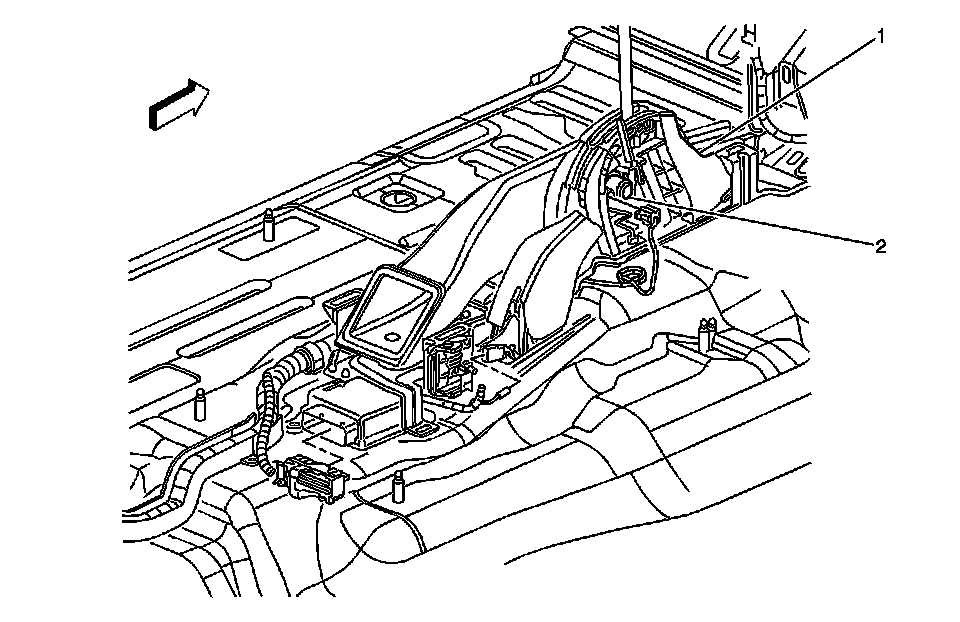

Shift Lock Control Component Views

Automatic Transmission Shift Lock Actuator:

1 - Lower Console
2 - Automatic Transmission Shift Lock Actuator
