Air Cleaner Resonator Outlet Duct Replacement

AIR CLEANER RESONATOR OUTLET DUCT REPLACEMENT

REMOVAL PROCEDURE

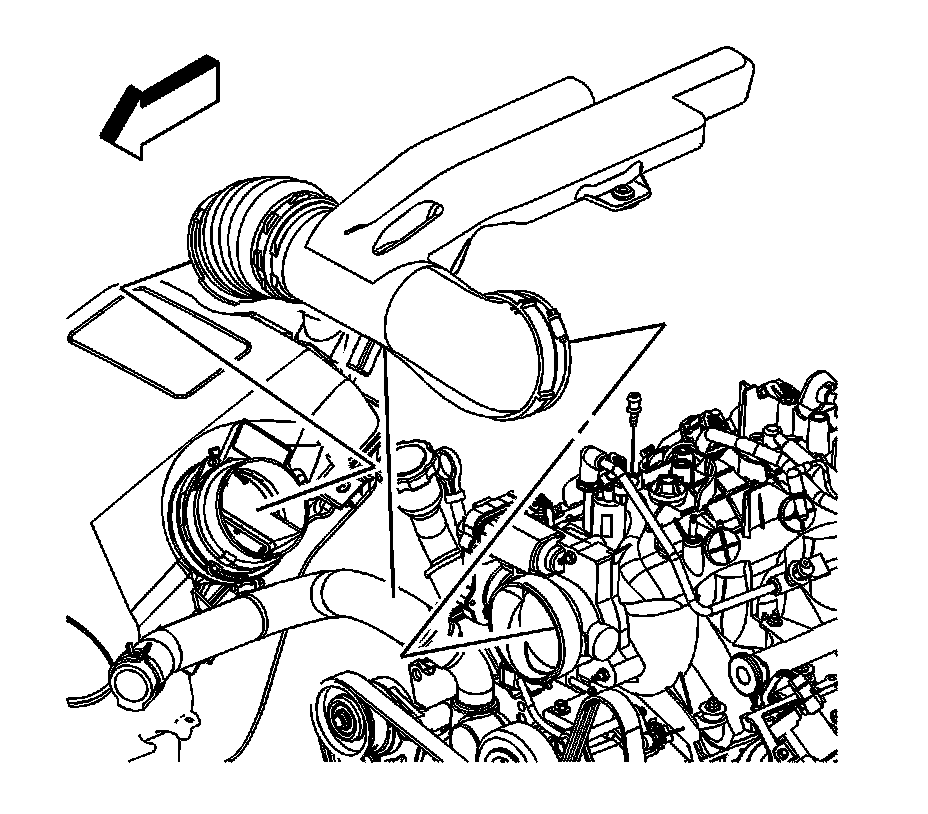

1. Disconnect the positive crankcase ventilation (PCV) fresh air tube (2) from the air cleaner resonator outlet duct (1).




2. Loosen the air cleaner outlet duct clamps at the mass air flow(MAF)/intake air temperature (IAT) sensor, and the throttle body.
3. Grasp the air cleaner outlet duct near the stud and firmly lift up, disengaging the duct from the stud.

INSTALLATION PROCEDURE




1. Install the air cleaner outlet duct to the MAF/IAT sensor and the throttle body.
2. Ensure that the air cleaner duct flange is seated over the stud and firmly push down, securing the duct the stud.
3. Tighten the air cleaner outlet duct clamps.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the clamps to 7 N.m (62 lb in).




4. Connect the PCV fresh air tube (2) to the air cleaner resonator outlet duct (1).
