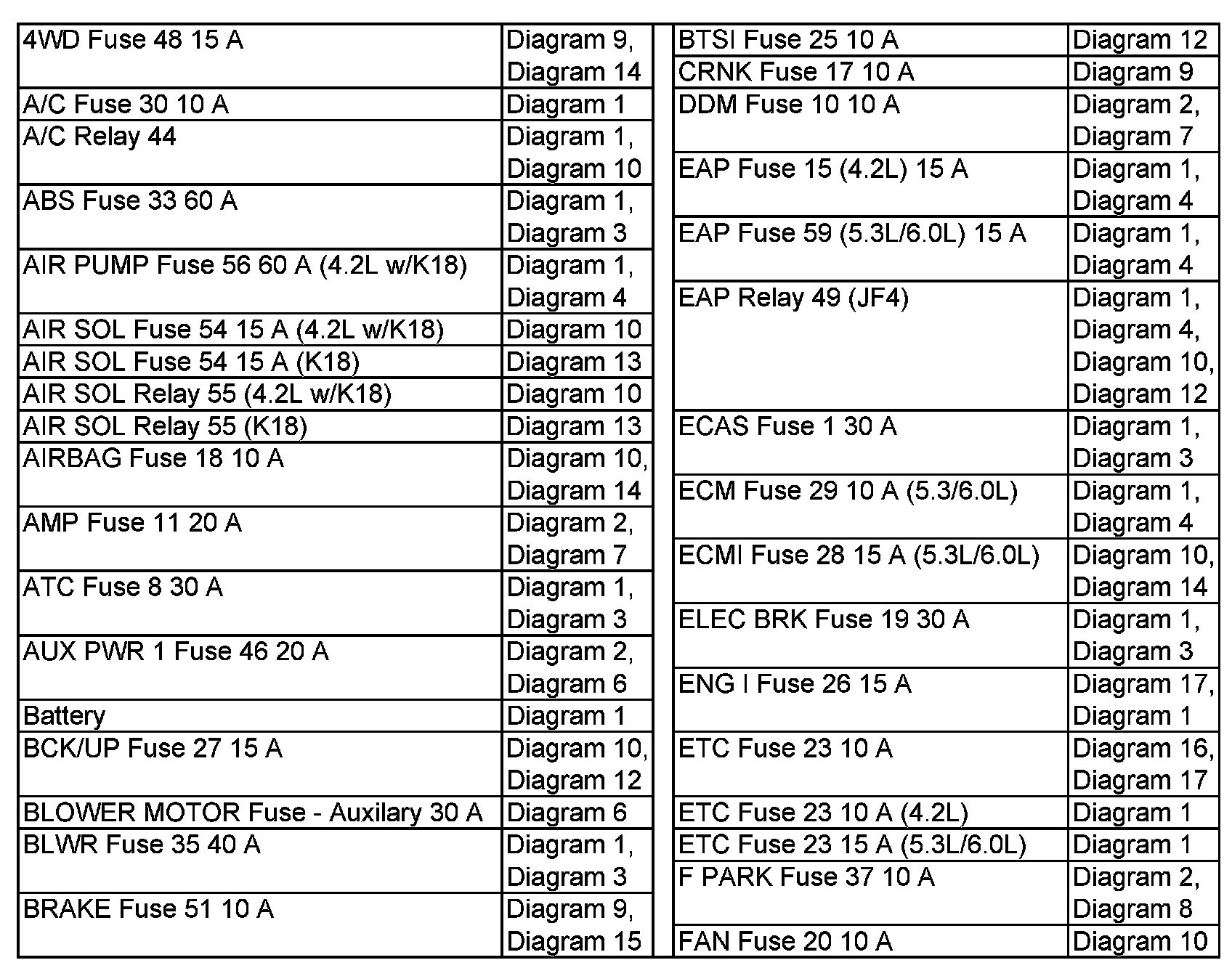

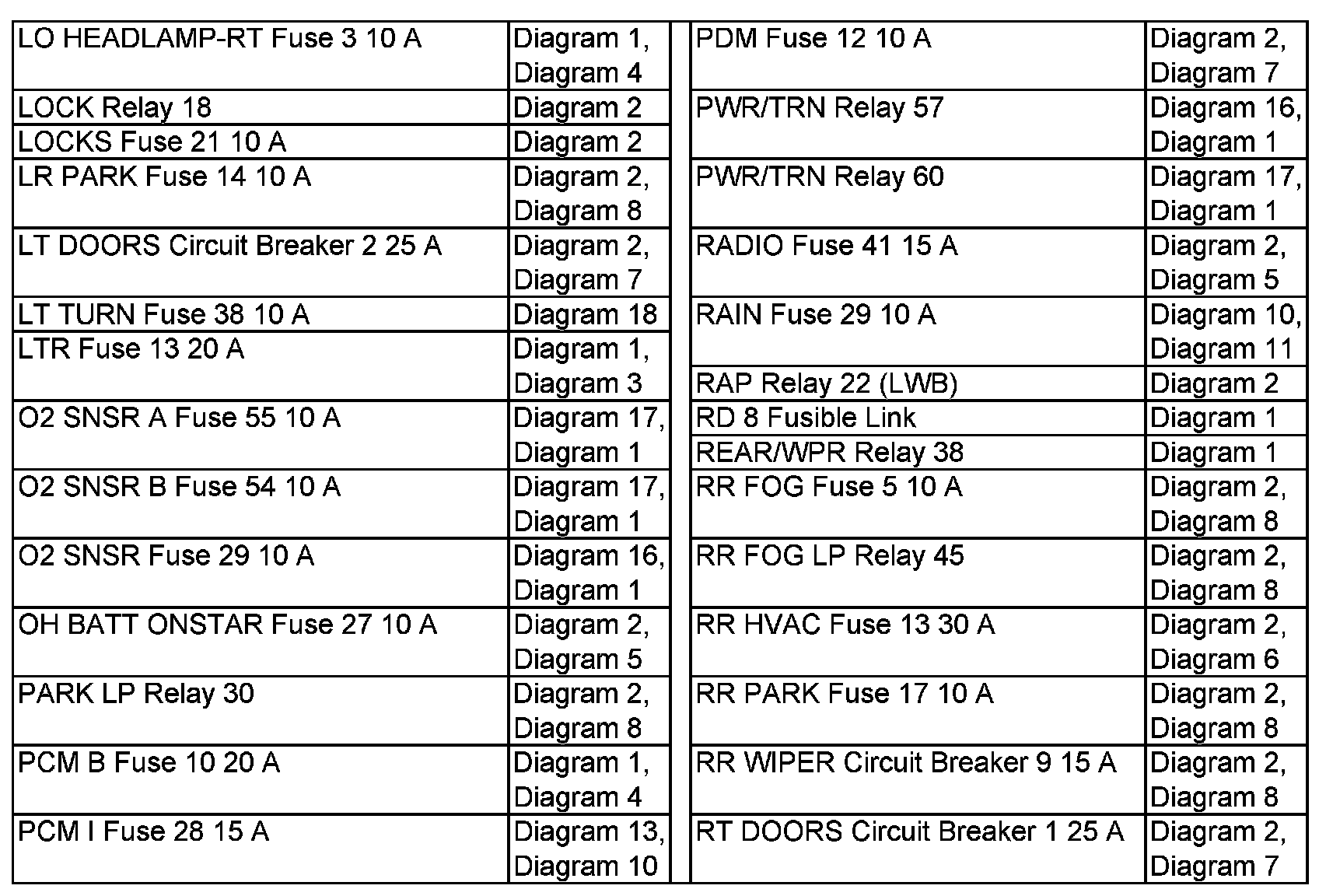

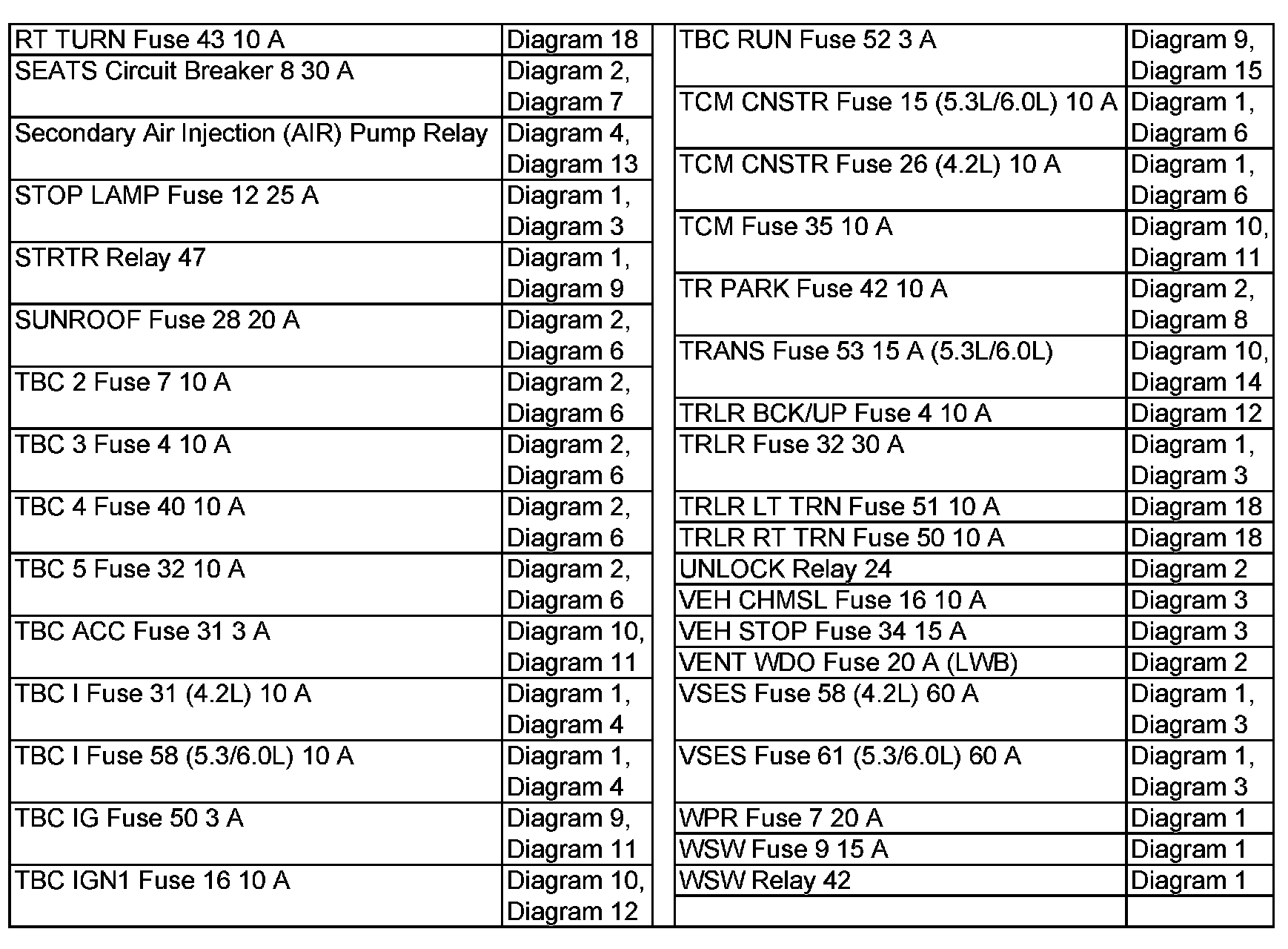

Wiring Diagram Index

4WD Fuse-FAN Fuse:



FAN Relay-LO HEADLAMP:



LO HEADLAMP-RT DOORS:



RT TURN-WSW Relay:
