Home >> Isuzu Truck >> 2006 >> Ascender 2WD V8-5.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Auxiliary Power Outlet >> Locations >> Behind The Center Of The I/P

Behind The Center Of The I/P

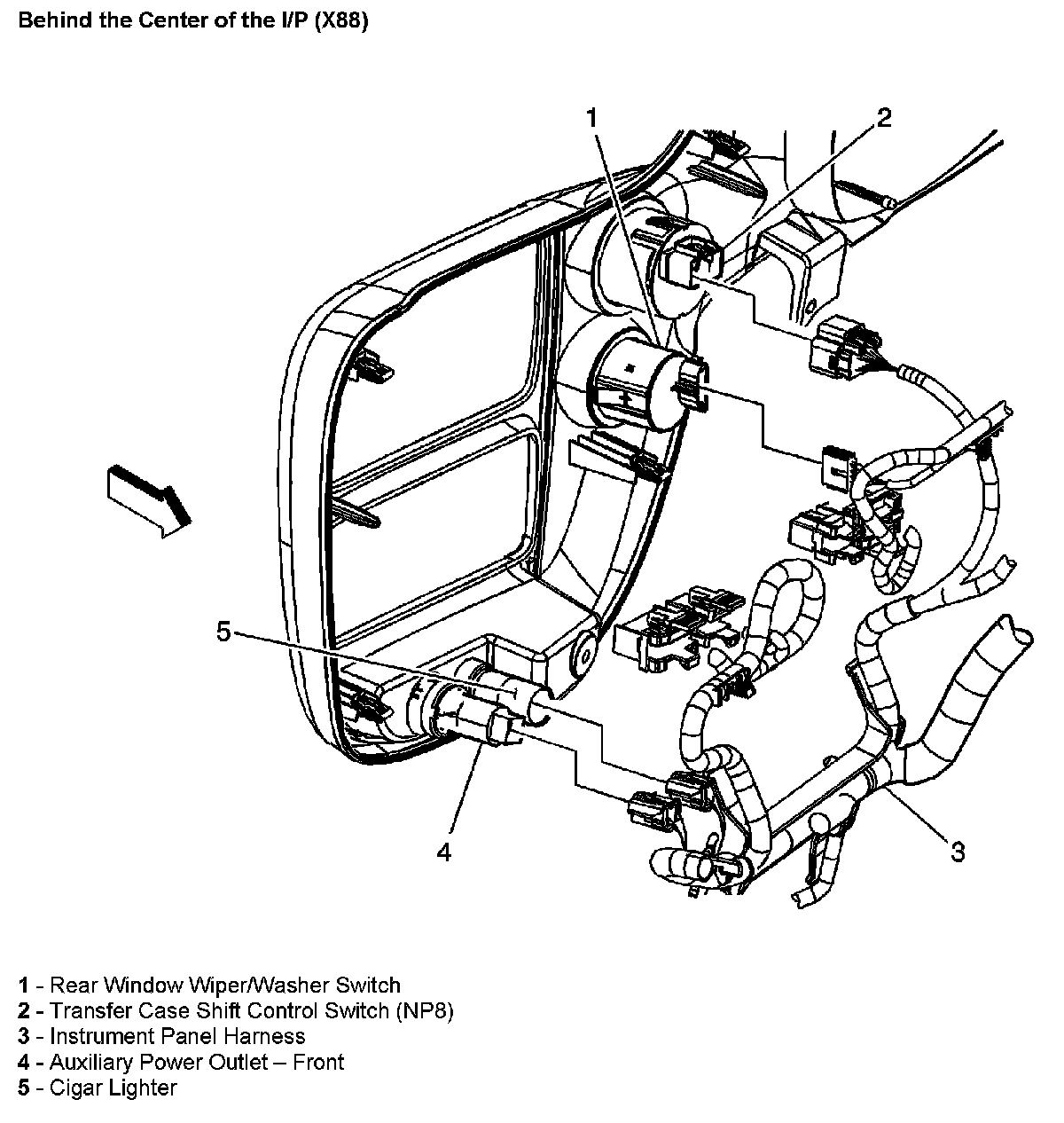

Behind The Center Of The I/P (With RPO Code X88):

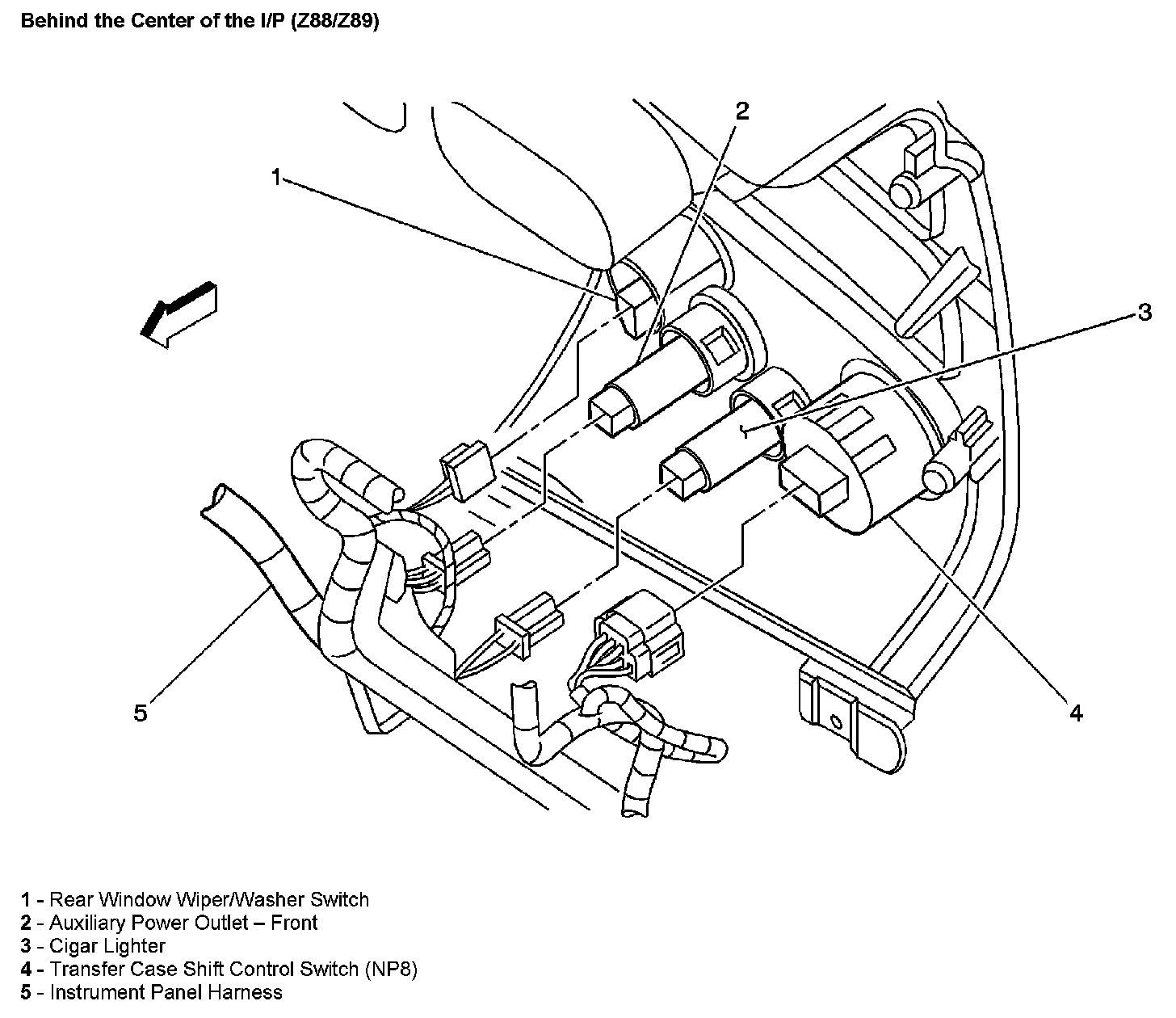

Behind The Center Of The I/P (With RPO Code Z88/Z89):

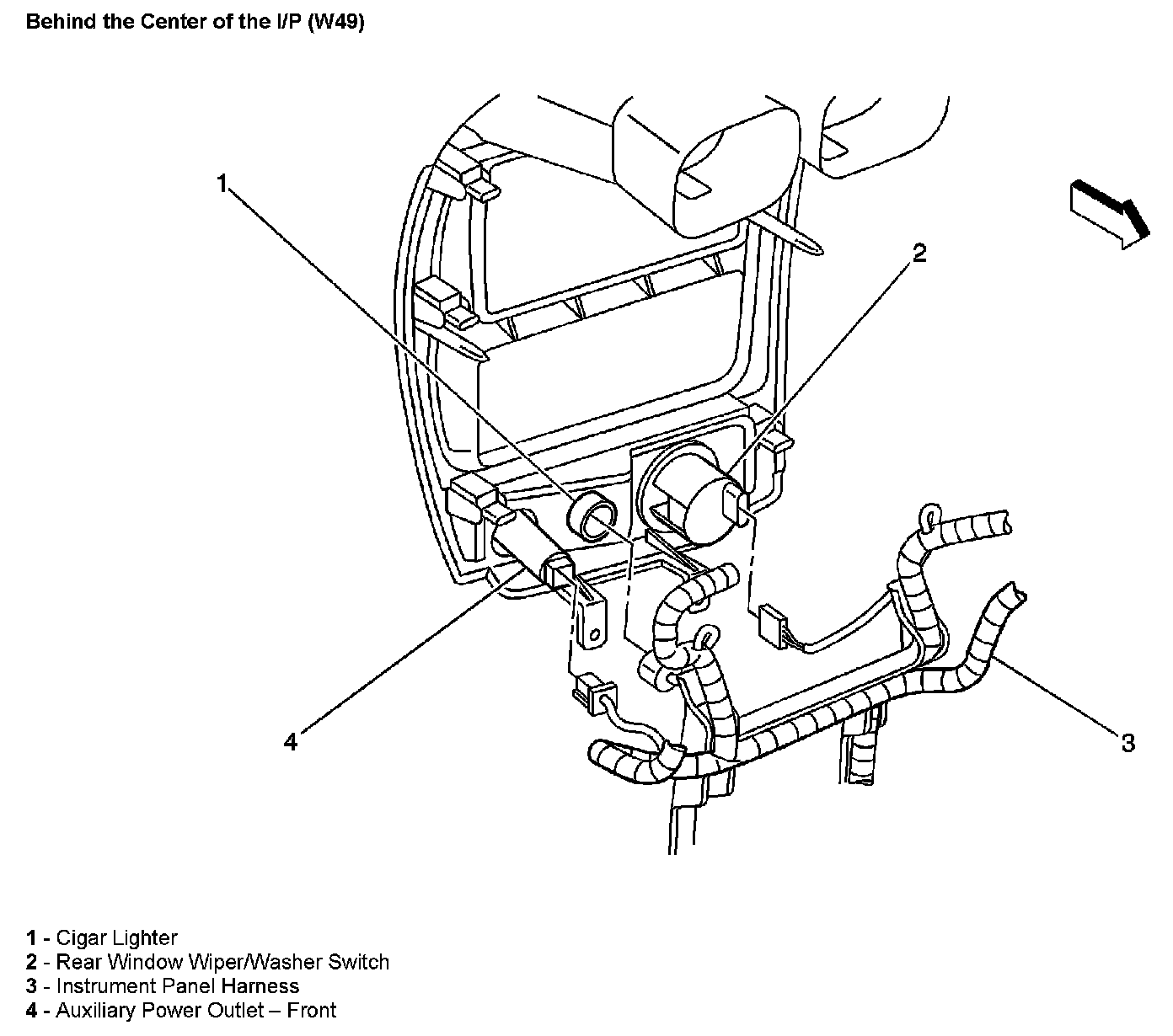

Behind The Center Of The I/P (With RPO Code W49):
