Heating Performance Diagnosis
>>
Heating Performance Diagnostic (Front System Only)
Heating Performance Diagnostic (Front System Only)

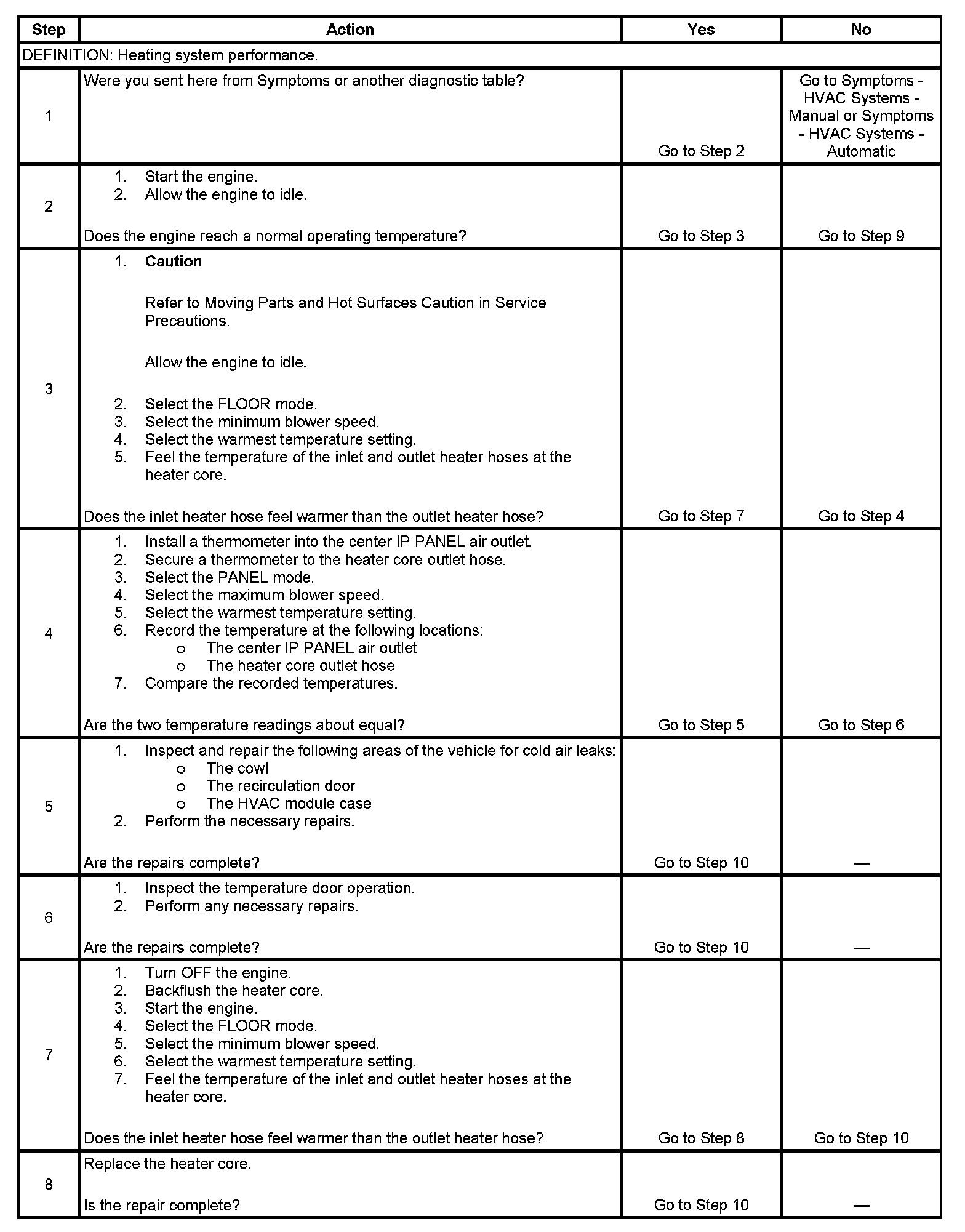

Step 1 - Step 8:

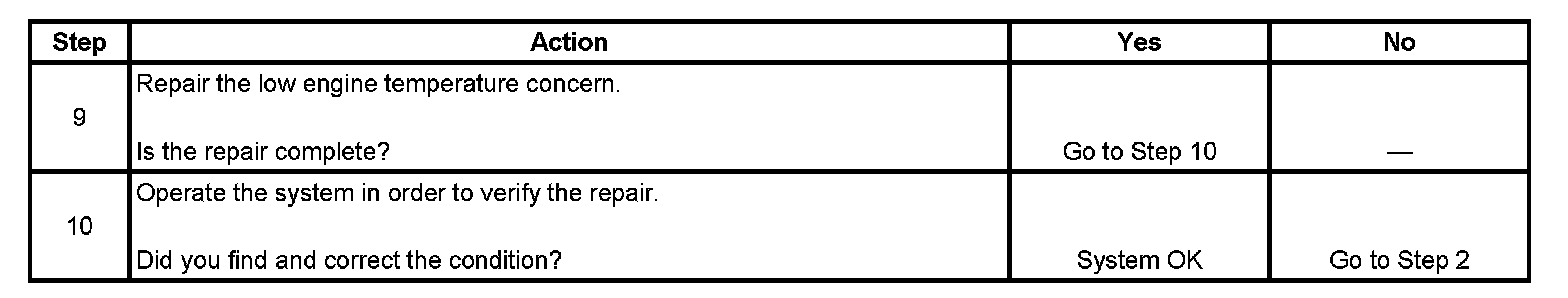

Step 9 - Step 10:
