Heating Performance Diagnosis
>>
Heating Performance Diagnostic (Auxiliary System)
Heating Performance Diagnostic (Auxiliary System)

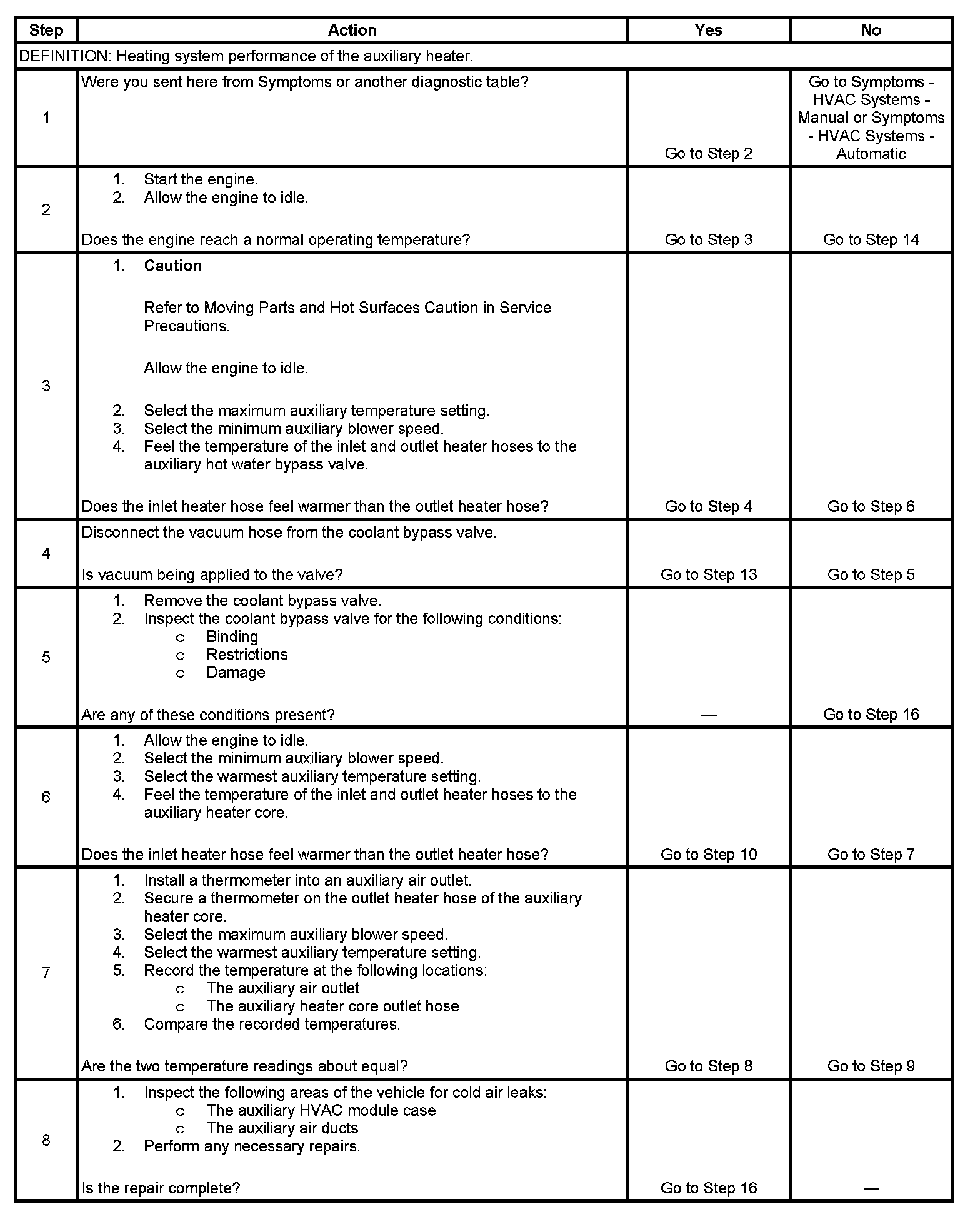

Step 1 - Step 8:

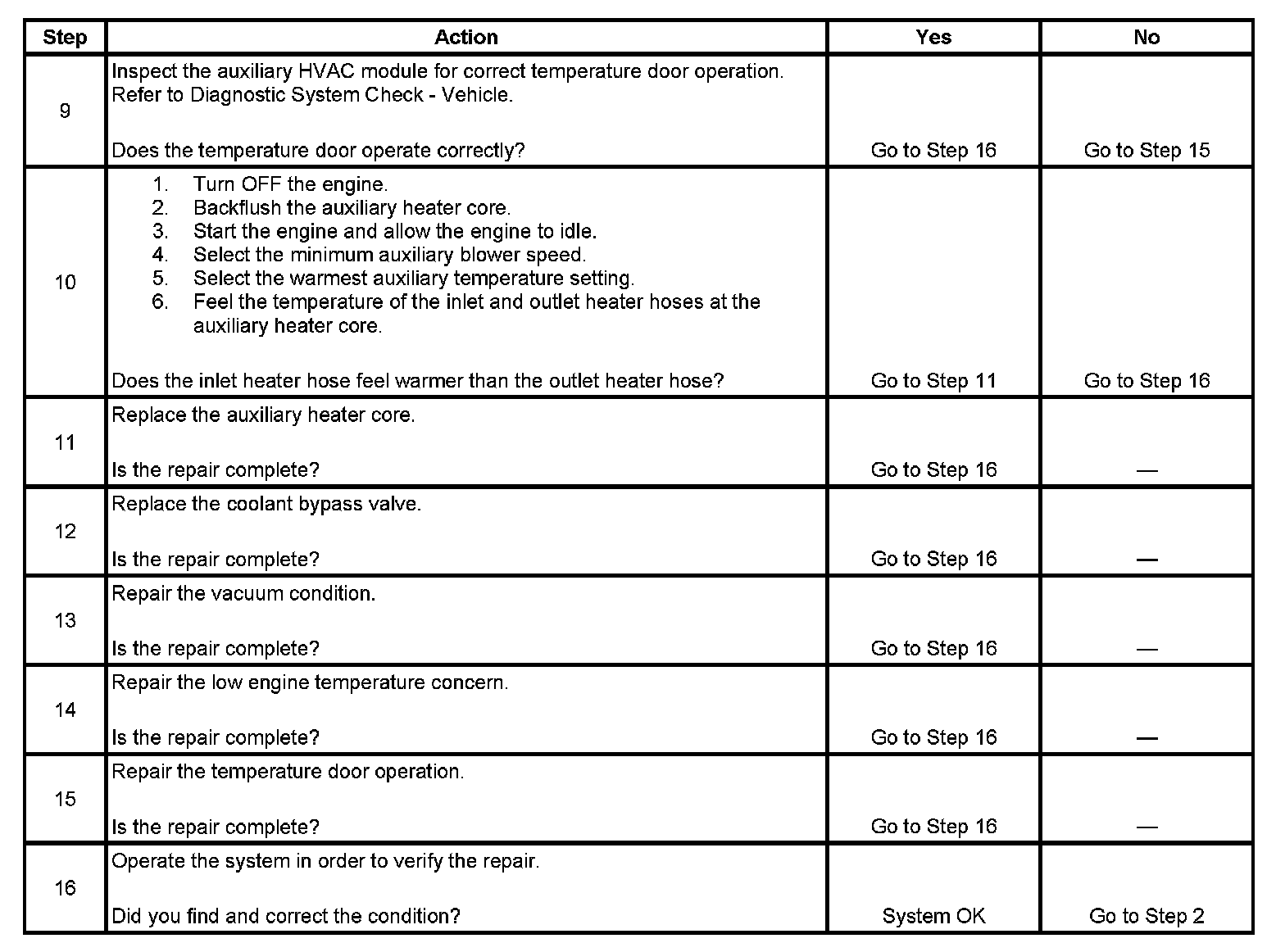

Step 9 - Step 16:
