Isuzu Truck
>>
2006
>>
Ascender 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case Actuator
>>
NVG 226-NP8 - Transfer Case
>>
Transfer Case Encoder Motor

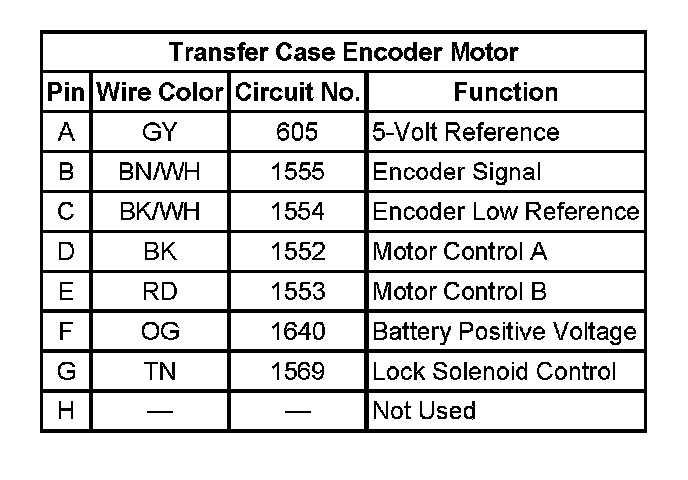

Transfer Case Encoder Motor

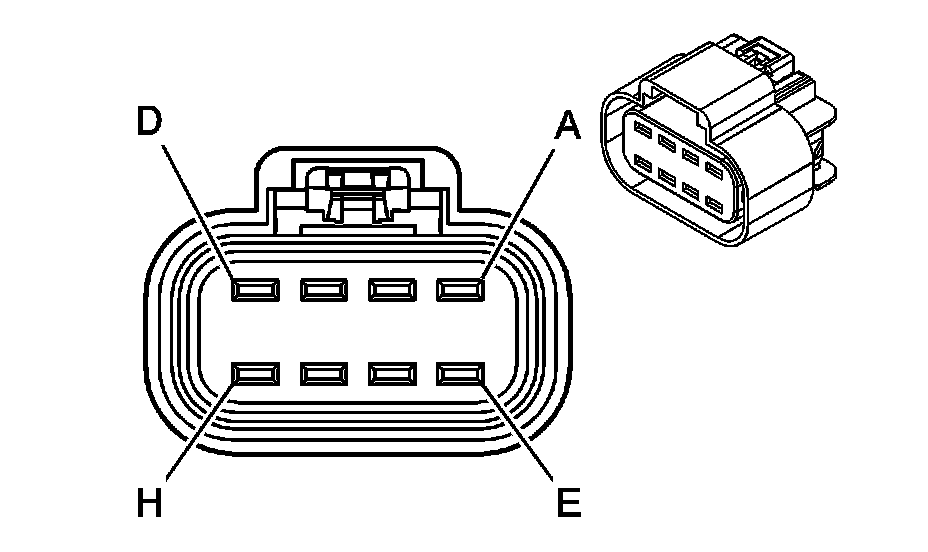

Transfer Case Control Connector End Views

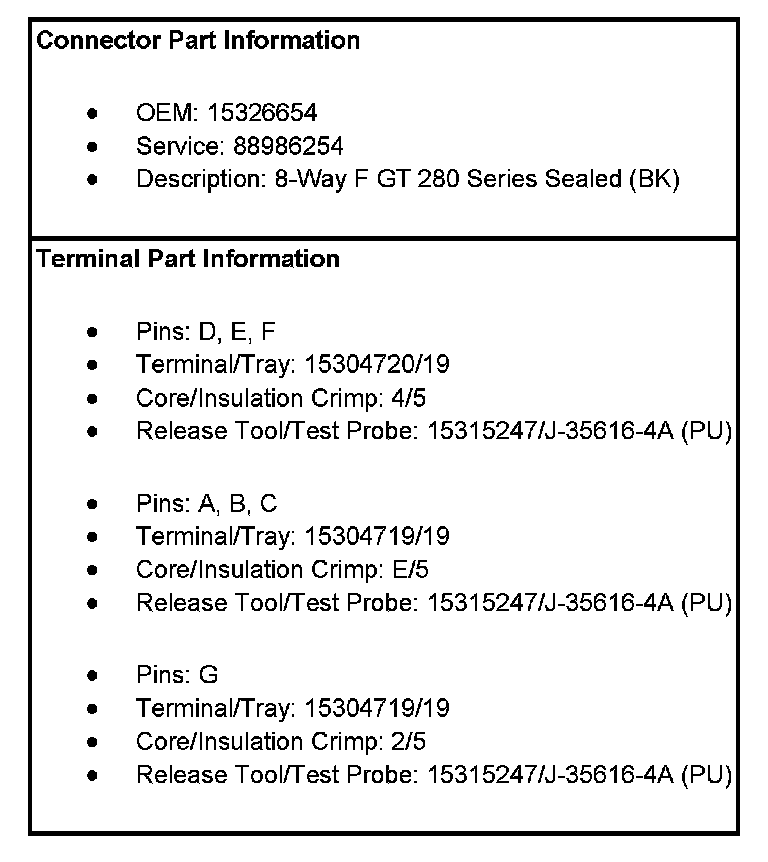

Transfer Case Encoder Motor:
