Home >> Isuzu Truck >> 2006 >> Ascender 2WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Lamp >> Park Lamp

Park Lamp

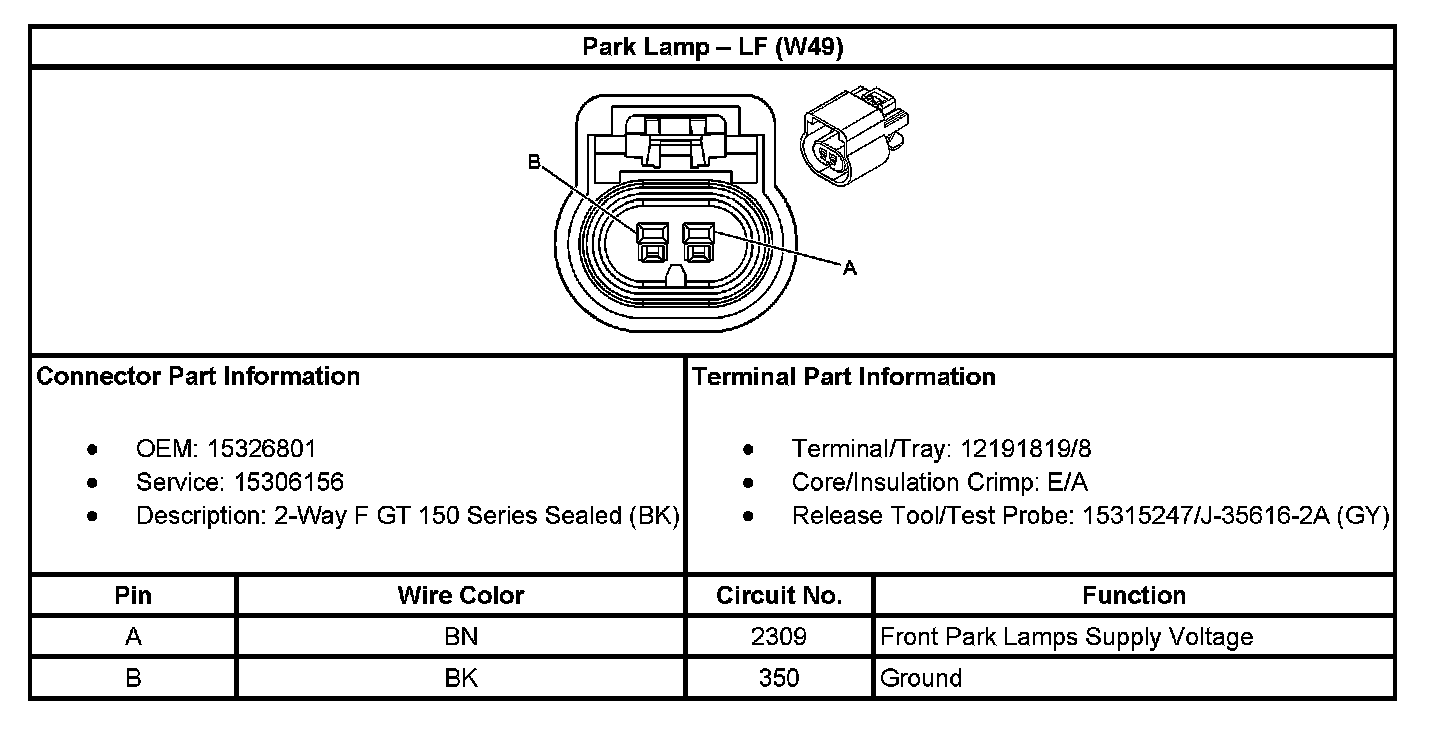

Park Lamp - LF (With RPO Code W49):

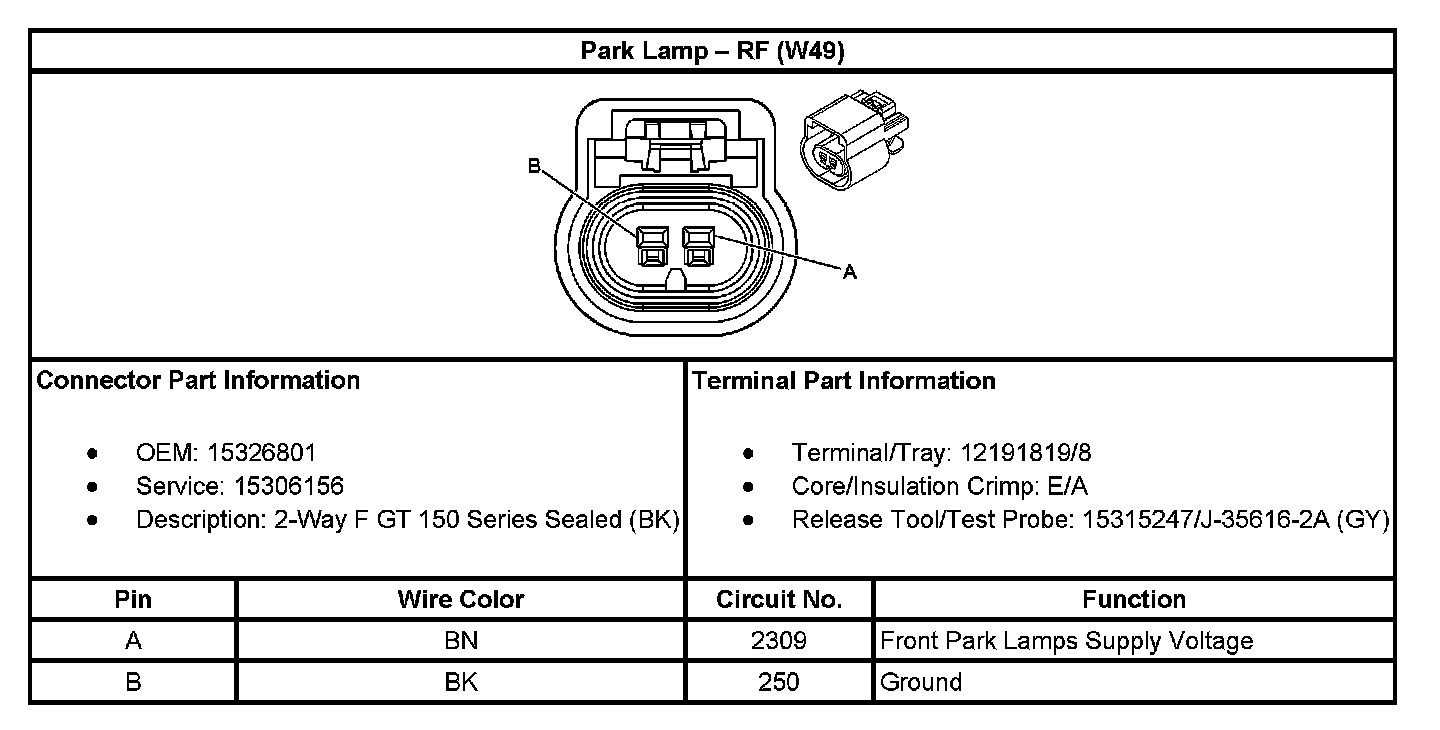

Park Lamp - RF (With RPO Code W49):
