Isuzu Truck
>>
2006
>>
Ascender 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
SP200 - SP299
>>
SP201
SP201

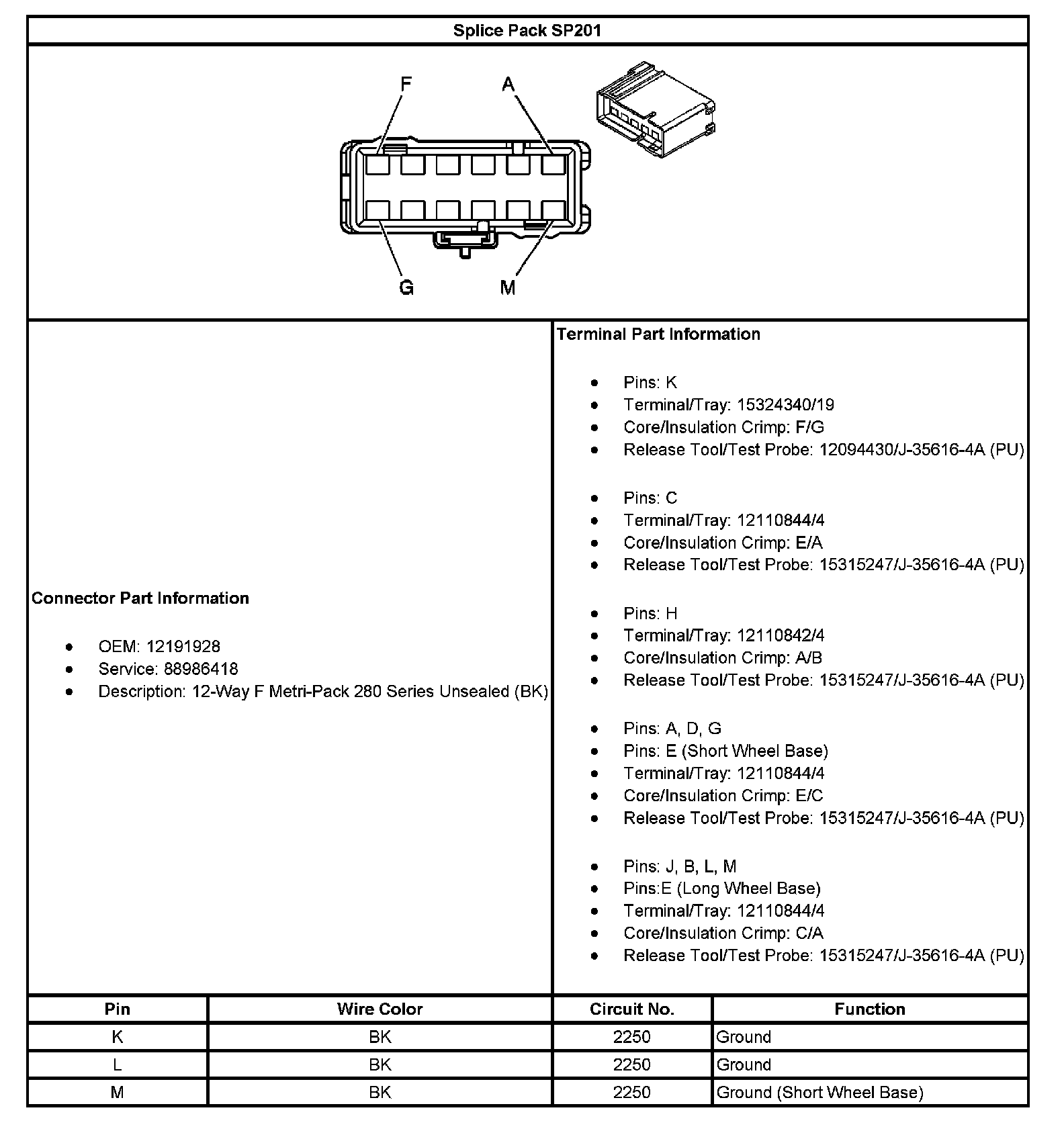

Splice Pack SP201 (Part 1):

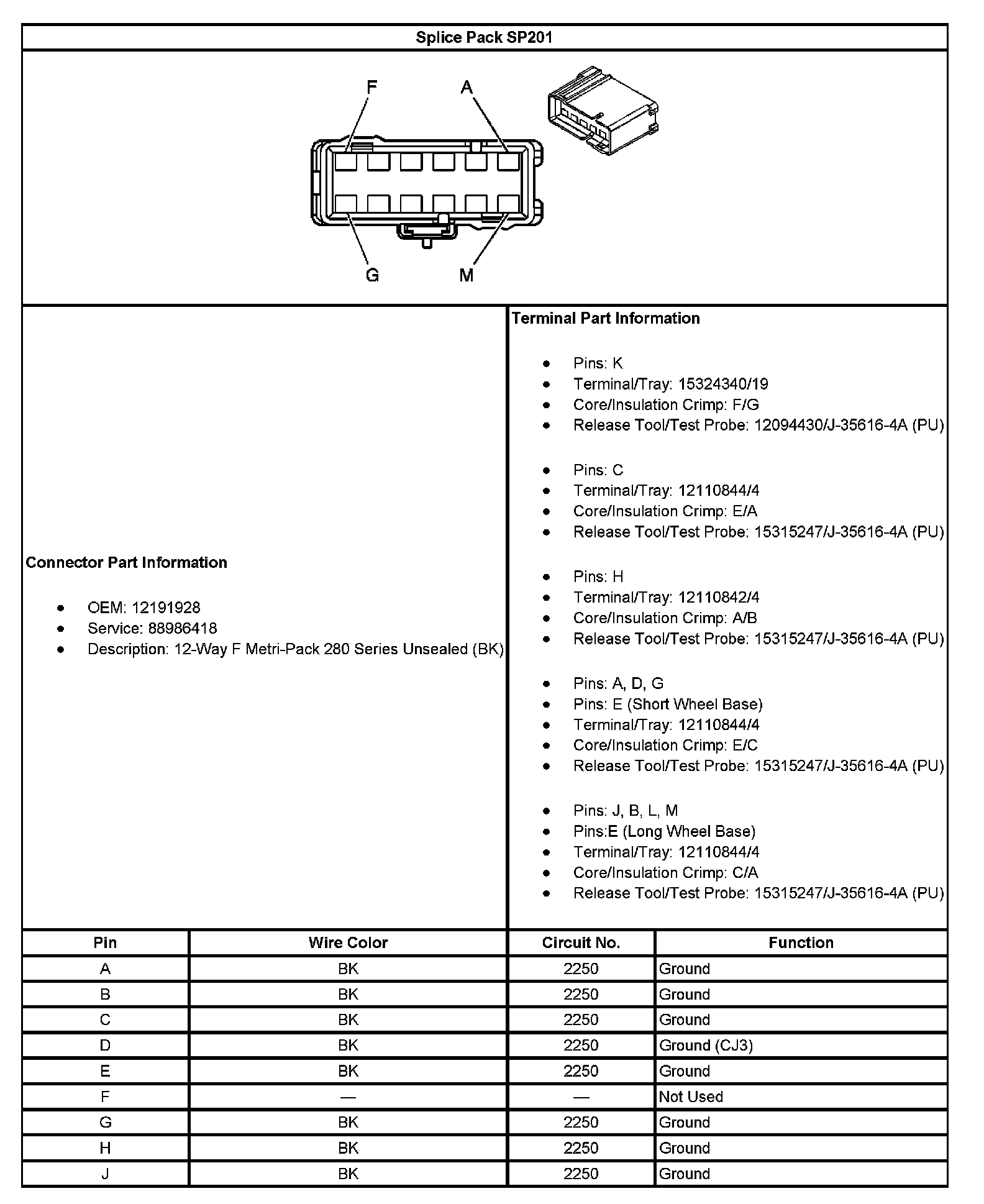

Splice Pack SP201 (Part 2):
