Isuzu Truck
>>
2006
>>
Ascender 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C400 - C499
C400 - C499

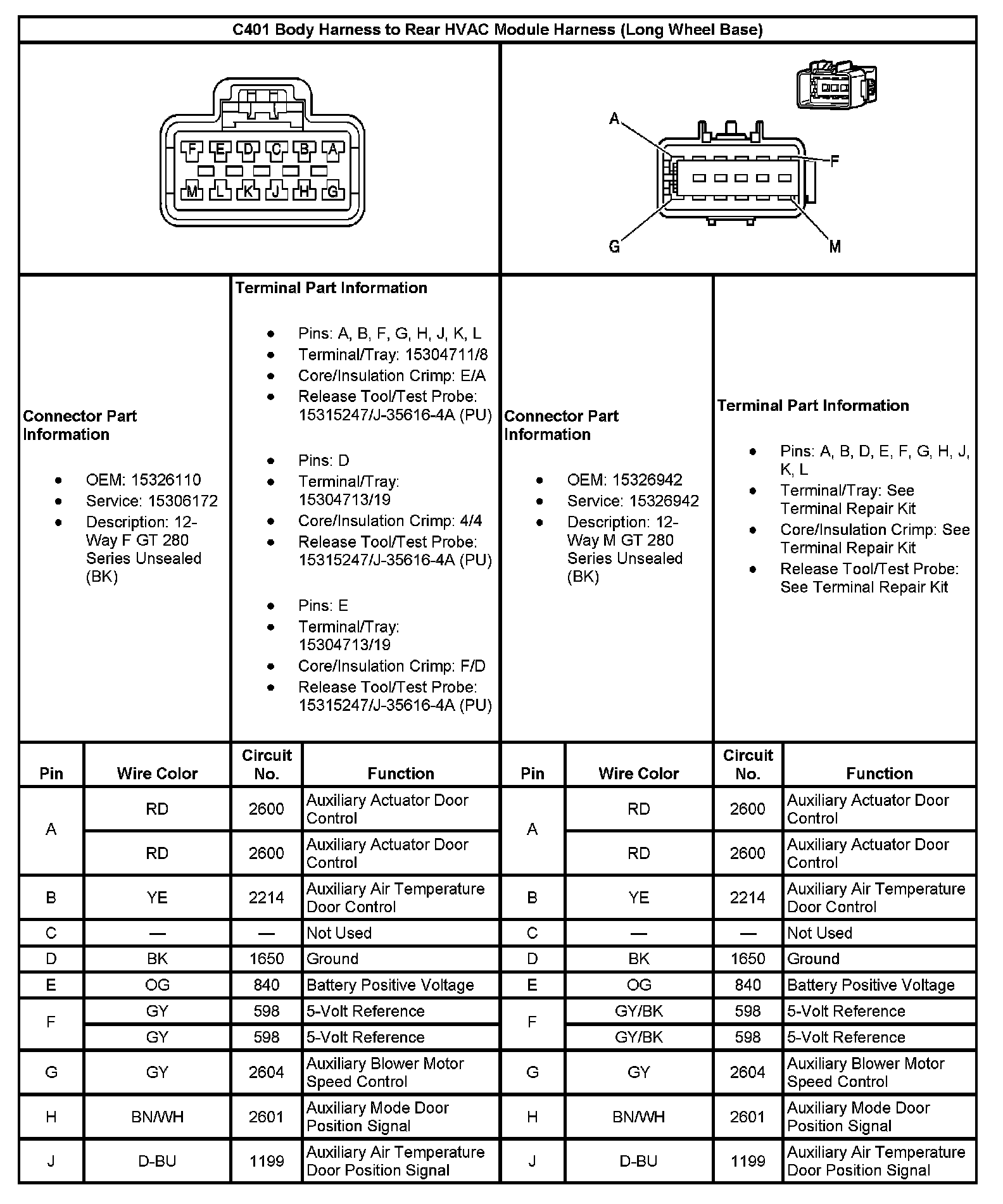

C401 Body Harness To Rear HVAC Module Harness (Long Wheel Base):

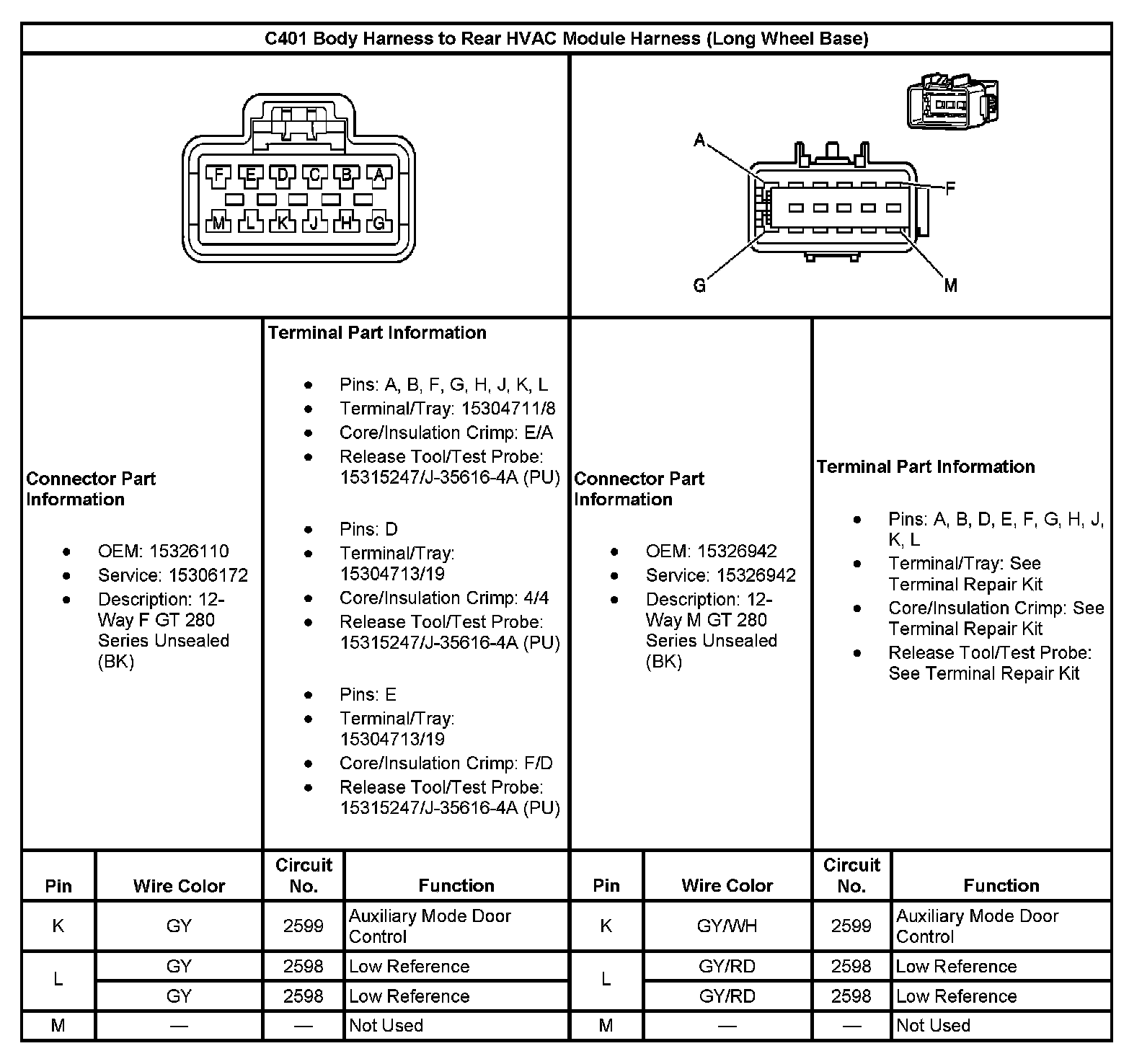

C401 Body Harness To Rear HVAC Module Harness (Long Wheel Base):
