C307
C307

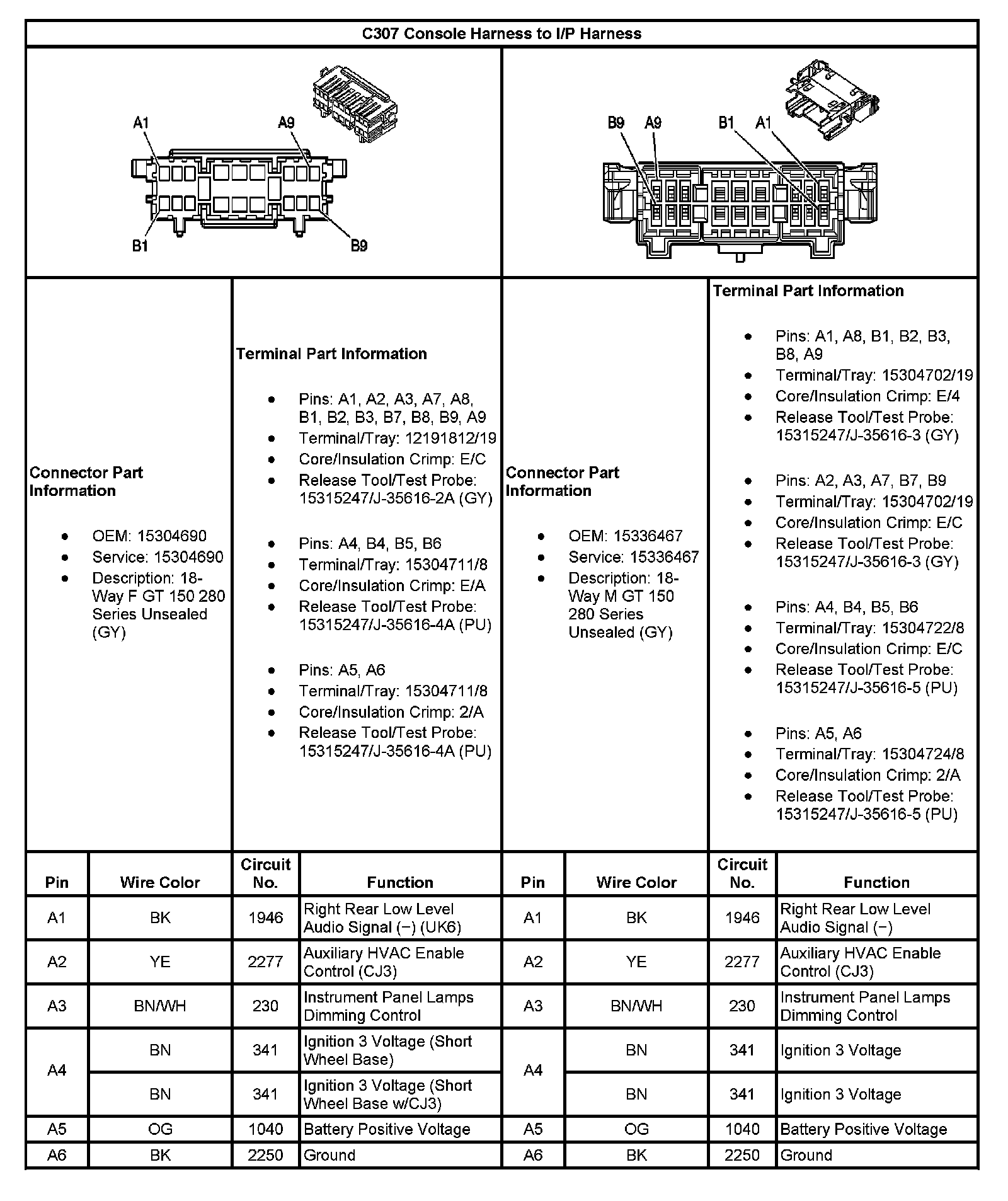

C307 Console Harness To I/P Harness (Part 1):

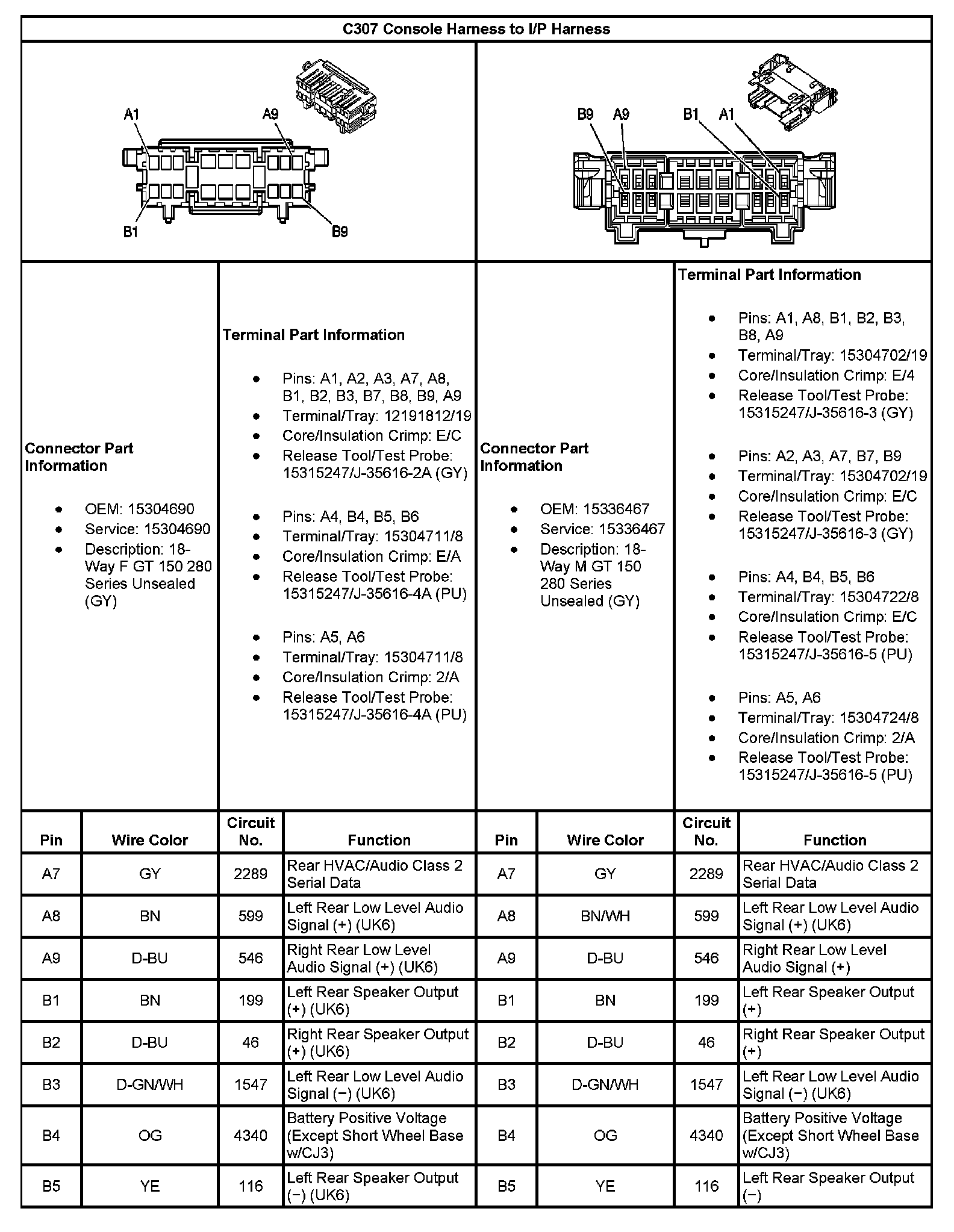

C307 Console Harness To I/P Harness (Part 2):

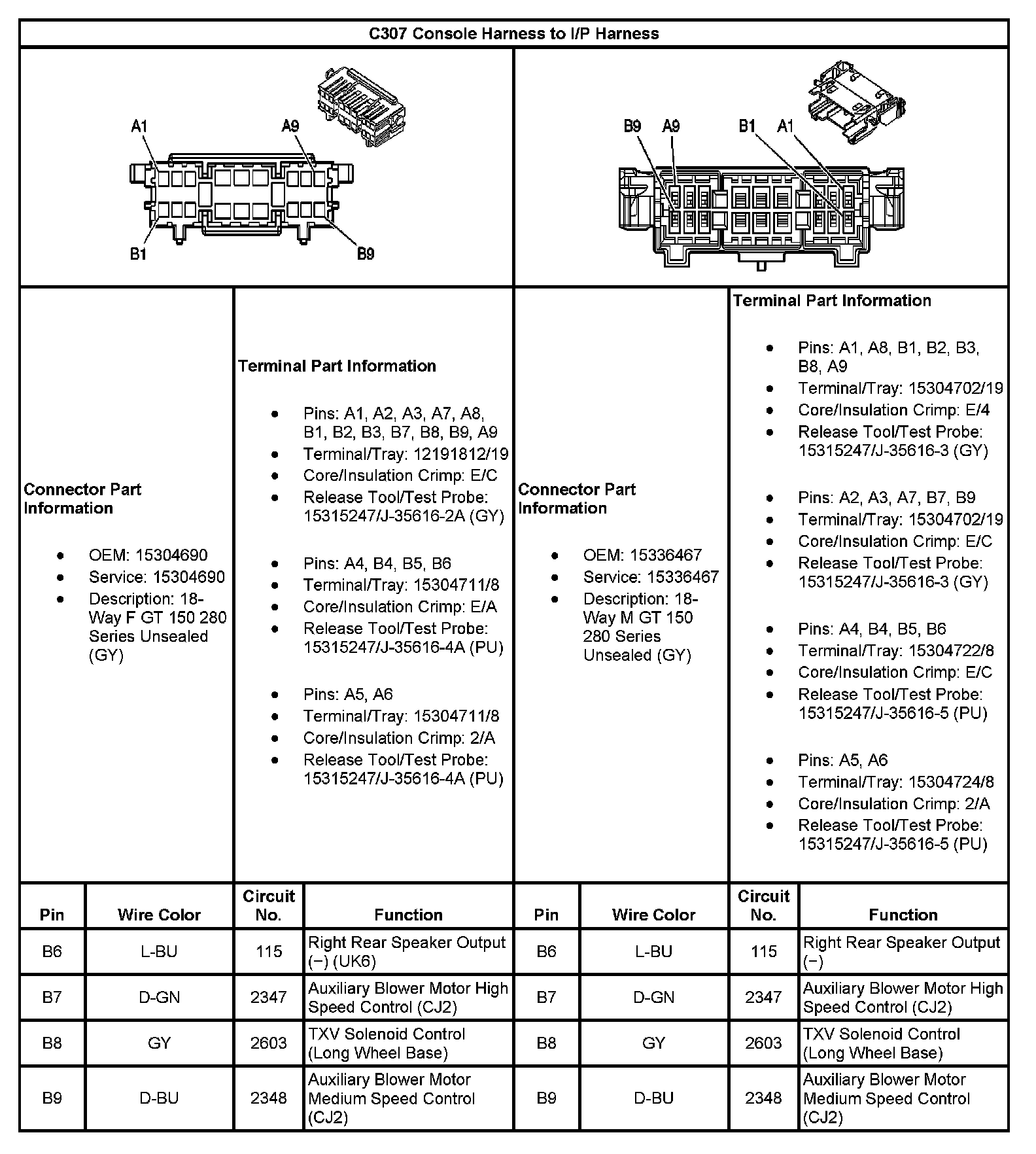

C307 Console Harness To I/P Harness (Part 4):
