Isuzu Truck
>>
2006
>>
Ascender 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Auxiliary Power Outlet
>>
Auxiliary Power Outlet - Front
Auxiliary Power Outlet - Front

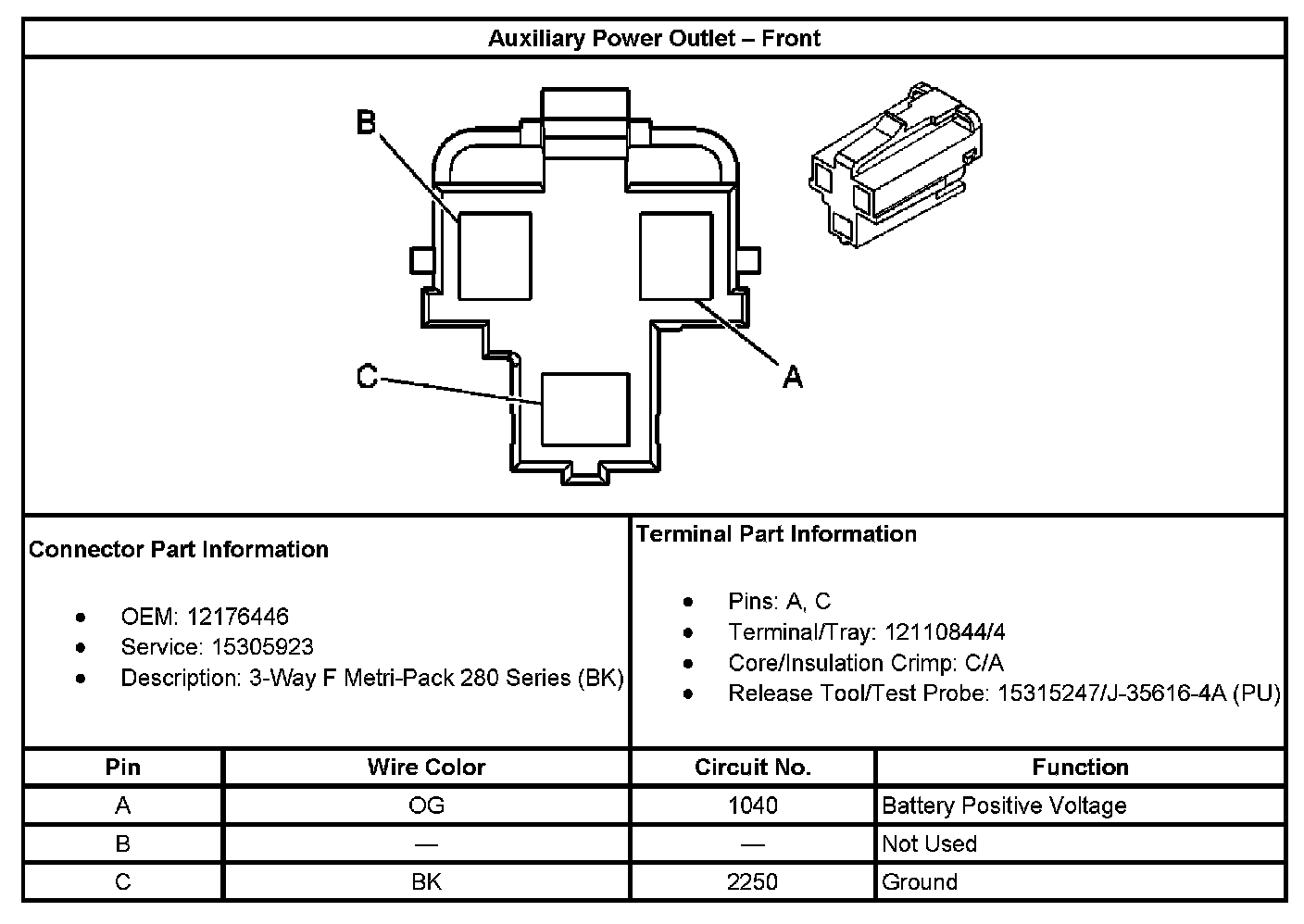

Auxiliary Power Outlet - Front:
