Auxiliary Power Outlet
>>
Auxiliary Power Outlet - Console
Auxiliary Power Outlet - Console

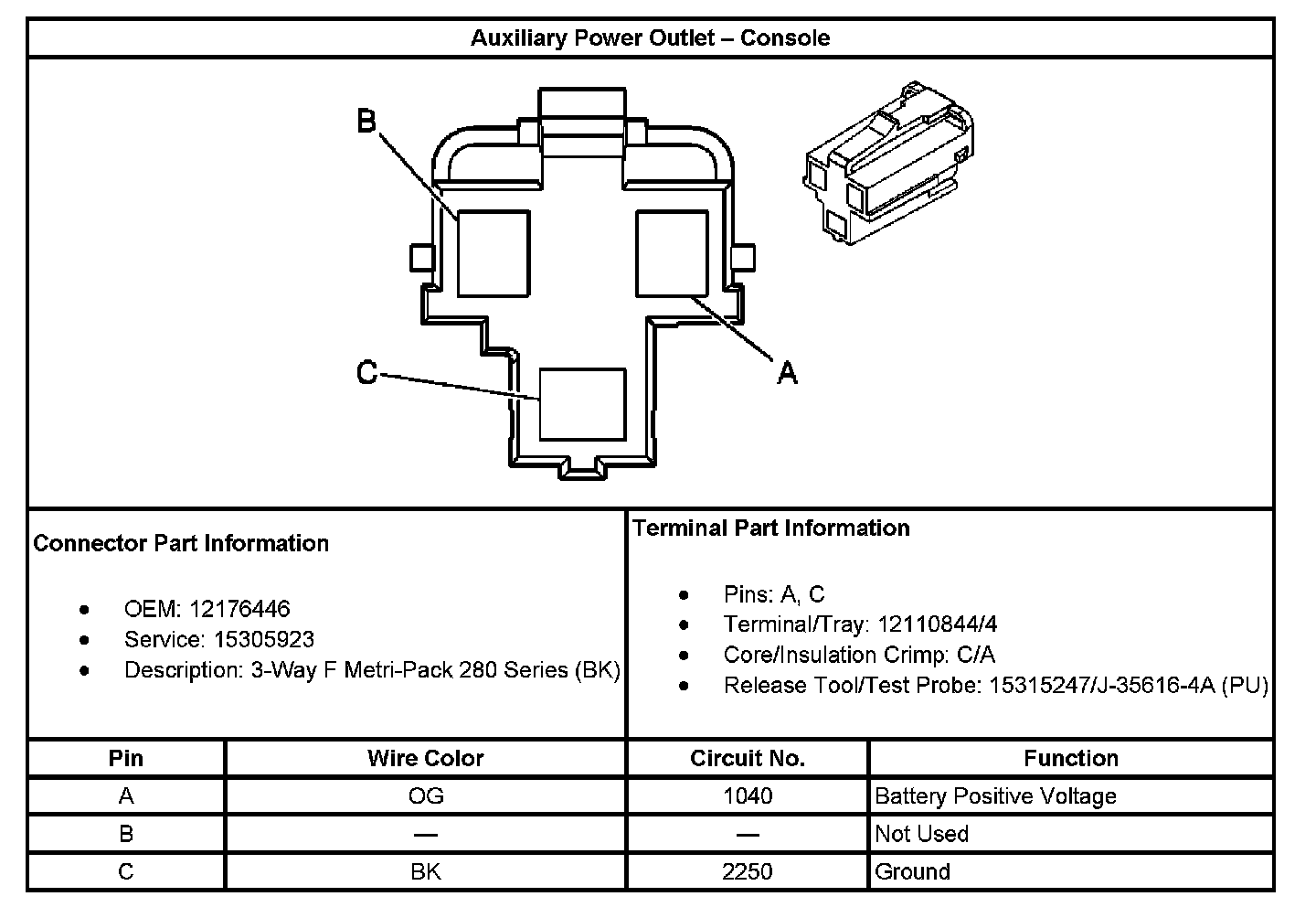

Auxiliary Power Outlet - Console:
