Scan Tool Data List

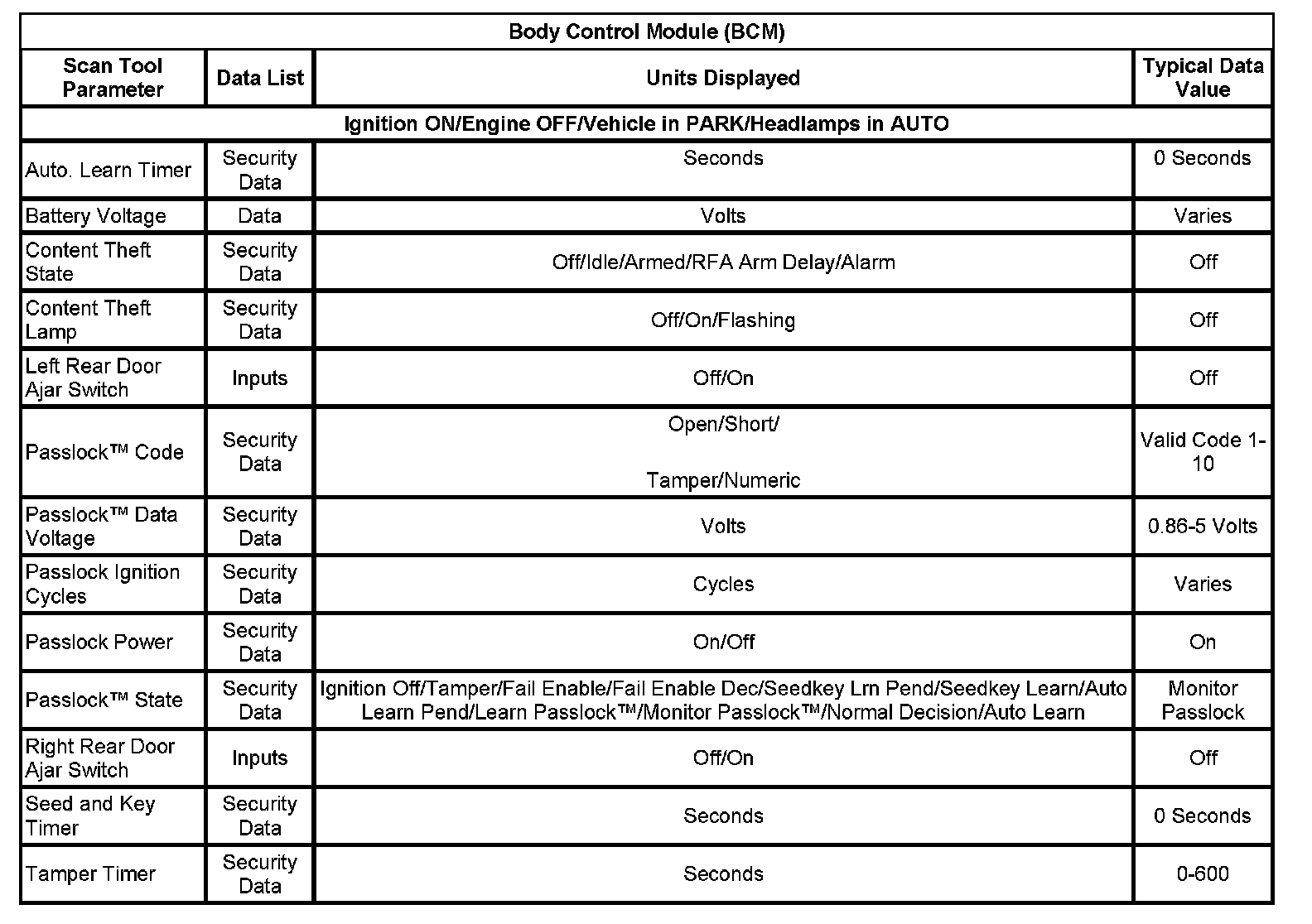

Body Control Module (BCM):

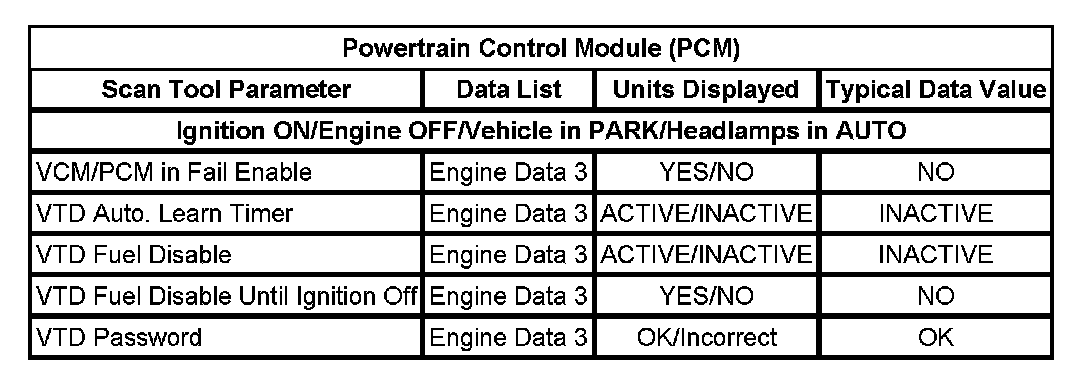

Powertrain Control Module (PCM):

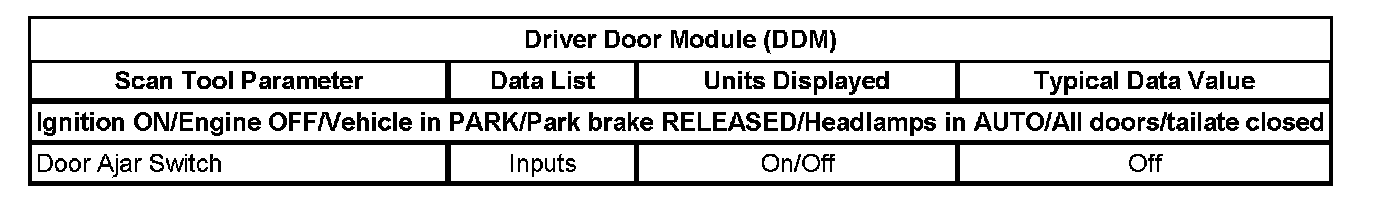

Driver Door Module (DDM):

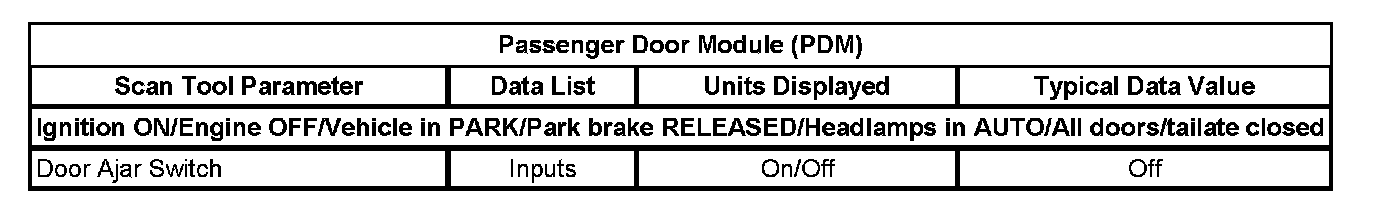

Passenger Door Module (PDM):

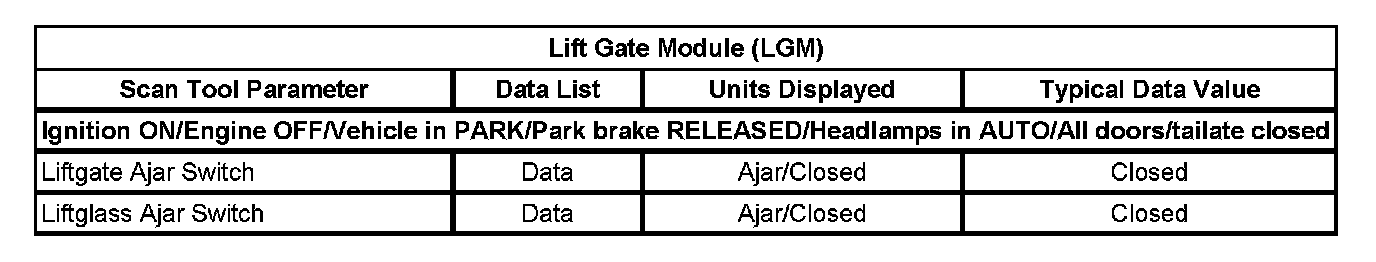

Lift Gate Module (LGM):
