Isuzu Truck
>>
2003
>>
Rodeo 2WD V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Engine Control Module
Engine Control Module

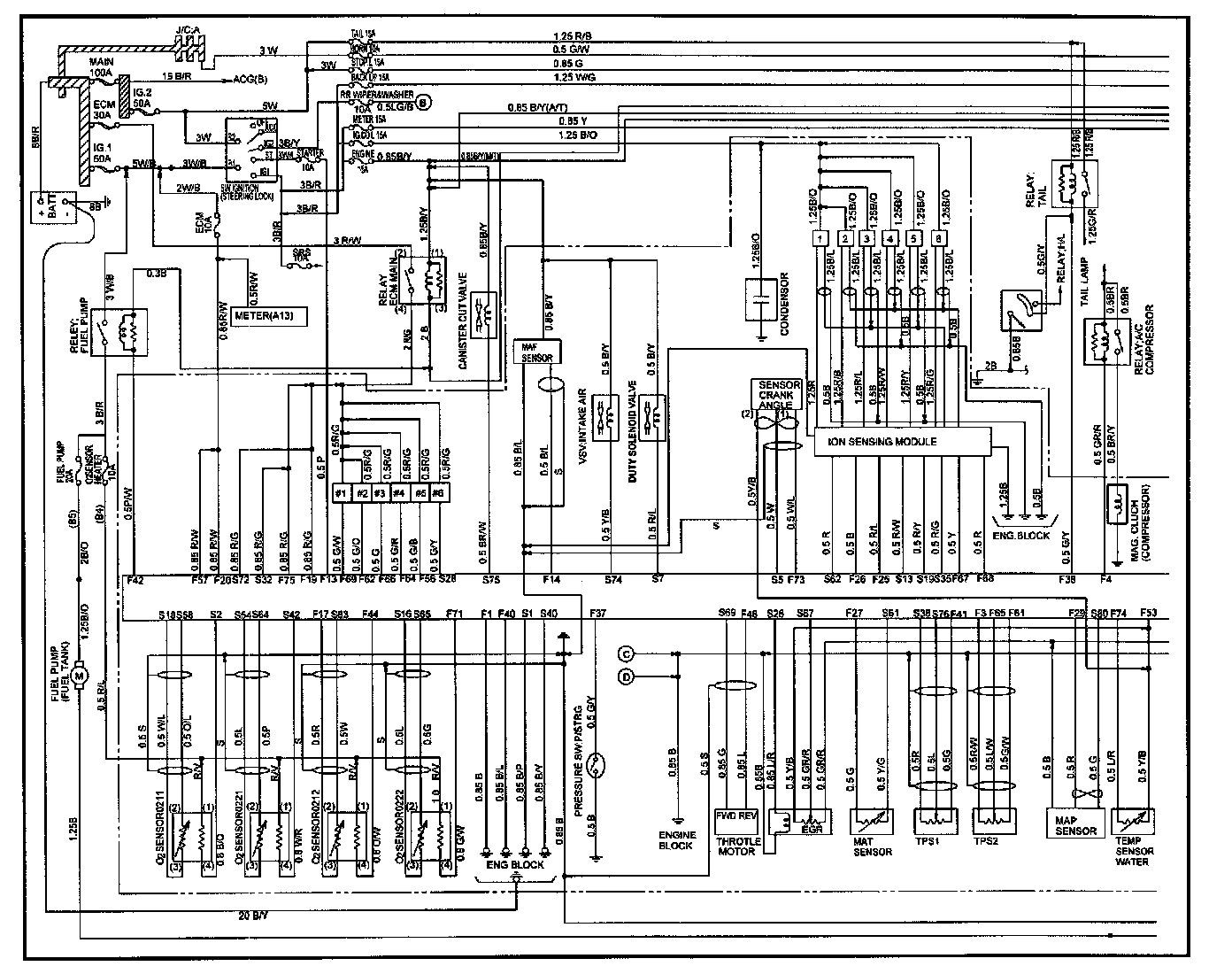

PCM - 1:

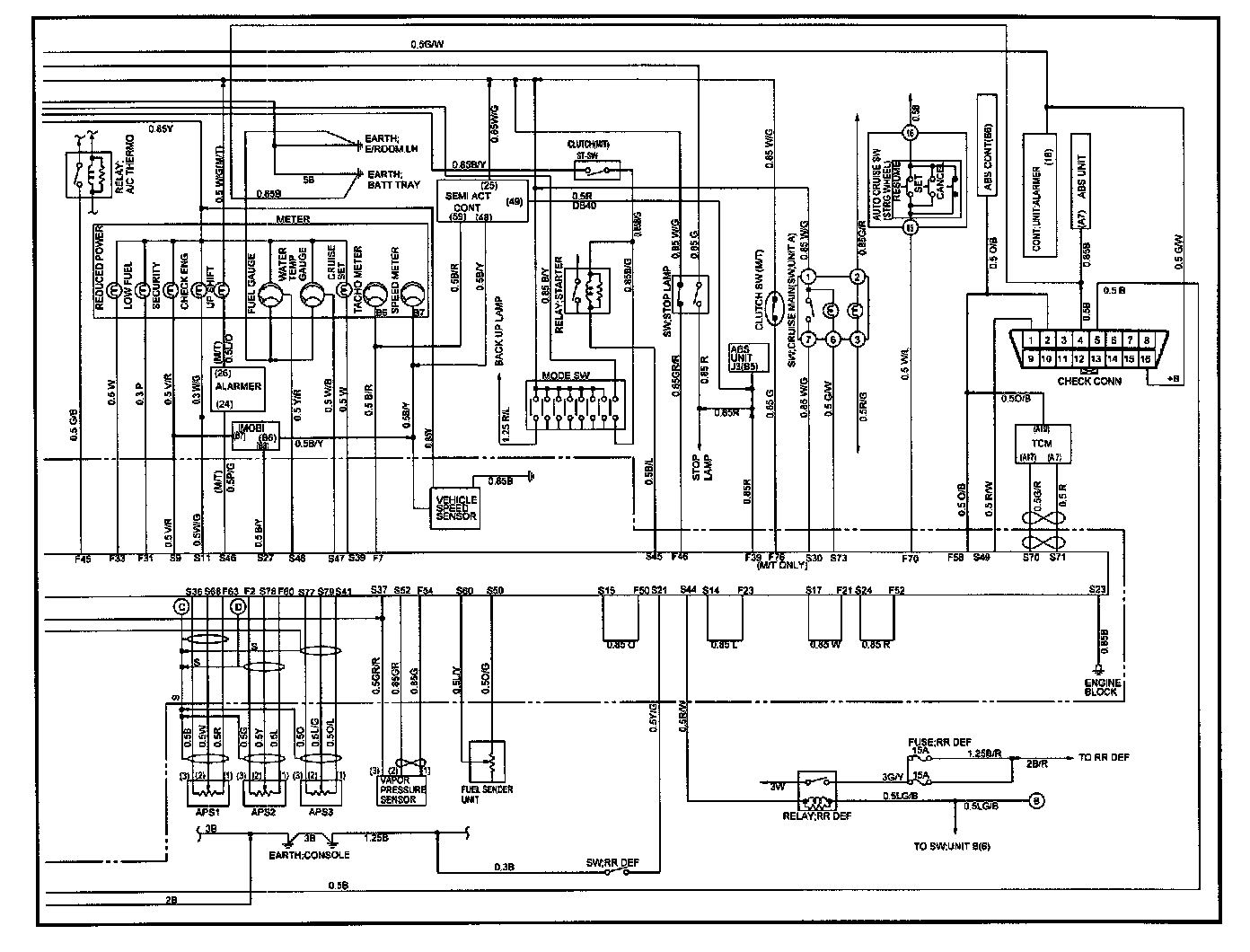

PCM - 2:
