Isuzu Truck
>>
2003
>>
Rodeo 2WD L4-2.2L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Power Distribution Relay
Power Distribution Relay

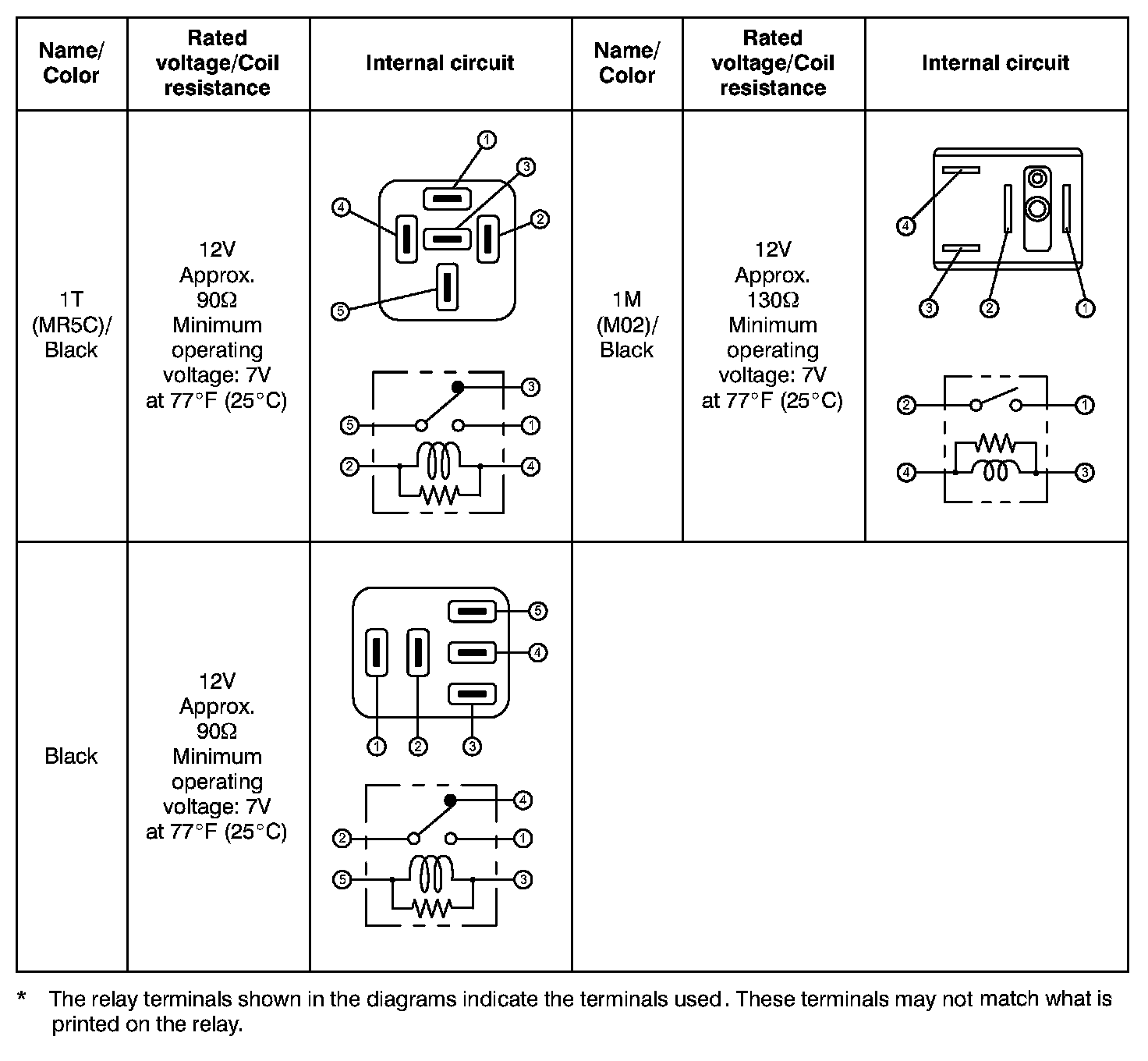

Relay Specifications And Configurations:
