Isuzu Truck
>>
2003
>>
Rodeo 2WD L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Heating and Air Conditioning
>>
Expansion Valve
Expansion Valve

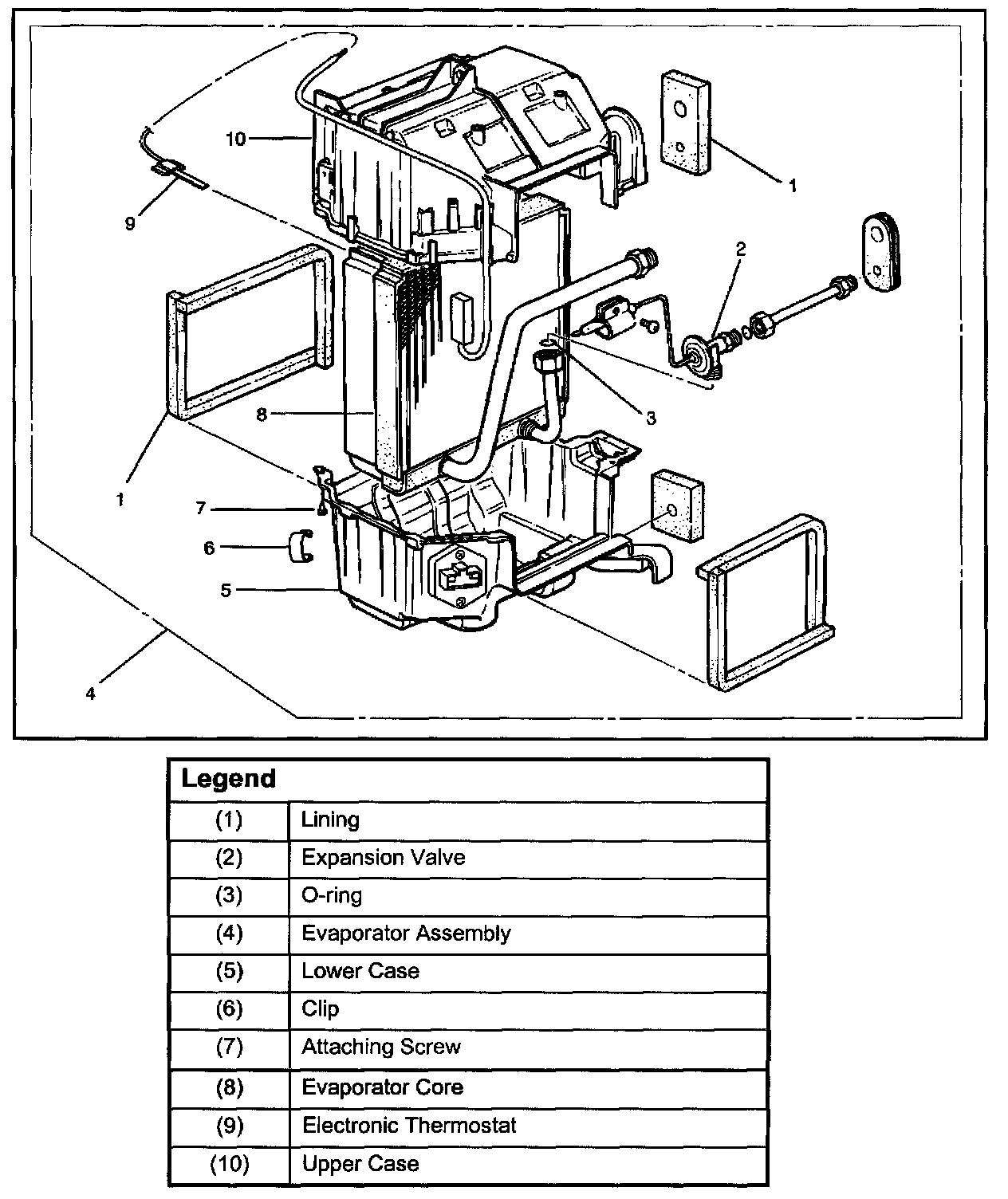

Disassembled View:
