Gear Control Box Assembly

GEAR CONTROL BOX ASSEMBLY

REMOVAL
Preparation:
- Disconnect battery negative (-) cable.
1. Knob
- Remove knobs of the transmission control lever and transfer control lever.
2. Front console assembly
- Remove front console assembly.
- Disconnect harness connector.
- Remove rear heater duct.
3. Grommet assembly
- Remove grommet assembly.
4. Transmission control lever and transfer control lever
- Remove transmission control lever and transfer control lever.

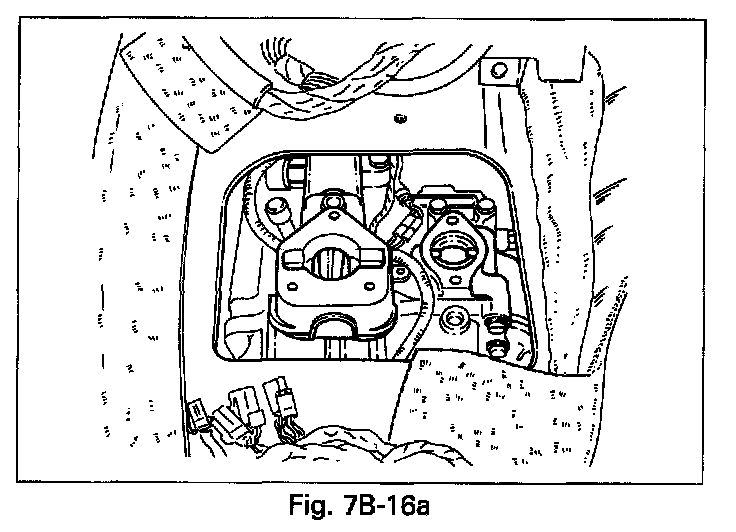

5. Gear control box assembly
- Disconnect neutral switch harness connector.
- Remove neutral switch.
- Remove four gear control box bolts and harness clips.
- Remove gear control box assembly and gasket from the transmission case.

INSTALLATION
To install, follow the removal steps in the reverse order, noting the following points:

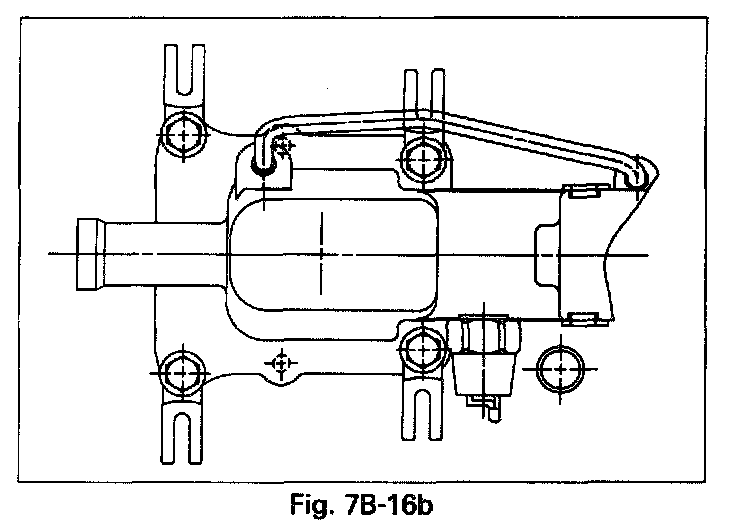

5. Gear control box assembly
- Install a new gasket.




- Install four harness clips and then tighten four new control box bolts to the specified torque.

Torque : 20 (14) N.m (lb.ft)

- Install neutral switch and connect harness connector.
4. Transmission control lever and transfer control lever
- Install transmission control lever and transfer control lever.
3. Grommet assembly
- Install grommet assembly.
2. Front console assembly
- Install rear heater duct.
- Connect harness connector.
- Install front console assembly.
1. Knob
- Install knobs of the transmission control lever and transfer control lever.
- Connect battery negative (-) cable.
