Home
>>
Isuzu Truck
>>
1995
>>
Trooper (4 Door) V6-3165cc 3.2L SOHC (6VD1)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Description of On-Board Diagnostics
>>
4 Wheel Antilock Brakes
>>
Test Mode Using Tech-1 Scan Tool
>>
Test Mode F-2, Trouble Code
Test Mode F-2, Trouble Code

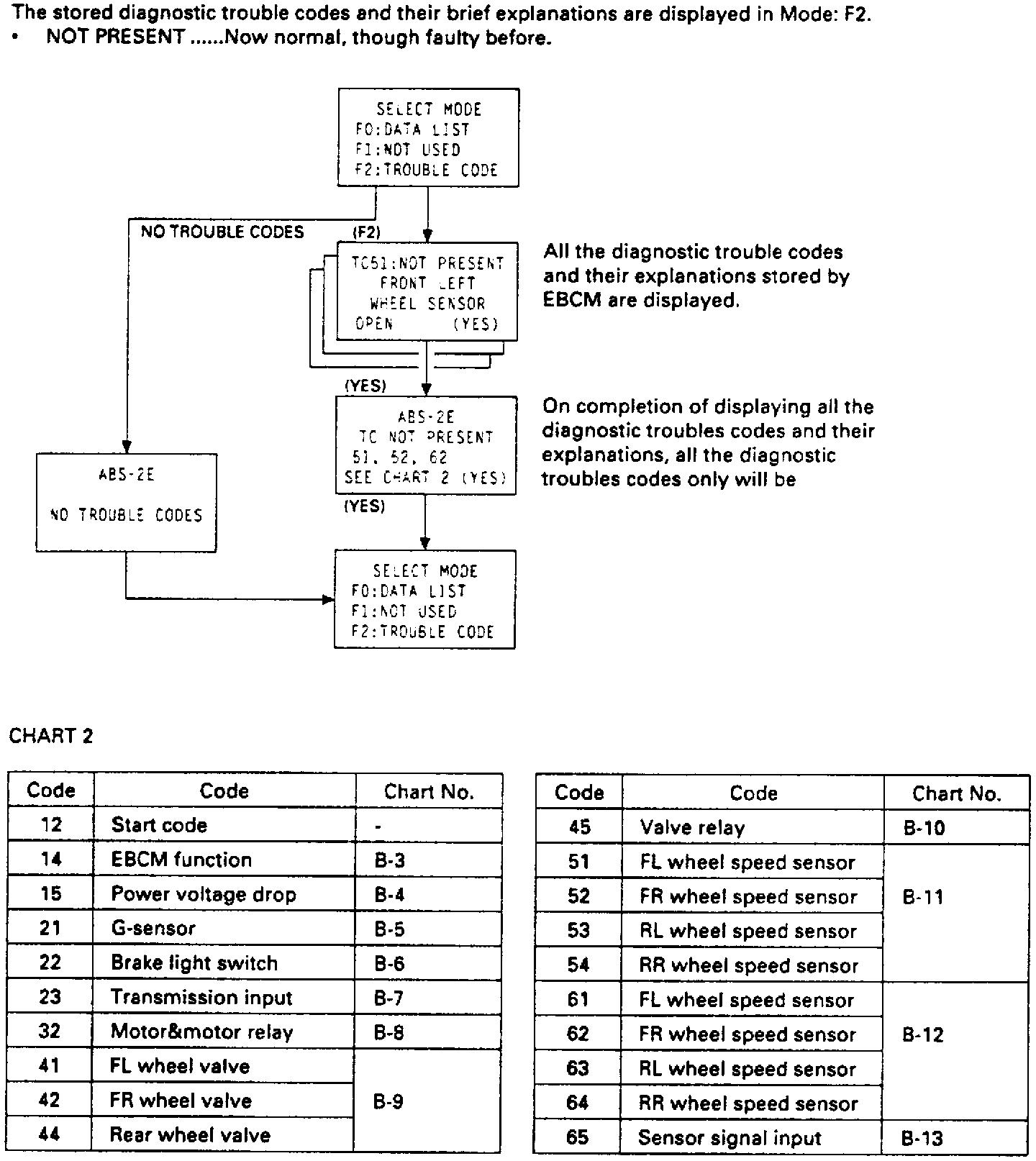

Fig. 163 Test Mode F-2, Trouble Code:
Refer to
Fig. 163
for troubleshooting procedures.
