Isuzu Truck
>>
1995
>>
Trooper (4 Door) V6-3165cc 3.2L SOHC (6VD1)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Description of On-Board Diagnostics
>>
4 Wheel Antilock Brakes
>>
Test Mode Using Tech-1 Scan Tool
>>
Explanation of Test Modes Using Scan Tool Tech 1
Explanation of Test Modes Using Scan Tool Tech 1

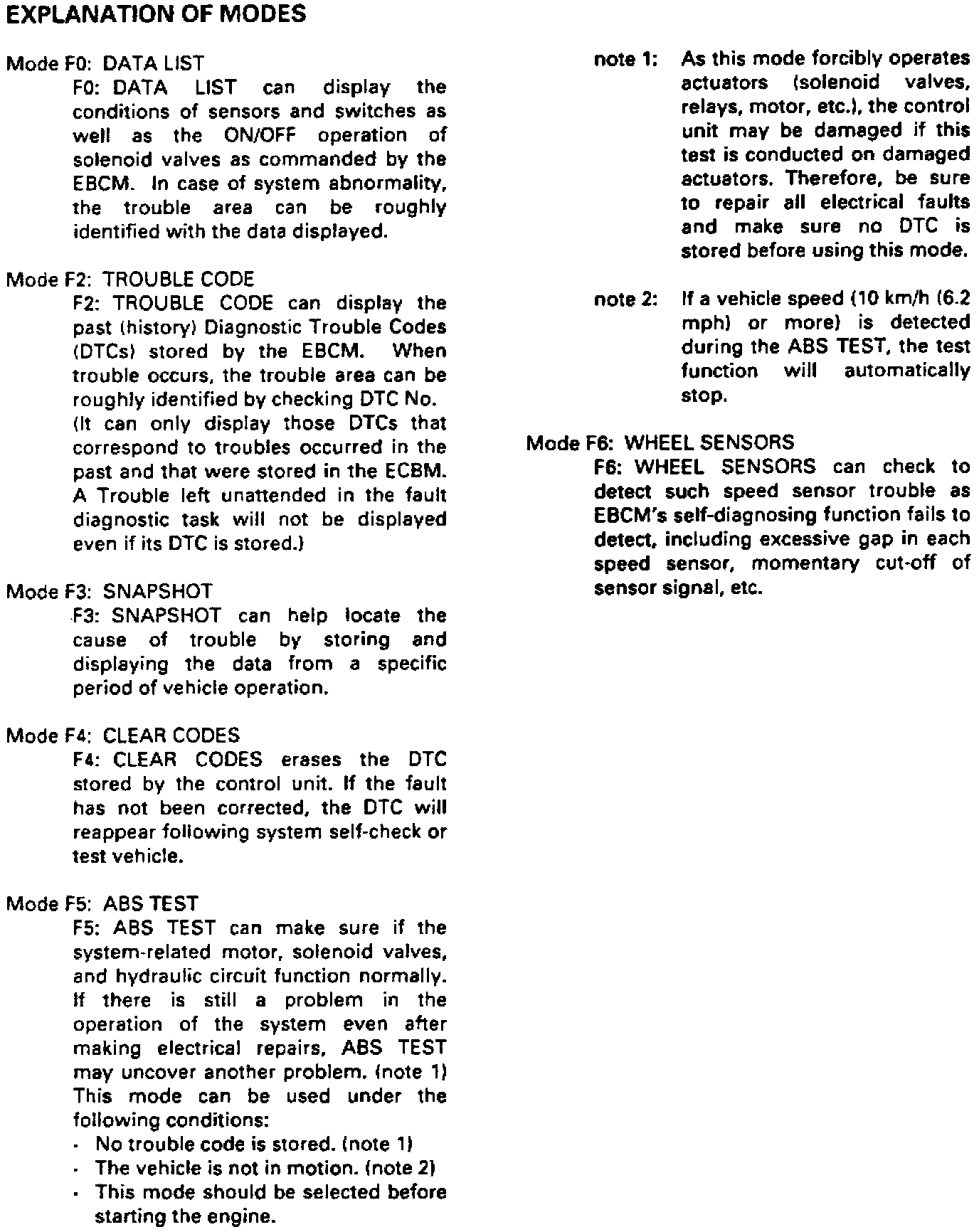

Fig. 161 Explanation Of Test Modes Using Scan Tool Tech 1:
Refer to
Fig. 161
for explanations.
