DTC 32 (EGR Circuit) Diagnostic Procedure Revised

BULLETIN NUMBER:
SB98-03-L004

ISSUE DATE:
JULY 1998

GROUP:
EMISSIONS

1992-95 TROOPER (UX) / 1993-95.5 RODEO (UC)
EGR CIRCUIT (DTC 32)
WORKSHOP MANUAL CORRECTIONS

AFFECTED VEHICLES

1992-95 Trooper (UX) and 1993-95.5 Rodeo (UC) 3.2L V6 models.

SERVICE INFORMATION

The diagnostic procedures for the following trouble code have been revised:
^ DTC 32 (Exhaust Gas Recirculation Circuit)

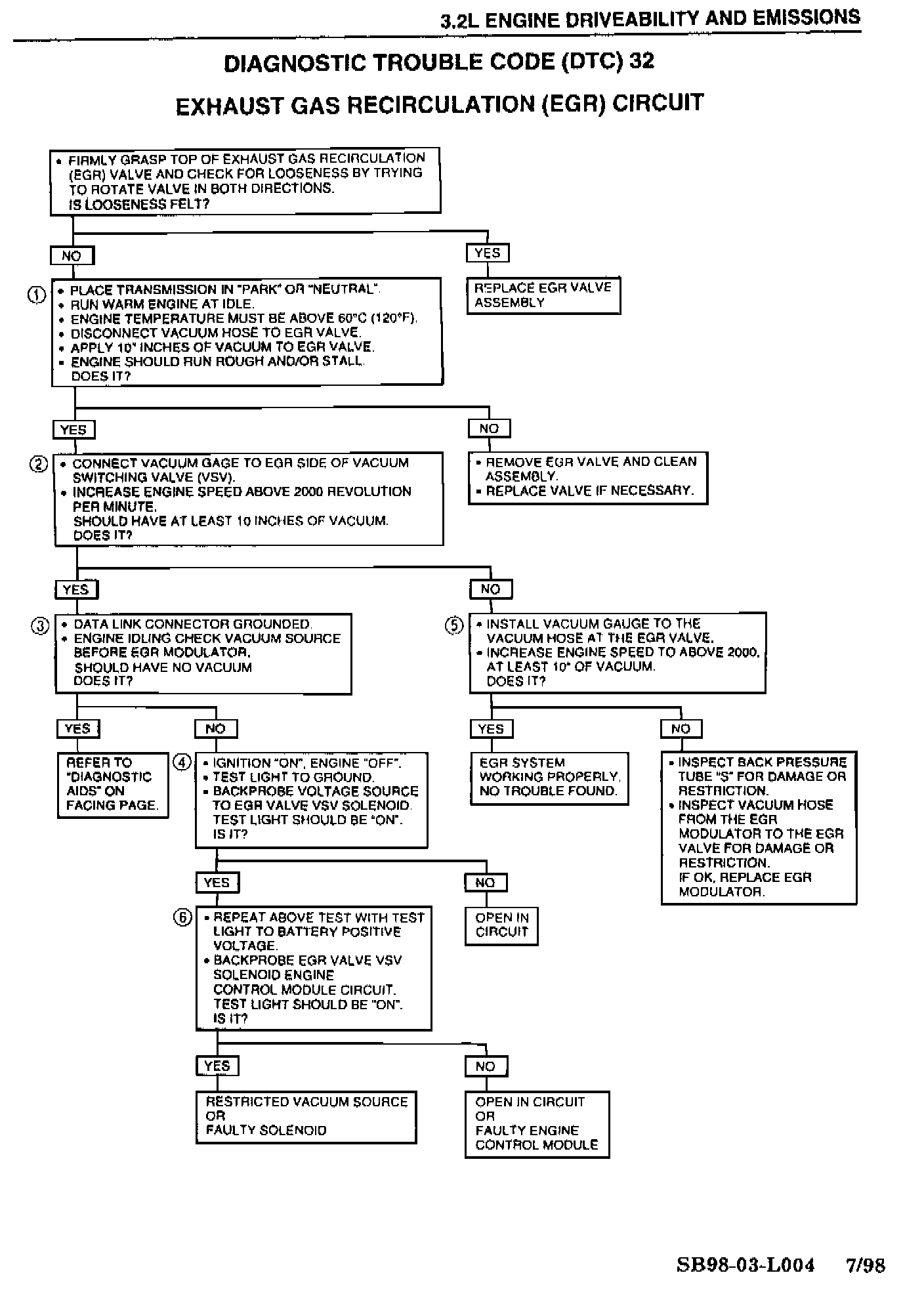

Please see the attached page for the revised diagnostic procedures.

Vehicle Workshop Manuals Affected
1992-95 Trooper (UX), 1993-1995.5 Rodeo (UC)

Affected Section
3.2L ENGINE DRIVEABILITY AND
EMISSIONS: Diagnostic Trouble Code 32
(Exhaust Gas Recirculation Circuit)





This service bulletin contains the revised page to the affected Workshop Manuals. Attach the enclosed page to the affected Workshop Manuals.
