Front Wiper Switch

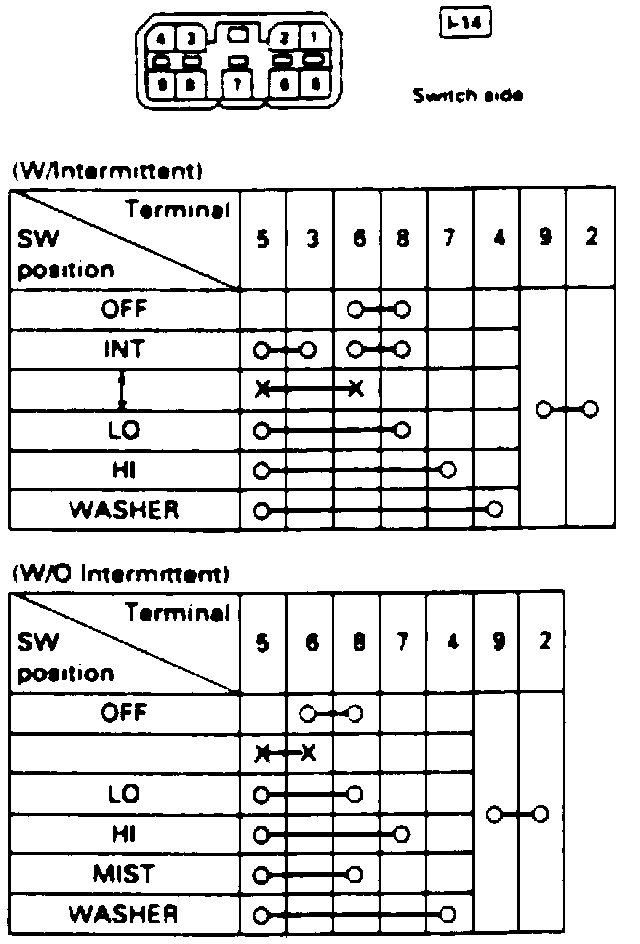

Fig. 54 Front Wiper Switch:





Check continuity between terminals as outlined in Fig. 54.
