Home >> Isuzu Truck >> 1995 >> Rodeo (4WD) L4-2559cc 2.6L SOHC (4ZE1) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Locations >> 1995.5 Model Year >> Fuse/Relay Box

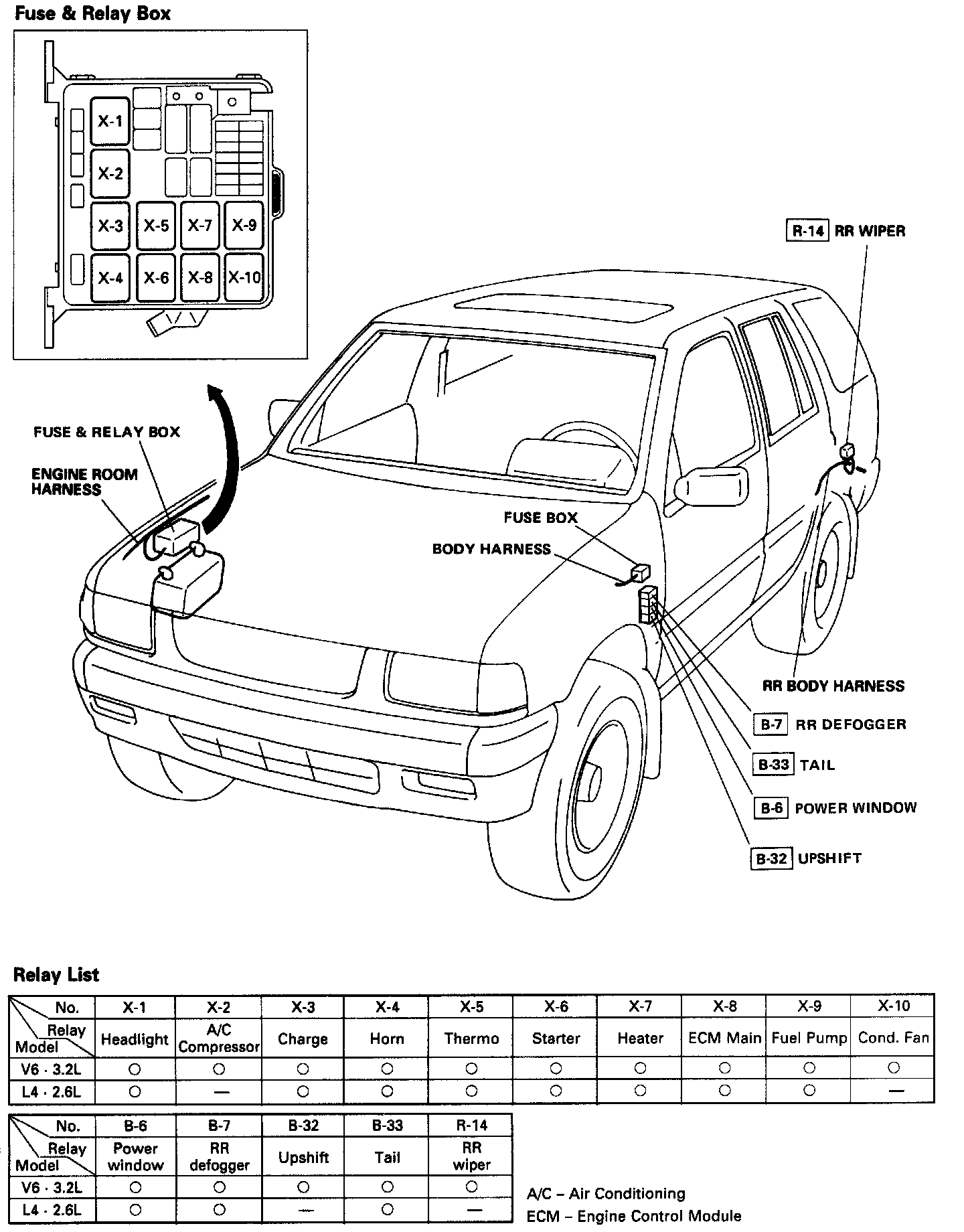

Fuse/Relay Box



1995.5 Model Year / Relay Location:
