Isuzu Truck
>>
1995
>>
Rodeo (4WD) L4-2559cc 2.6L SOHC (4ZE1)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Power and Ground Distribution
>>
Relay Box
>>
Locations
>>
1995 Model Year
>>

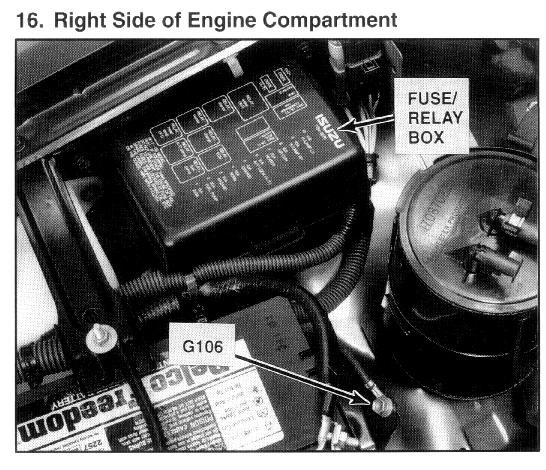

Fuse/Relay Box
Fuse/Relay Box

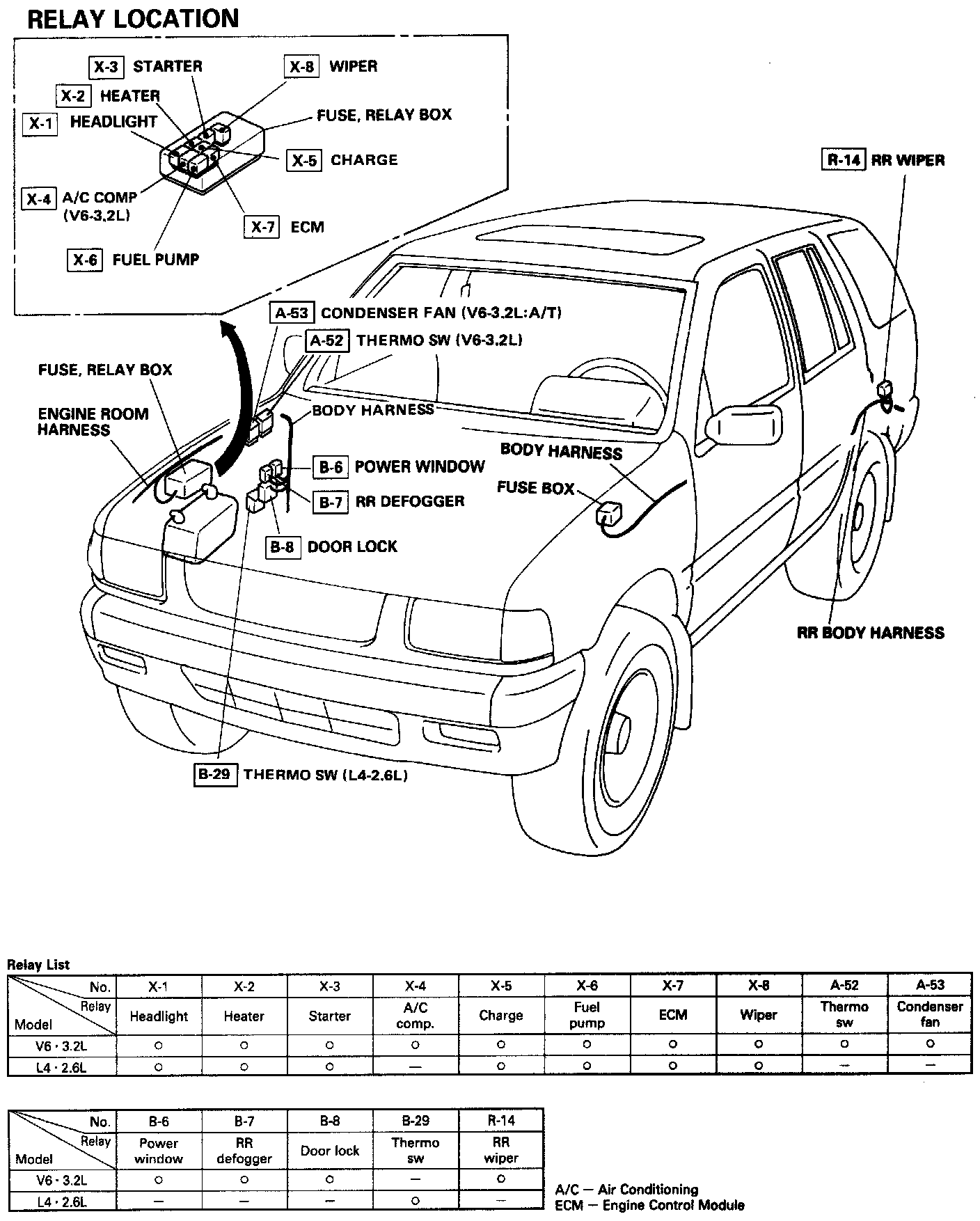

1994, 1995 Model Year / Relay Location:
