Ignition Coil: Service and Repair

REMOVAL
Preparation: Disconnect Battery Ground Cable.

Ventilation Hose:

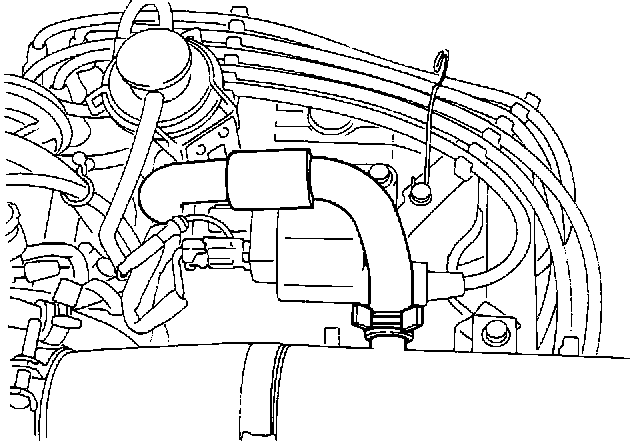

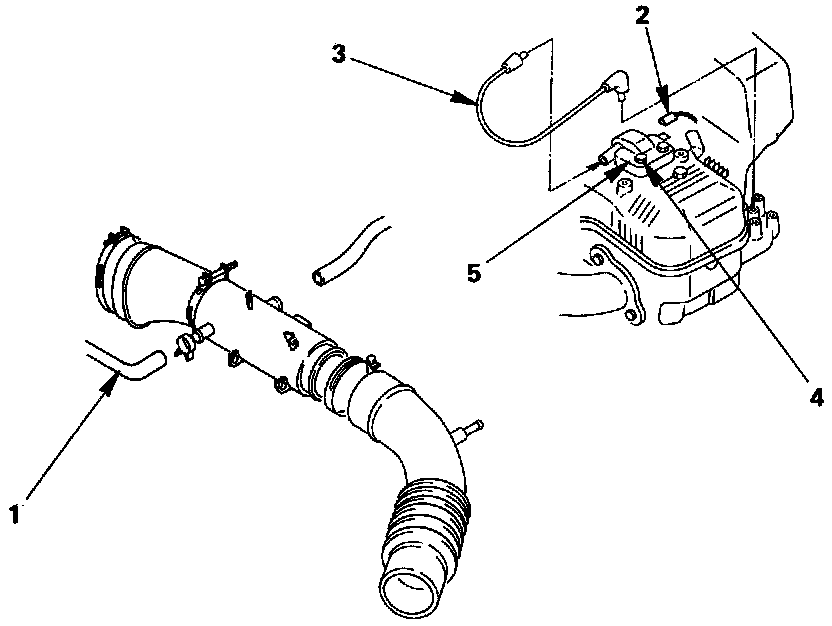

1. Disconnect Ventilation Hose from Air Duct.

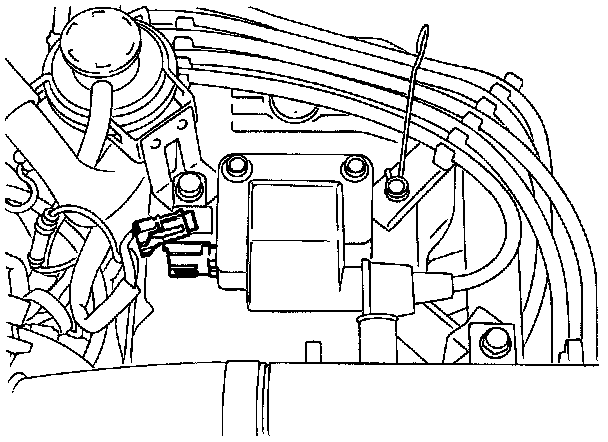

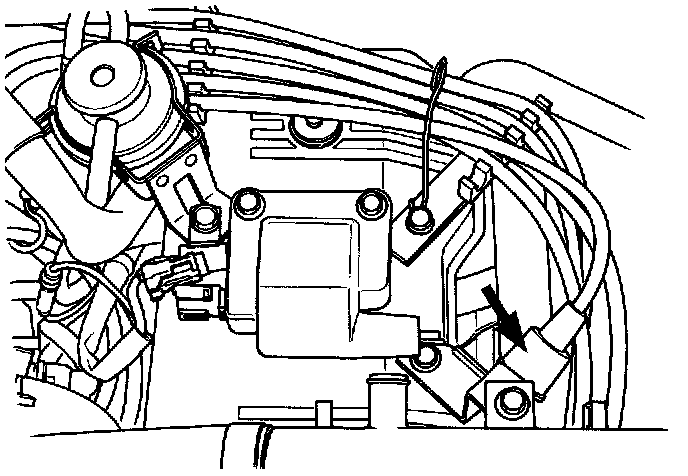

2. Disconnect the Ignition Coil Wiring Connector from Engine Harness.




3. High Tension Cable from Ignition Coil.

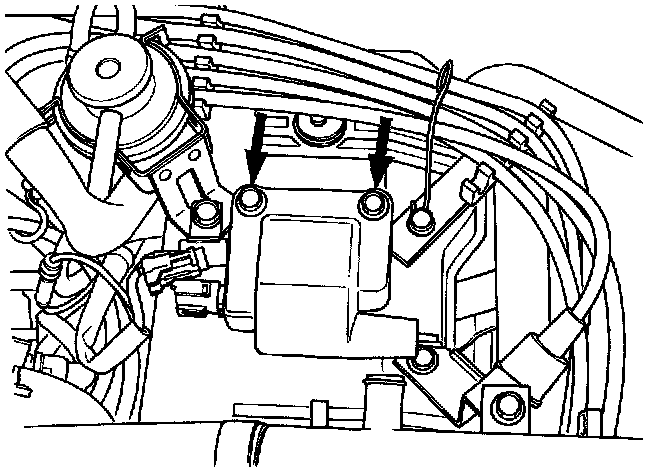

4. Remove Ignition Coil Fixing Bolts.
5. Remove Ignition Coil.


INSTALLATION
To install, follow the removal steps in the reverse order.

5. Install Ignition Coil.
4. Attach Ignition Coil Fixing Bolts.
3. Reconnect High Tension Cable.
2. Connect Wiring Connector.
1. Connect Ventilation Hose.
