TCM/MEM CAL Unit - Updated Replacement Procedures

BULLETIN NUMBER
SB95-05-L001

ISSUE DATE

JANUARY 1995

GROUP
TRANSMISSION

RODEO (UC) TCM MEM-CAL REPLACEMENT (Workshop Manual Addition)

AFFECTED VEHICLES
All 1995 Rodeo (UC) models equipped with 4L30-E automatic transmission.

SERVICE INFORMATION
Affected vehicles are equipped with a new Transmission Control Module (TCM) and Memory and Calibration (MEM-CAL) unit. This new TCM and MEM-CAL requires different replacement procedures, which are not included in the following Workshop Manual:

Manual Page No.

1994/95 Rodeo (UC) 7A-153, 7A-154
(Publication No.
AIMI-SVC-267,
Part No. 2-90994-072-0)

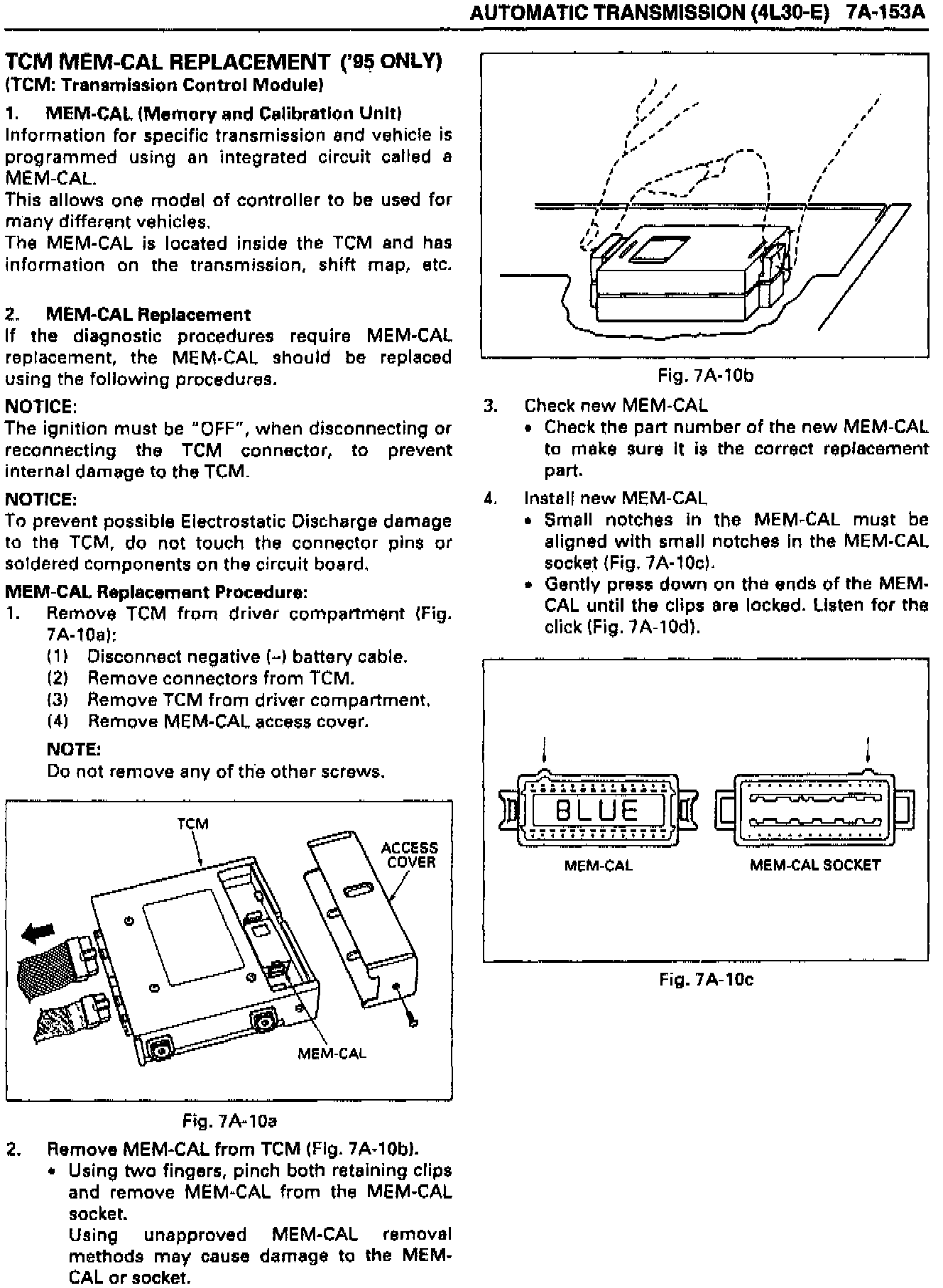

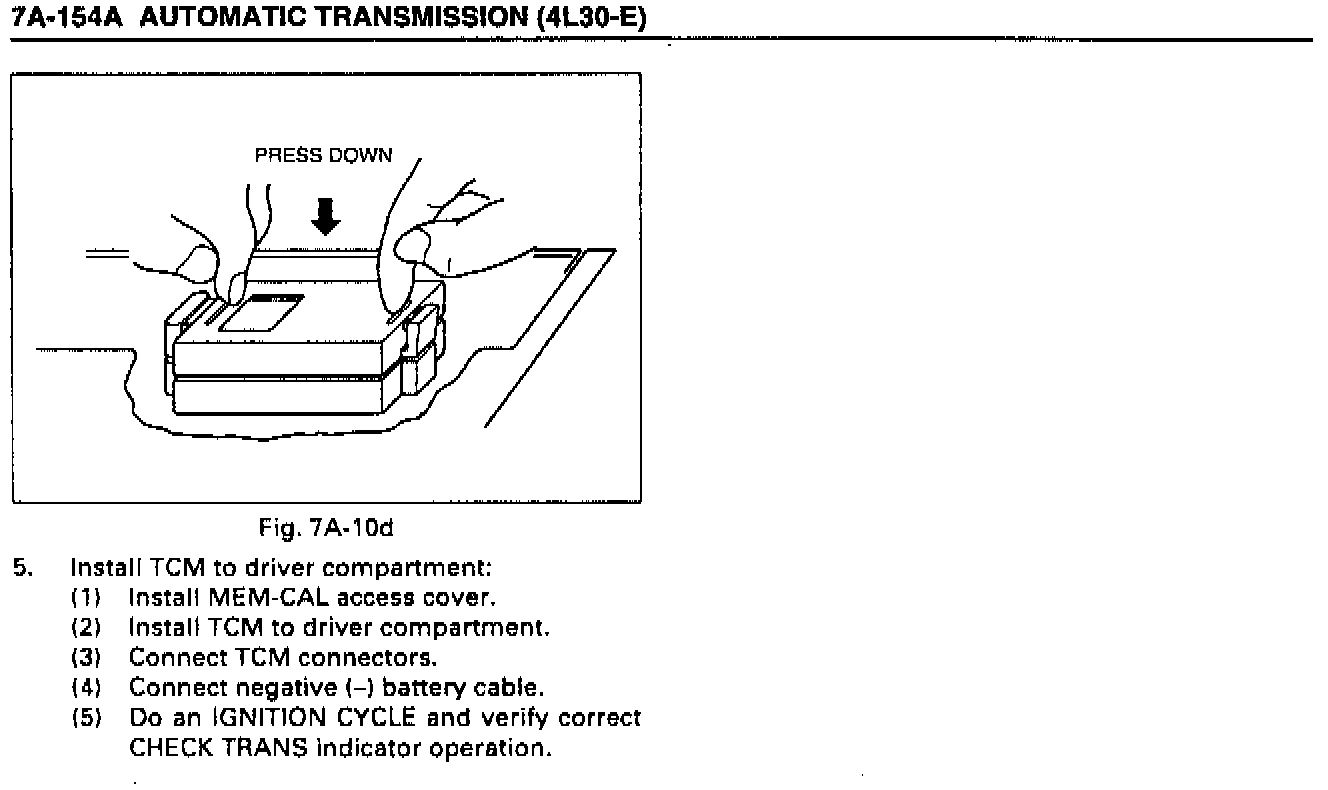

This Service Bulletin contains Workshop Manual pages with new TCM MEM-CAL replacement procedures.
