Isuzu Truck
>>
1995
>>
Rodeo (4WD) L4-2559cc 2.6L SOHC (4ZE1)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
94-95 Models
>>
Dash Fuse Box
Dash Fuse Box

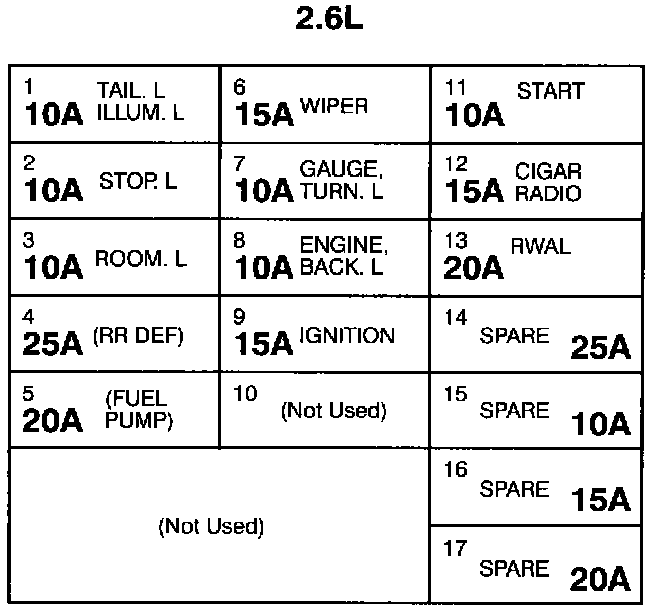

Fuse Relay Information- Dash Fuse Box (Part 1 Of 2):

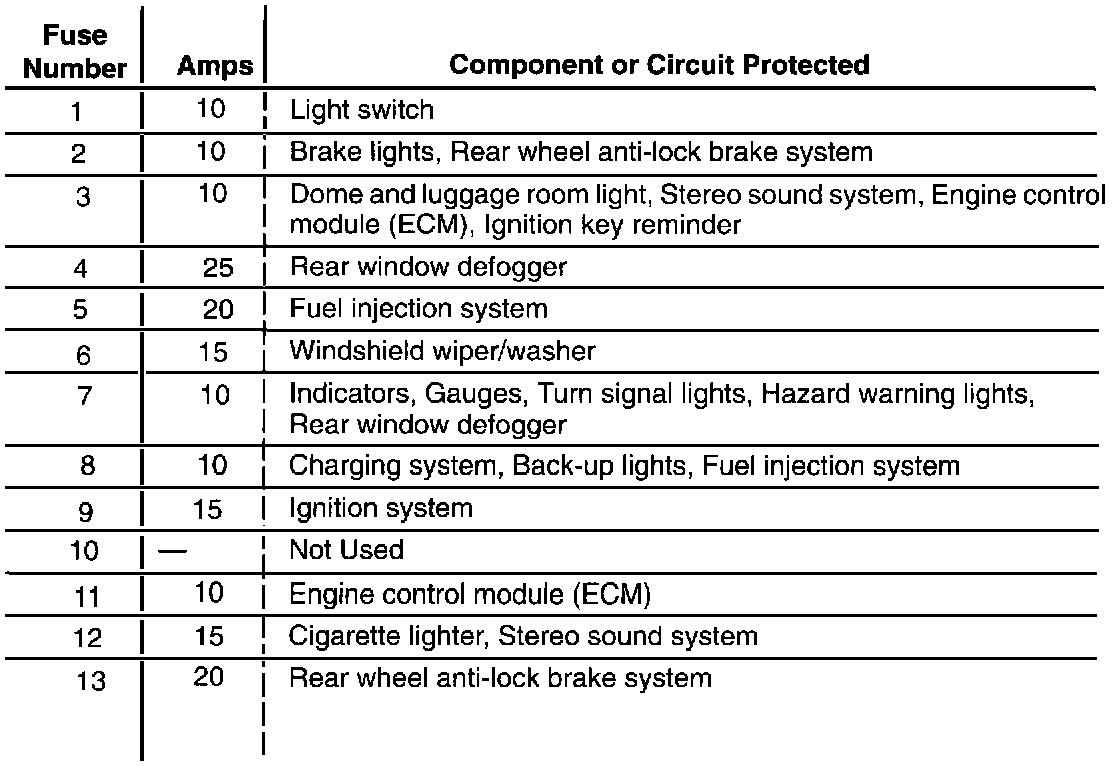

Fuse Relay Information- Dash Fuse Box (Part 2 Of 2):
