Isuzu Truck
>>
1995
>>
Rodeo (4WD) L4-2559cc 2.6L SOHC (4ZE1)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
System Relay
>>
Testing and Inspection
>>
Heater Relay
>>
1995.5 Model Year
1995.5 Model Year

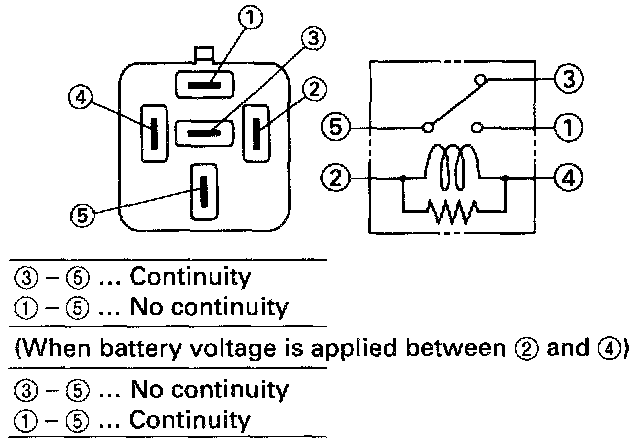

HEATER RELAY
1.
Disconnect heater relay (X-7).
2.
Check for continuity between the terminals of heater relay.
