Triple Pressure Switch

TRIPLE PRESSURE SWITCH (Automatic Transmission)

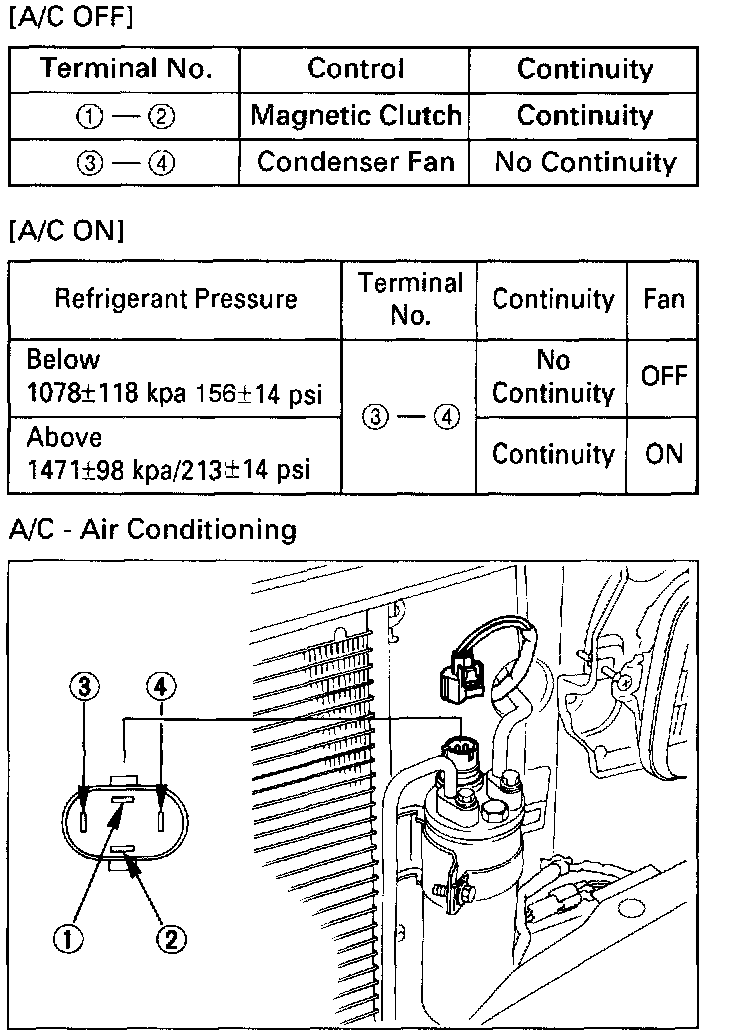

1. Disconnect the connector and check for continuity between pressure switch side connector terminal.
2. Reconnect the connector to activate the A/C switch, and check to see if there is continuity between the chassis side connector terminals and the fan operates.
