Isuzu Truck
>>
1995
>>
Rodeo (4WD) L4-2559cc 2.6L SOHC (4ZE1)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>

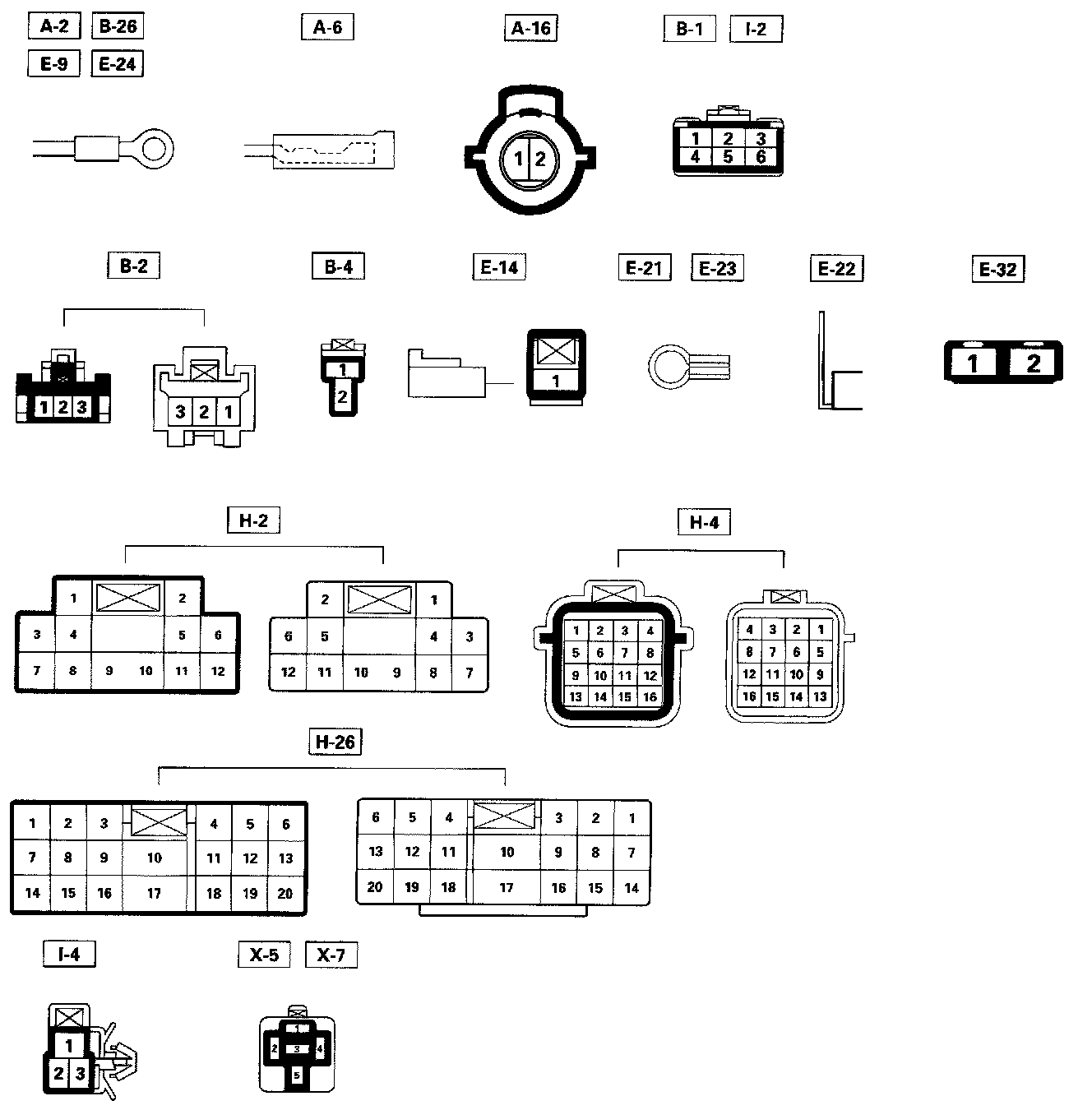

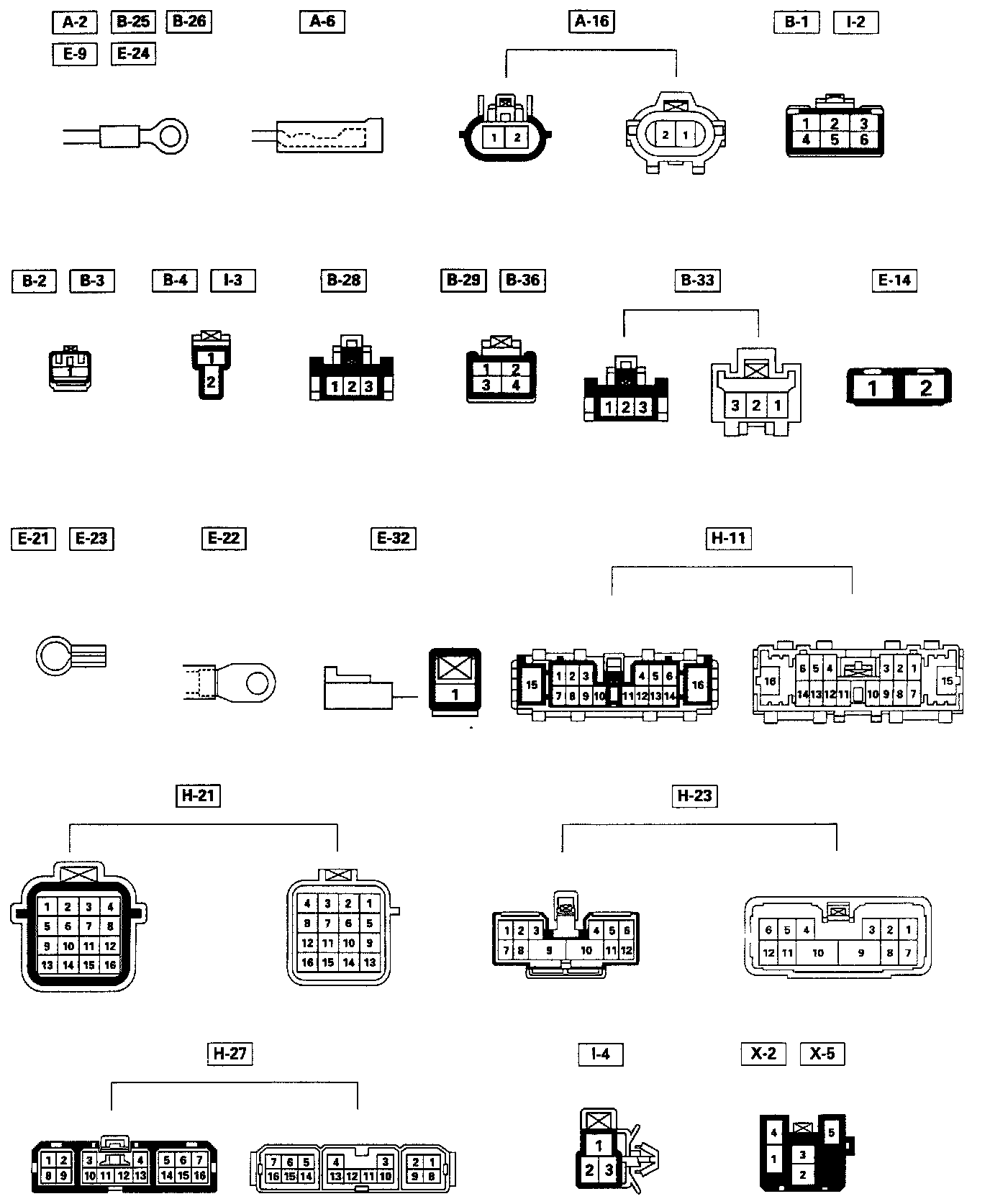

Connector Views
Connector Views
1995.5 Model Year / Air Conditioning:
Air Conditioning:
