Isuzu Truck
>>
1995
>>
Rodeo (4WD) L4-2559cc 2.6L SOHC (4ZE1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>

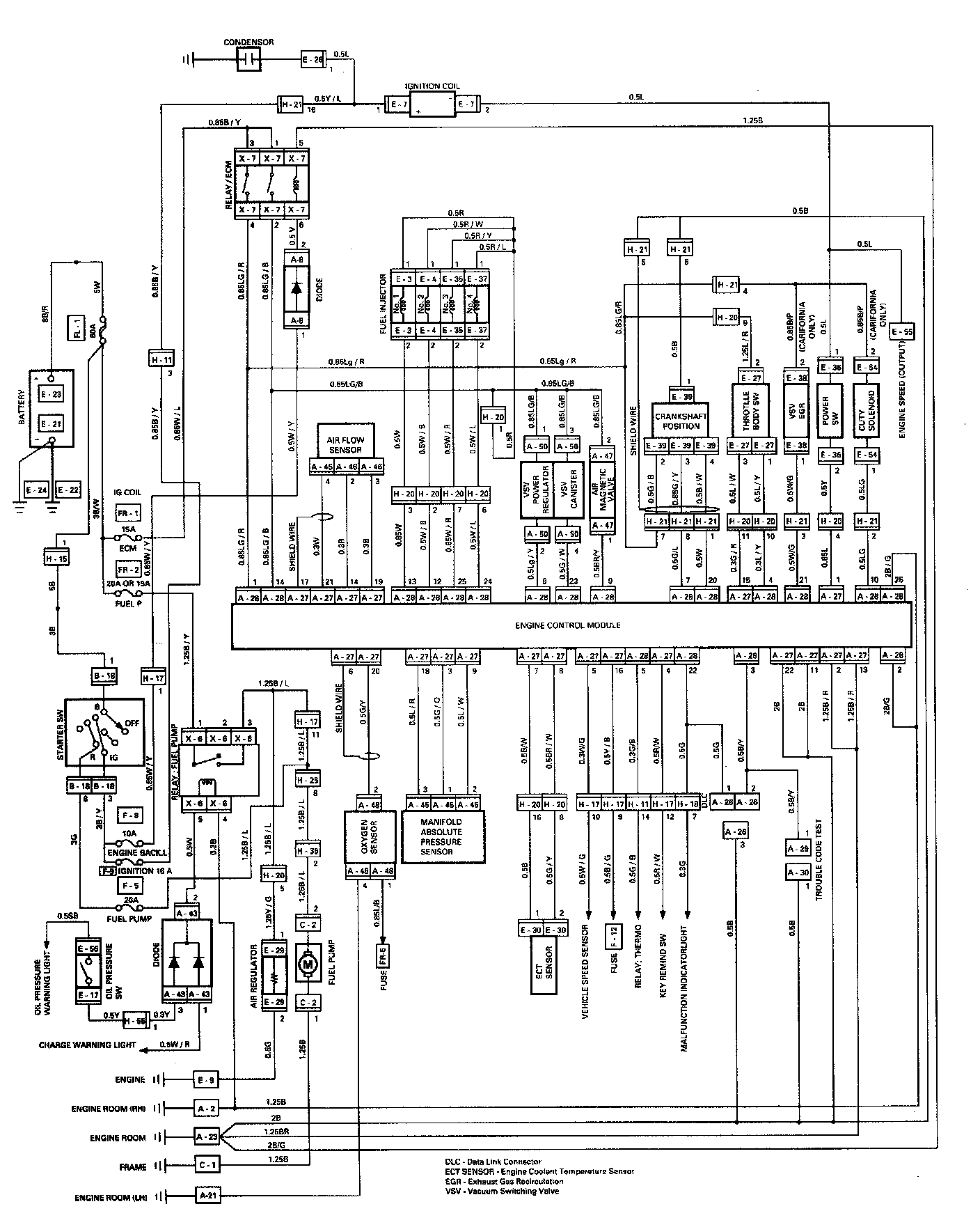

System Diagram
>>
95 Models
95 Models
ENGINE CONTROL MODULE (ECM):
