Rodeo (2WD) V6-3165cc 3.2L SOHC (6VD1)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Wipers Do Not Operate
Wipers Do Not Operate

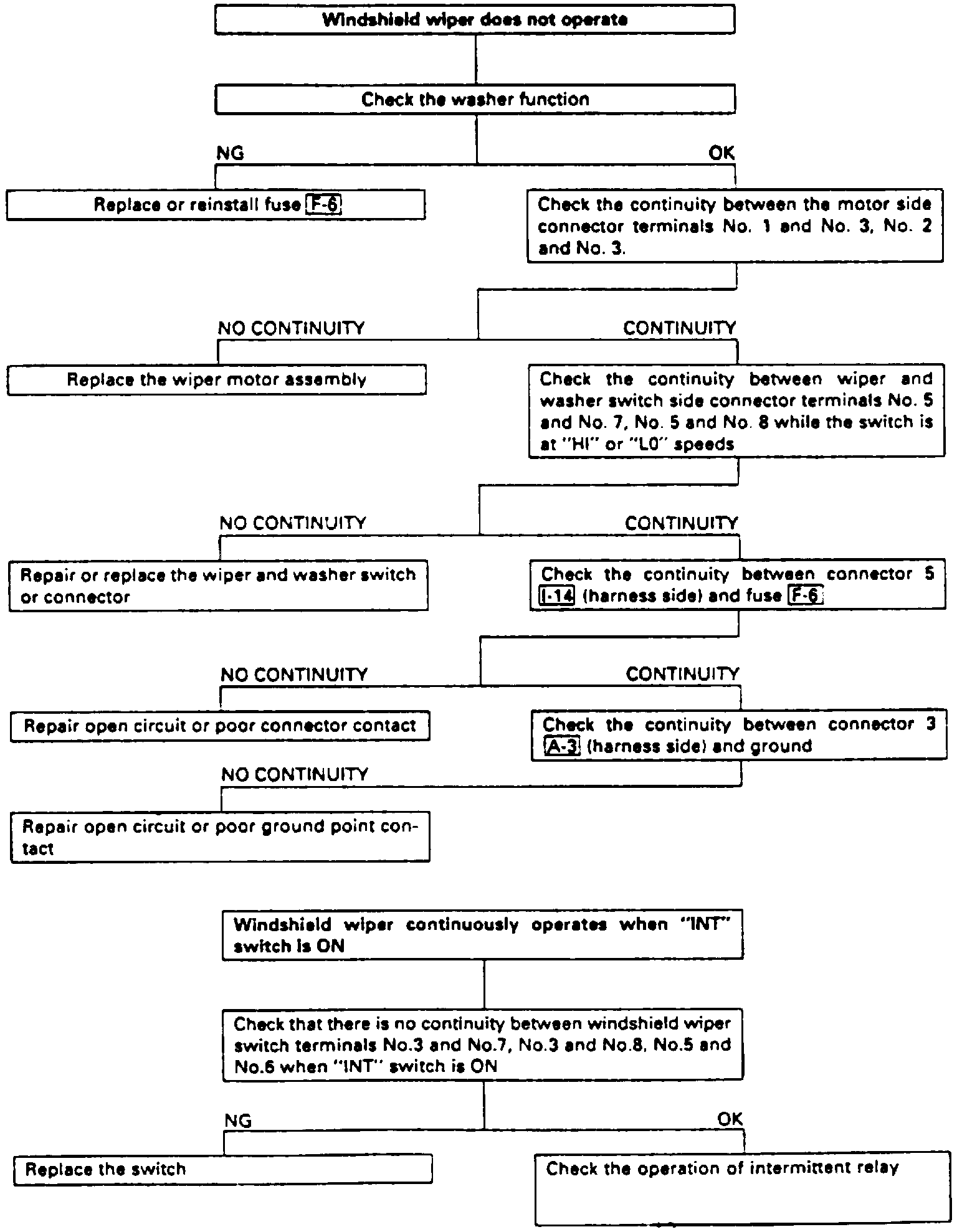

Fig. 19 Diagnostic Chart, Wipers Do Not Operate:
Refer to
Fig. 19
for wiper system diagnosis procedures.
