Washing Solution Is Not Pumped Out When Washer Motor Operating

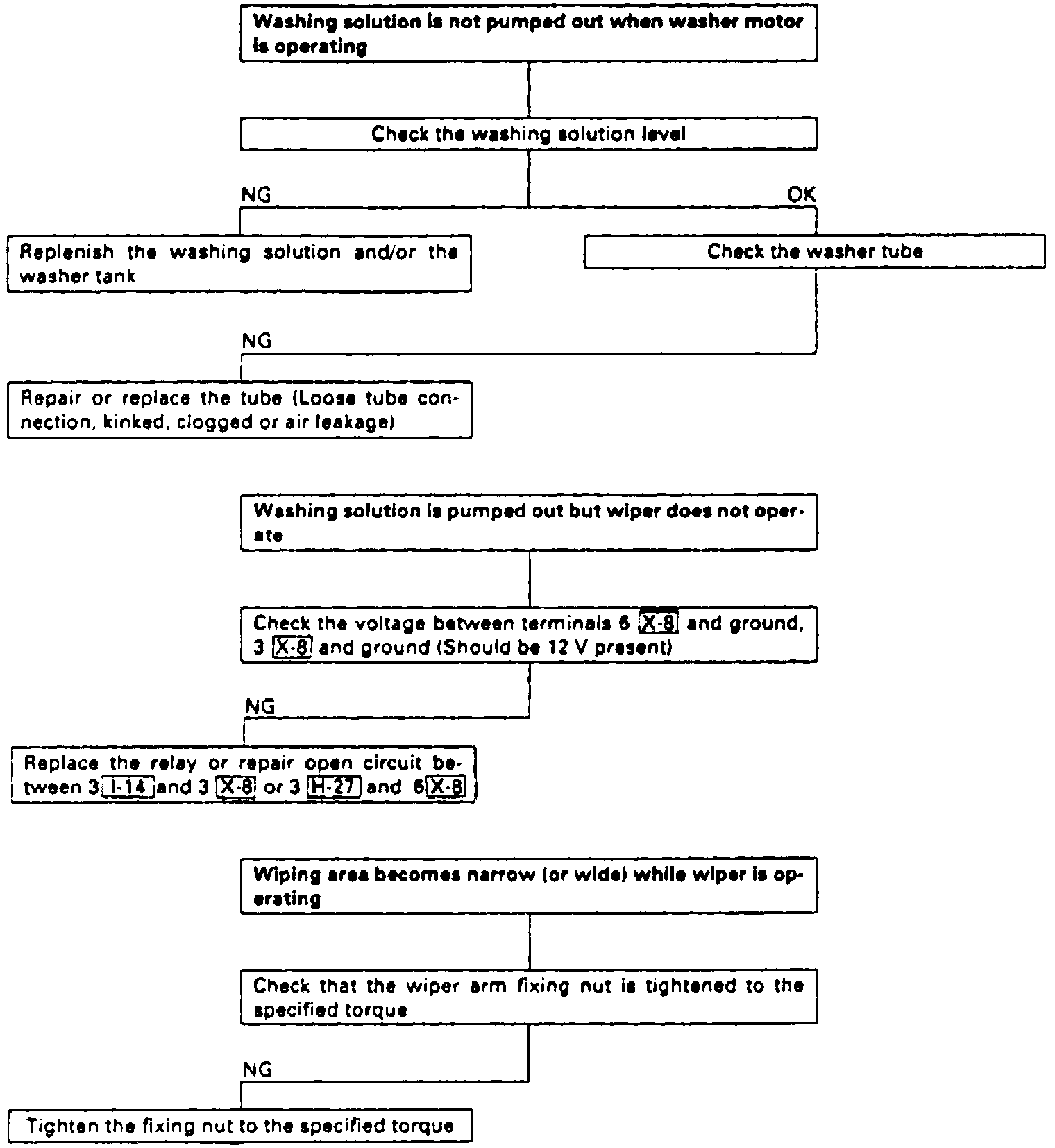

Fig. 21 Diagnostic Chart, Washing Solution Is Not Pumped Out When Washer Motor Is Operating:

Refer to Fig. 21 for wiper system diagnosis procedures.
