Transmission Temperature Sensor/Switch: Locations

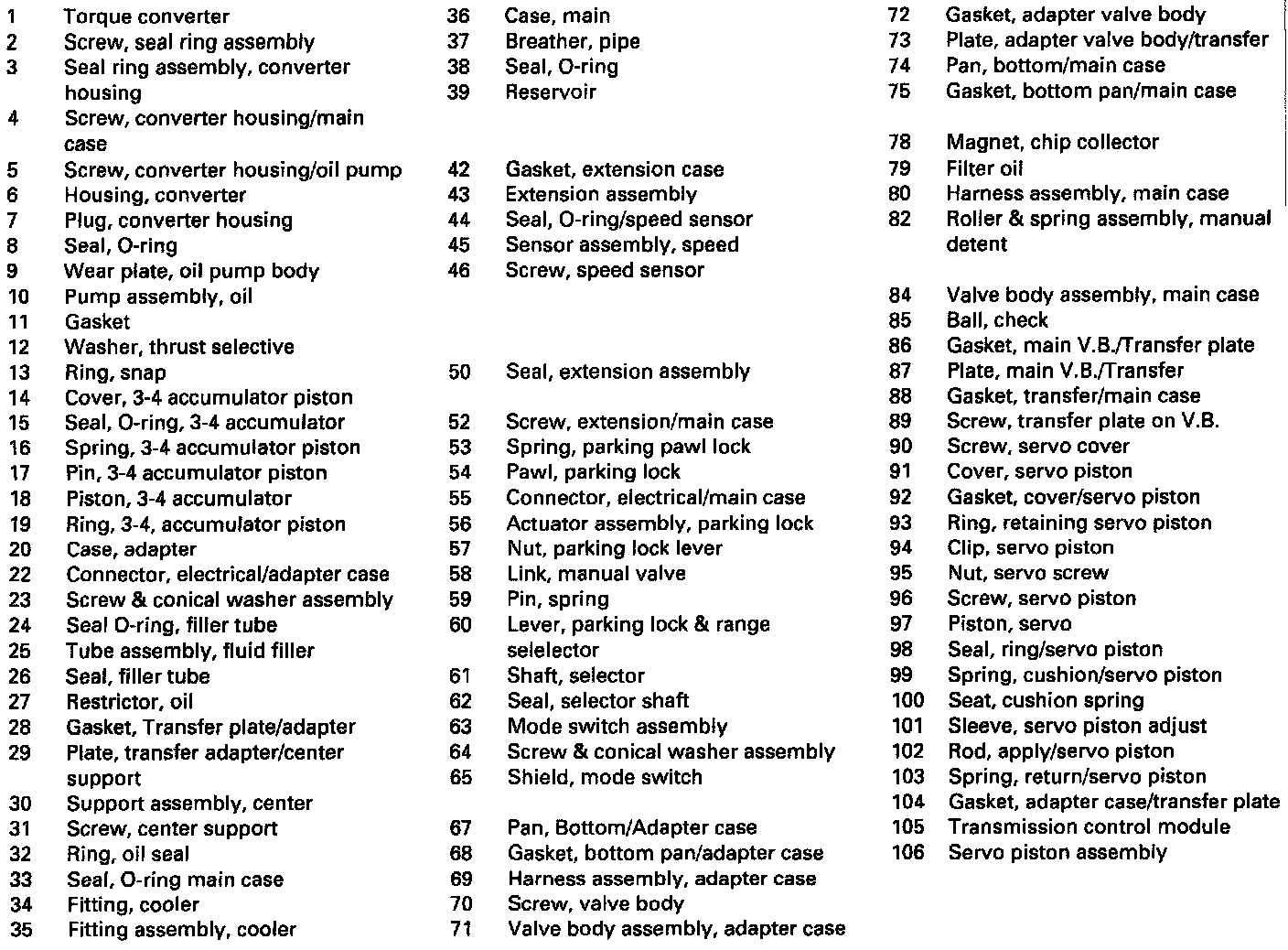

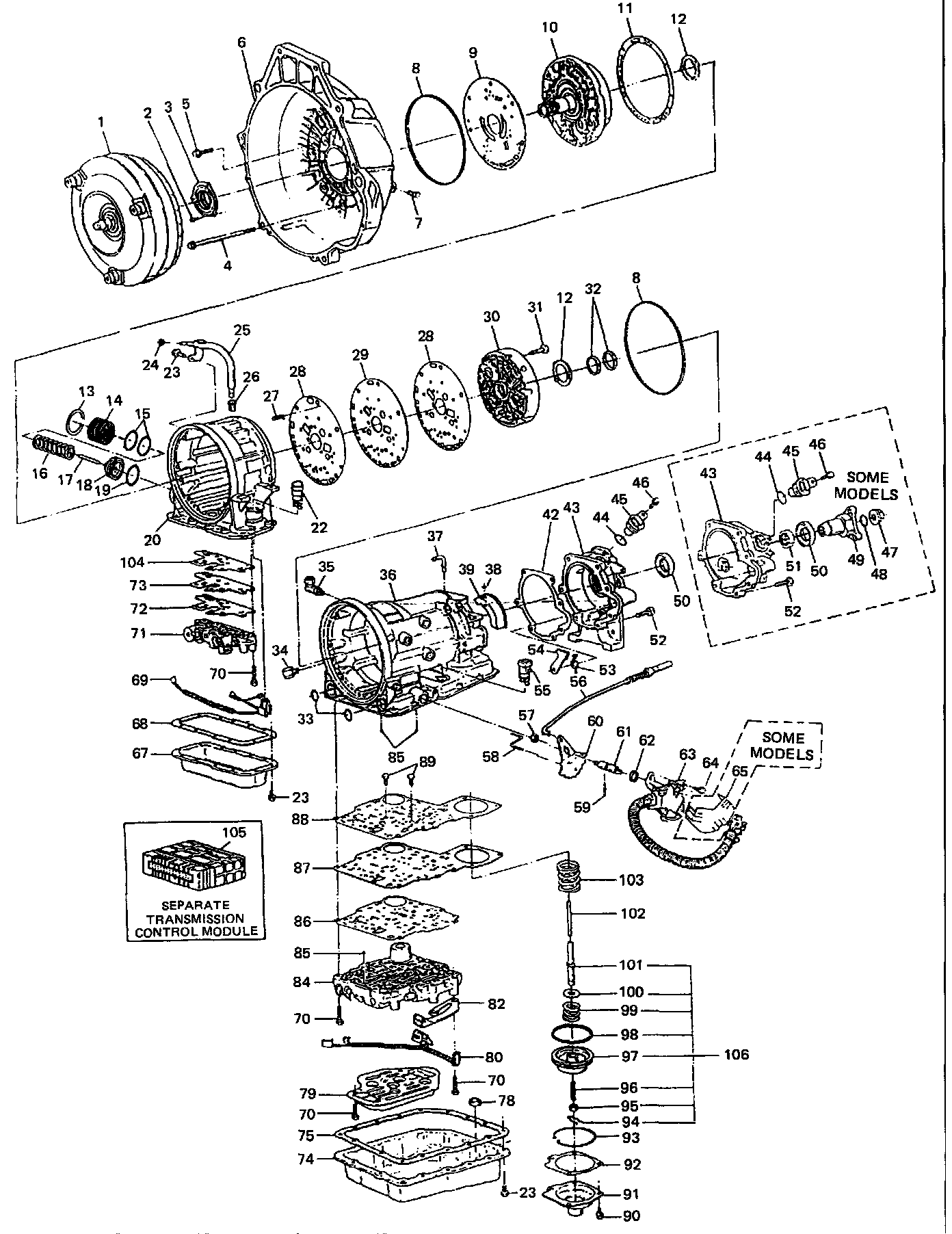

CASE AND ASSOCIATED PARTS (TRANSMISSION ADAPTER CASE.)

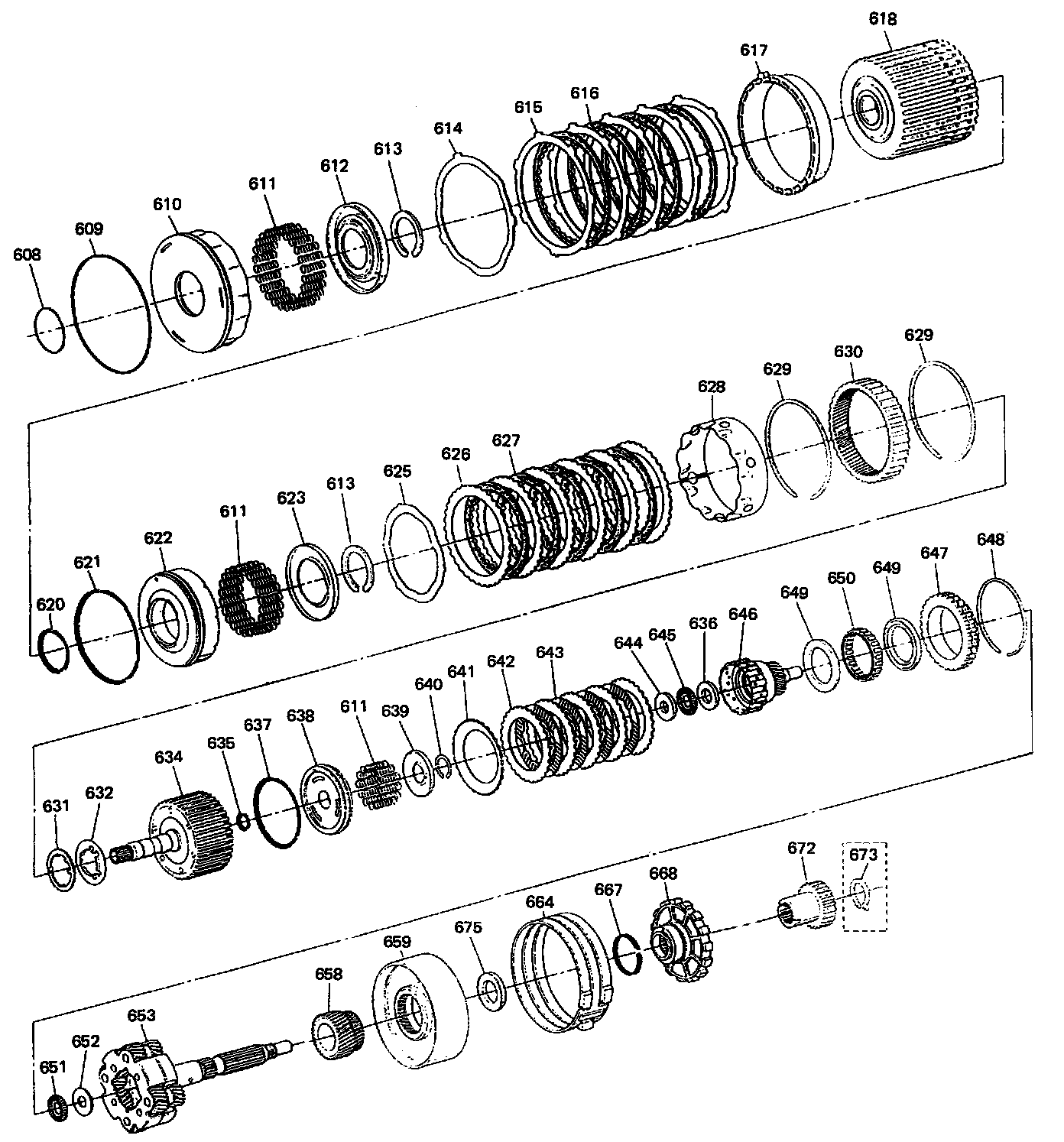

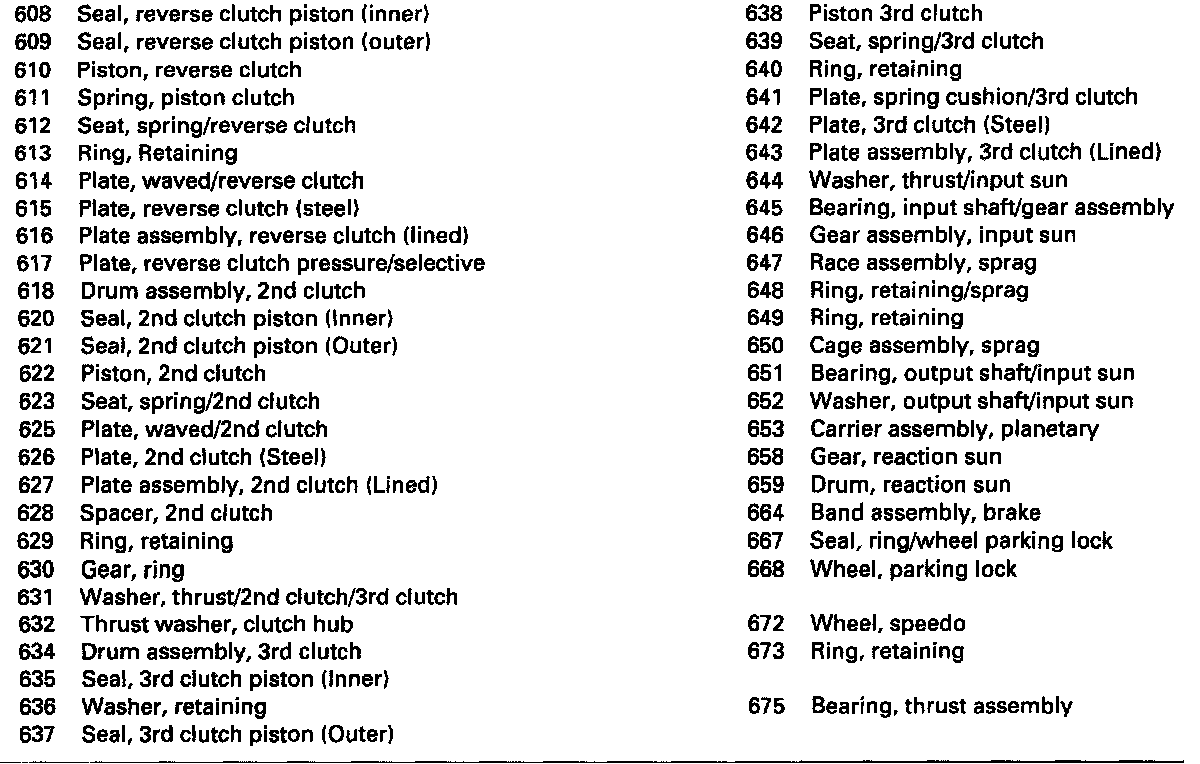

INTERNAL PARTS






CENTER SUPPORT
