Isuzu Truck
>>
1995
>>
Rodeo (2WD) V6-3165cc 3.2L SOHC (6VD1)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
95 1/2 Model
>>
Dash Fuse Box
>>
Dash Fuse Box
Dash Fuse Box

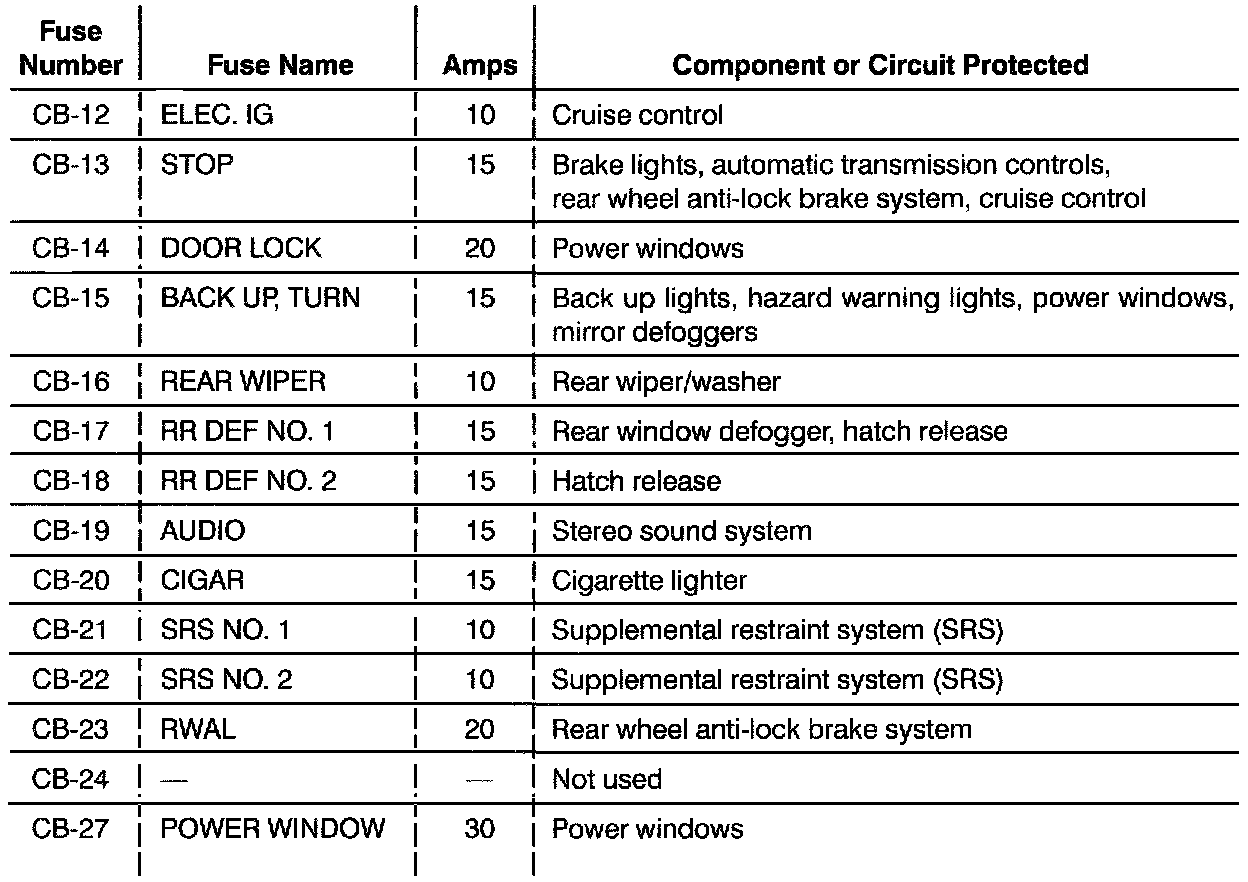

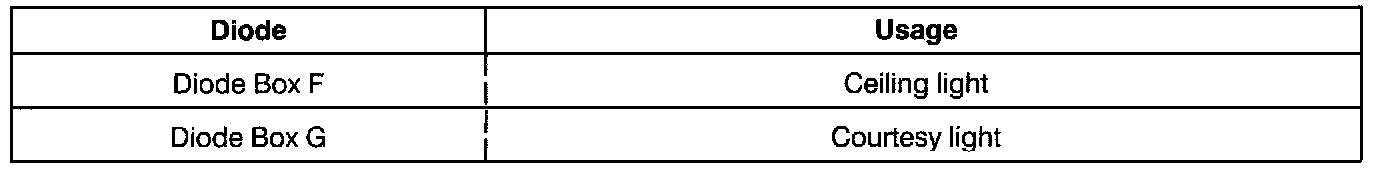

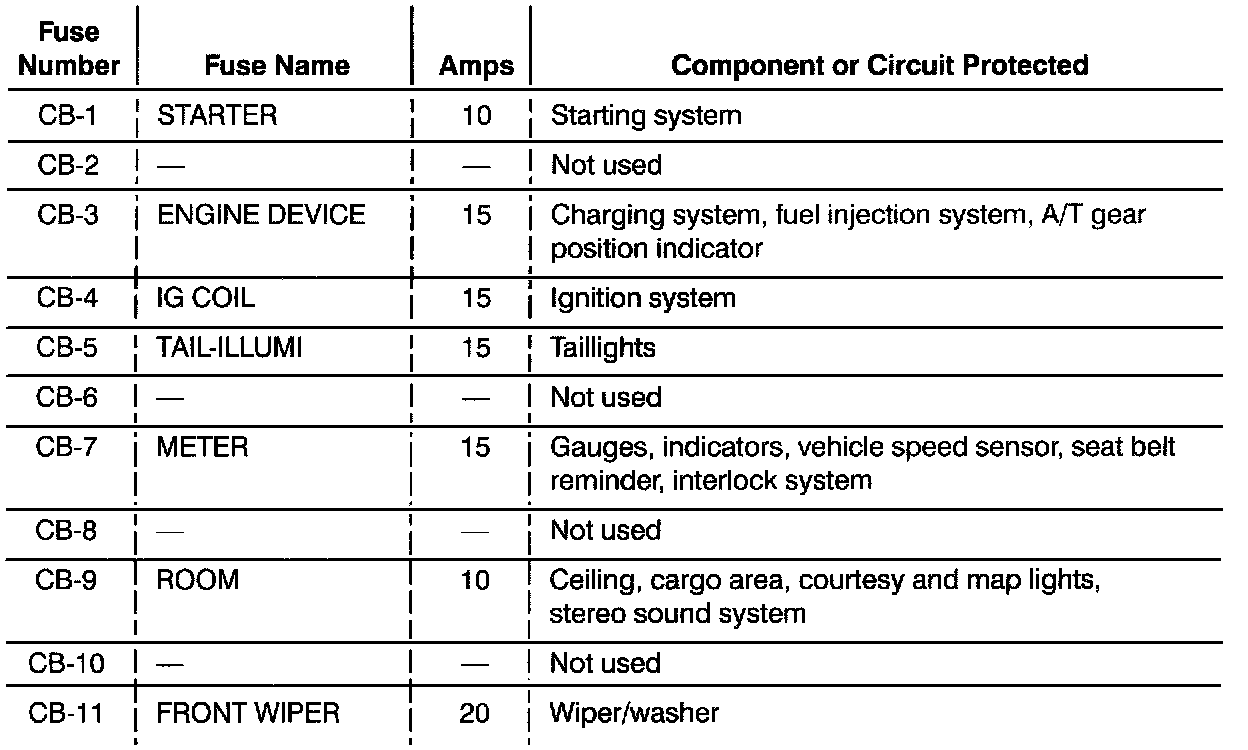

Fuse/Relay Information- Dash Fuse Box:
Fuse/Relay Information- Dash Fuse Box:
Fuse/Relay Information- Dash Fuse Box:
Fuse/Relay Information- Dash Fuse Box:
