95 1/2 Model

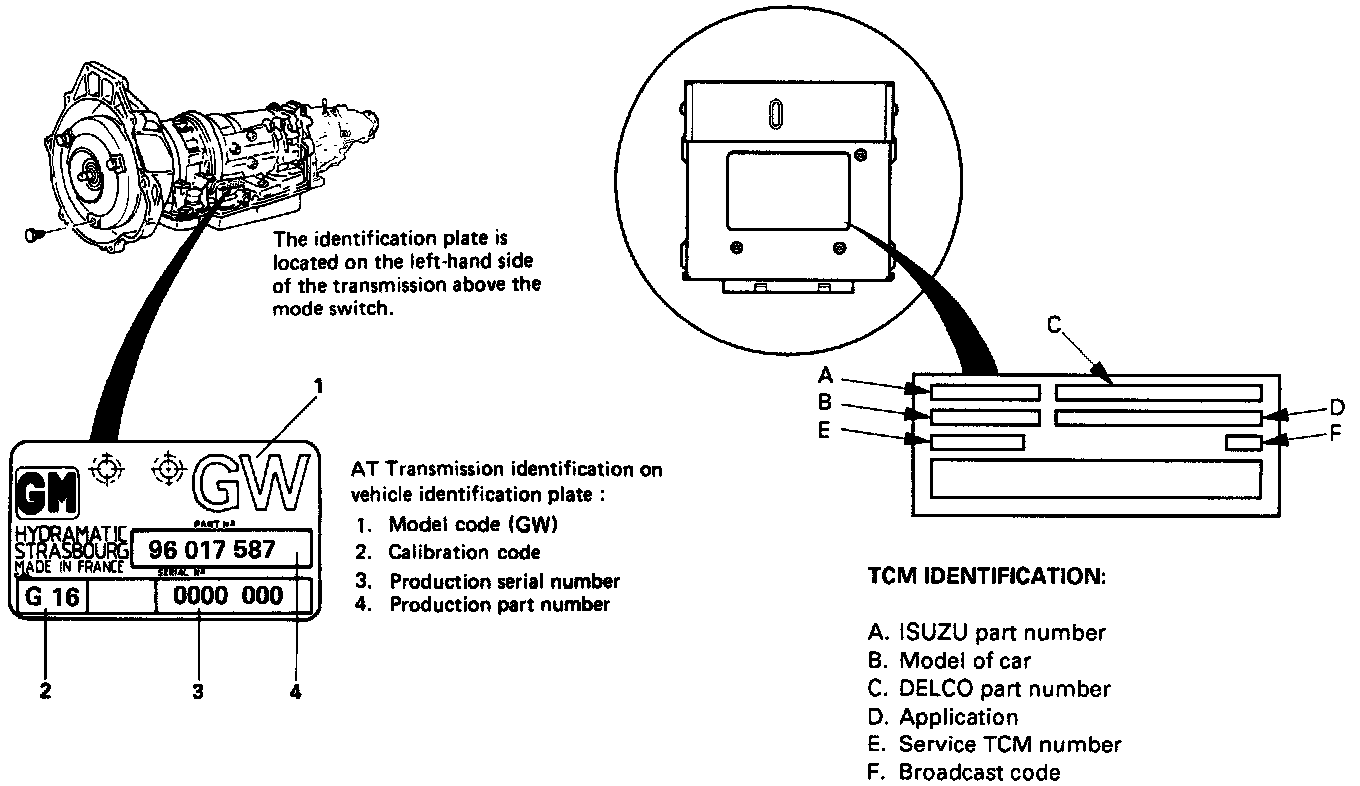

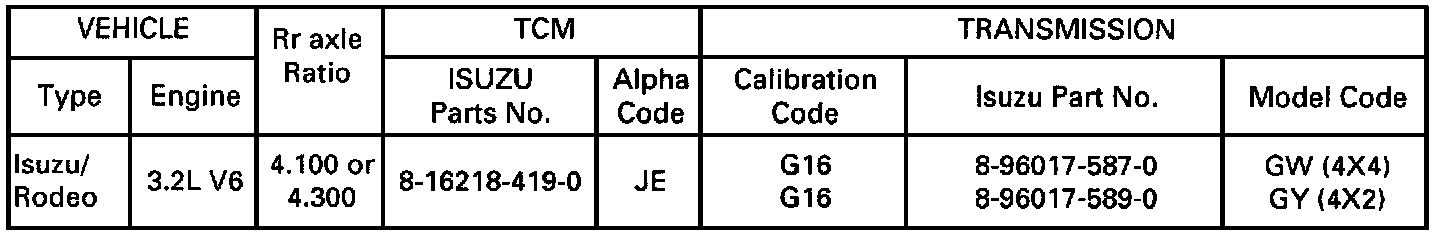

Chart 3 contains a list of all important information concerning rear axle ratio, Transmission Control Module (TCM), and Transmission identification.
