Ignition System: Service and Repair

REMOVAL
Preparation: Disconnect Battery Ground Cable.

1. Disconnect Spark Plug Wires.
2. Disconnect Wiring Connectors on Engine Control Module (ECM), Power Supply and Crank Angle Sensor.

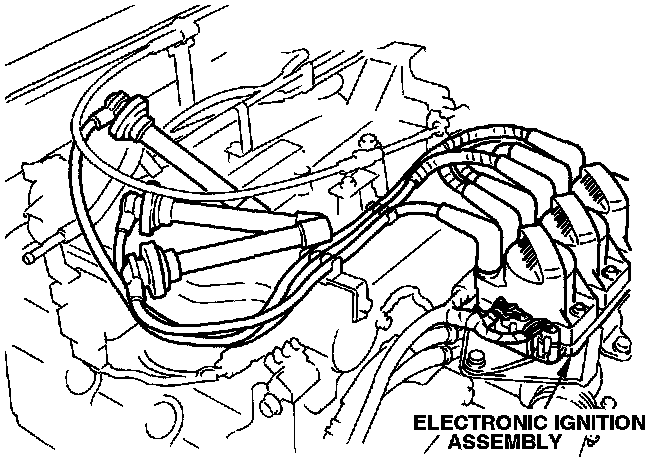

3. Remove three fixing bolts, then the Electronic Ignition (EI) Assembly.


INSTALLATION
To install, follow the removal steps in the reverse order.


3. Install Electronic Ignition Assembly. Tighten Fixing Bolts to Torque Specifications.

Torque: 19 N.m (14 lb.ft)

2. Connect Wiring Connectors to ECM, Power Supply and Crank Angle Sensor.
1. Connect Spark Plug Wires to correct Terminals.

Connect Battery Ground Cable.
