Ignition Cable: Service and Repair

REMOVAL
Preparation: Disconnect Battery Ground Cable.

1. Disconnect Spark Plug Wires.

INSTALLATION
1. Reconnect Spark Plug Wires.

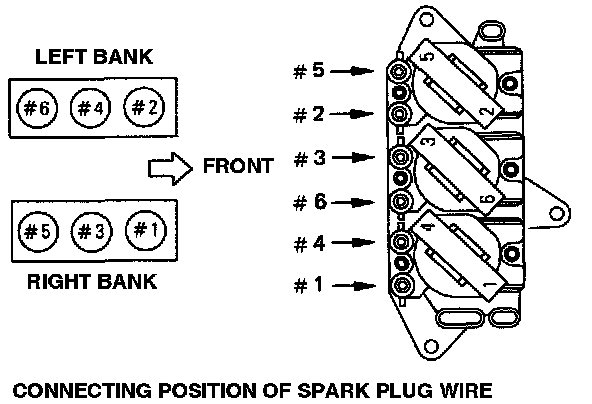

NOTE: Connect Ignition Coils and Spark Plugs with Spark Plug Wires respectively. Match each number (Cylinder No.) marked on the Ignition Coil with that on Spark Plug Wire, and connect each Spark Plug for the Cylinder.

Connect Battery Ground Cable.

CAUTION: Do not cross, twist or pull the Spark Plug Wires.
