TWC Converter

Removal
Preparation: Disconnect Battery Ground Cable.
Raise the Vehicle and support with suitable safety stands.

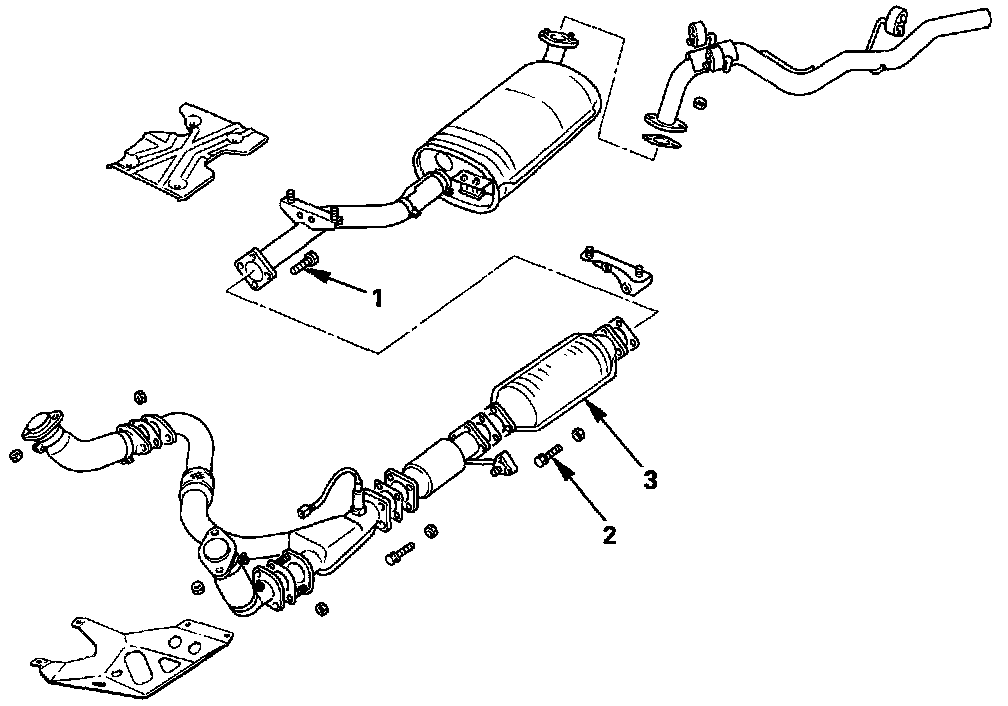

1. Remove the Three Way Catalytic Converter Fixing Bolts.
Disconnect Three Way Catalytic Converter at Exhaust Silencer.
2. Remove the Three Way Catalytic Converter Fixing Bolts and Nuts.
Disconnect Three Way Catalytic Converter at center Exhaust Pipe.
3. Remove the Three Way Catalytic Converter.

Installation
To install follow the removal steps in the reverse order.




NOTE:
- Be sure to install the new gaskets between Three Way Catalytic Converter and Exhaust Pipes with the stamped "U", "AF" mark facing upwards.
- Be sure to install the Three Way Catalytic Converter as shown.




- Tighten the fixing bolts to the specified torque.
