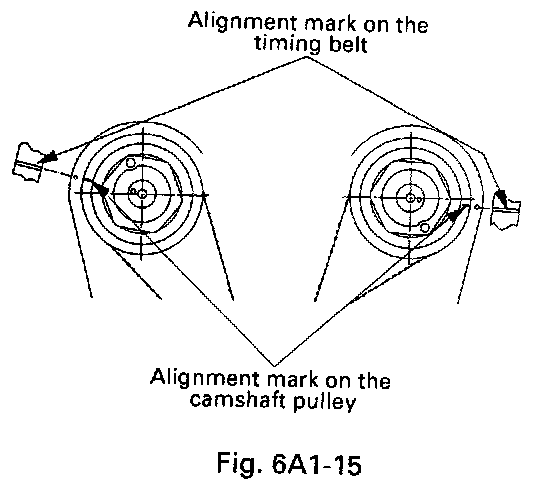

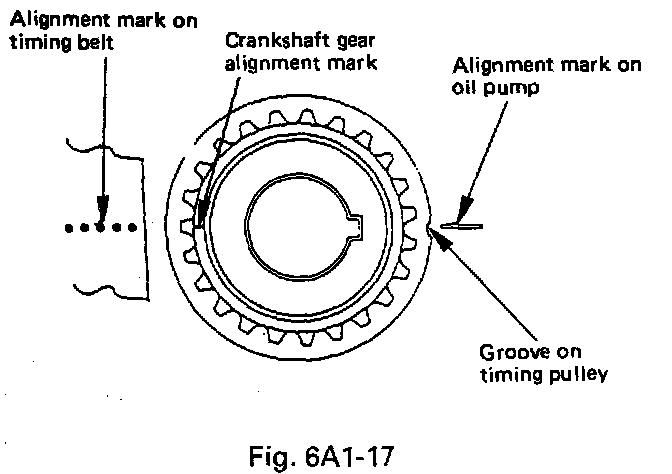

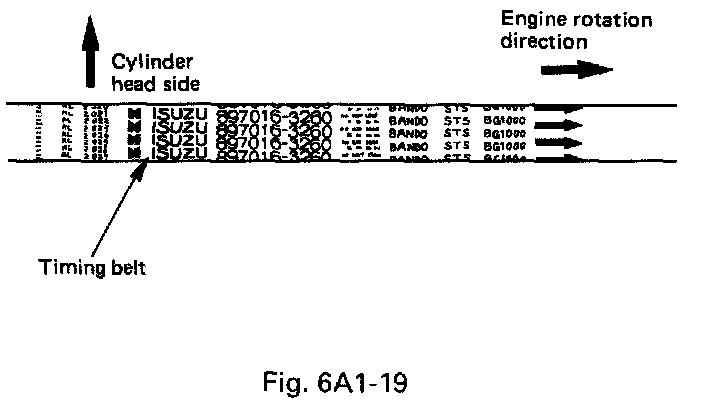

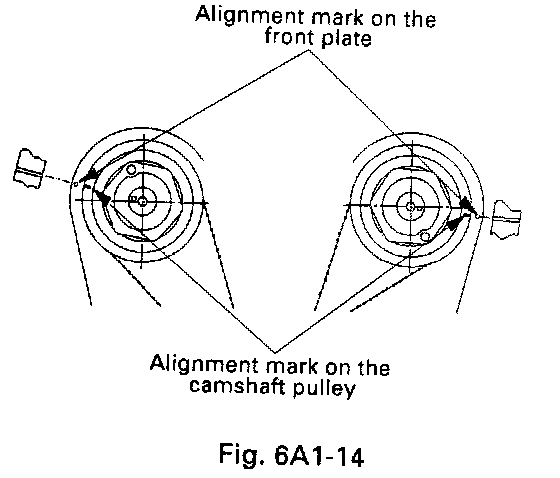

Timing Component Alignment Marks
>>
Locations
>>
95 1/2 Models
95 1/2 Models
CAUTION:
Incorrect removal or installation of the timing belt can result in damage to internal engine components.
For complete Timing Belt Removal and Installation information:
Service and Repair
